• Model NO.：YX65-300-600
• HS Code：84552290
• Production Capacity：10-15sets,Month

Basic Info.

Model NO. YX65-300-600 HS Code 84552290 Production Capacity 10-15sets/Month

Product Description

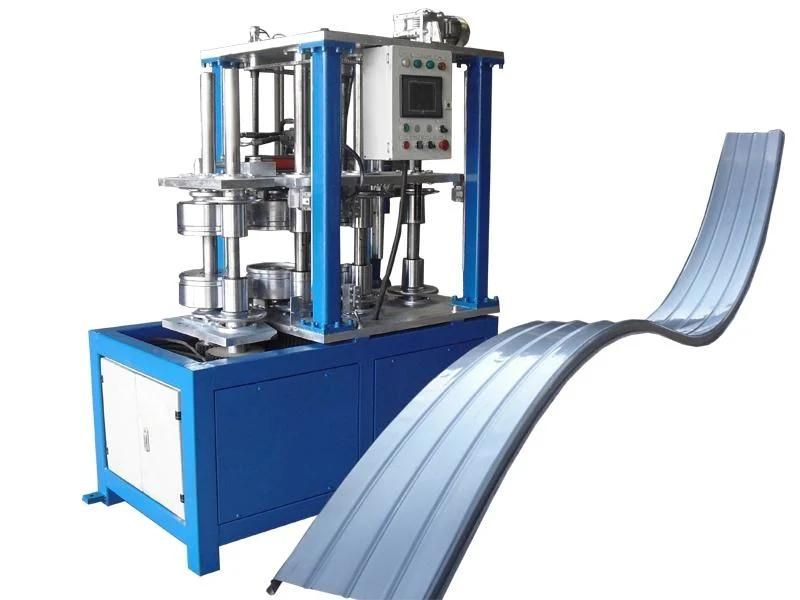

Automatic Adjustment Standing Seam Roof Curving Machine:

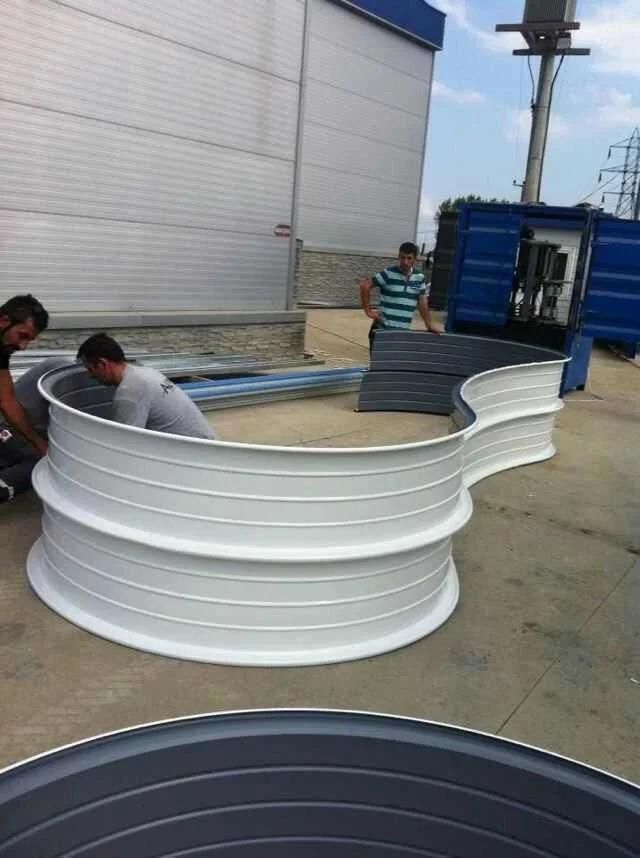

1. Bending roofing to Arc-Shaped, and"wave" shaped( Can bend with convex and concave shape for one pcs roofing );
2. Can automatically bending variable width of roofing from 300mm to 600mm;

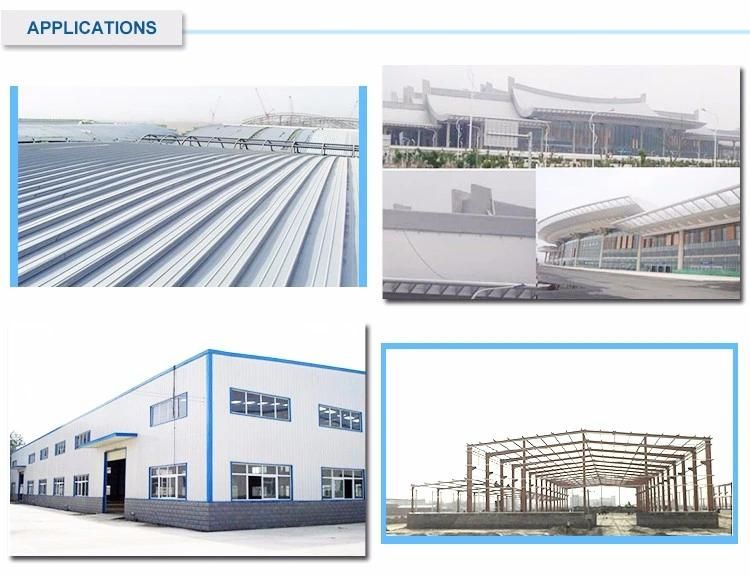

3. Widely use in the large project such as: Railway station, airport, gymnasium etc.
4. Can curving trapezoid roofing and straight roofing.

Item	Arch Shape Curving Machine or Standing Seam Roof
Dimension	1600*900*2000mm
Weight	1000KGS
Motor Power	4KW
Motor Power for Adjustment	0.75KW
Forming Steps	3steps
Curving Speed	8-16m/min
Voltage	380V/50HZ/3PH
Curved Thickness for Steel Roof	0.6-1.0mm
Curved Thickness for Aluminum Roof	0.6-1.2mm
Max. Width of Tapered Roofing to Curved	500mm
Min. Width of Tapered Roofing to Curved	250mm
Min. Curved Radius for Tapered Roofings	Convex Curved 4 meters, Concave Curved 12 meters
Min. Curved Radius for Steel Roofings	Convex Curved 8 meters, Concave Curved 10 meters
Min. Curved Radius for Aluminum Roofings	Convex Curved 2 meters, Concave Curved 6 meters
