Yx65-300-600 Steel Metal Roof Forming Curving Machine with Standing Seam
Xiamen Xinhonghua Machinery Co., Ltd.- Type：Rolling Machine
- Forging Forming Method：Tire Mold Forging
- Power Source：Electric
- Feature：Automation
- Certification：SGS
- Warranty：12 Months
Base Info
- Model NO.：YX65-300-600
- Customized：Customized
- Advantage：Work Flexible
- Condition：New
- Dimension：1600*900*2000mm
- Weight：1000kgs
- Motor Power：4kw
- Motor Power for Adjustment：0.75kw
- Forming Steps：4 Steps
- Volgate：380V,50Hz,3pH
- Curved Speed：8-16m,Min
- Curved Thickness of Steel Roof：0.6-1.0mm
- Curved Thickness of Aluminum：0.6-1.2mm
- After-Sales Service：Engineers Available to Machinery Overseas
- Transport Package：Standard Package for Export
- Specification：SGS
- Trademark：XHH
- Origin：Xiamen of China
- HS Code：84552290
- Production Capacity：15-20sets,Month
Description
Basic Info.
Model NO. YX65-300-600 Customized Customized Advantage Work Flexible Condition New Dimension 1600*900*2000mm Weight 1000kgs Motor Power 4kw Motor Power for Adjustment 0.75kw Forming Steps 4 Steps Volgate 380V/50Hz/3pH Curved Speed 8-16m/Min Curved Thickness of Steel Roof 0.6-1.0mm Curved Thickness of Aluminum 0.6-1.2mm After-Sales Service Engineers Available to Machinery Overseas Transport Package Standard Package for Export Specification SGS Trademark XHH Origin Xiamen of China HS Code 84552290 Production Capacity 15-20sets/MonthProduct Description
Detail information of YX65-300-600 Steel Curving Machine with Convex&Concave Curved are as follow:
Main Usage:
1. Bending roofing to "S" Shaped, and"W" shaped( Can bend with convex and concave shape for one pcs roofing );
2. Can automatically bending variable width of roofing from 300mm to 600mm;

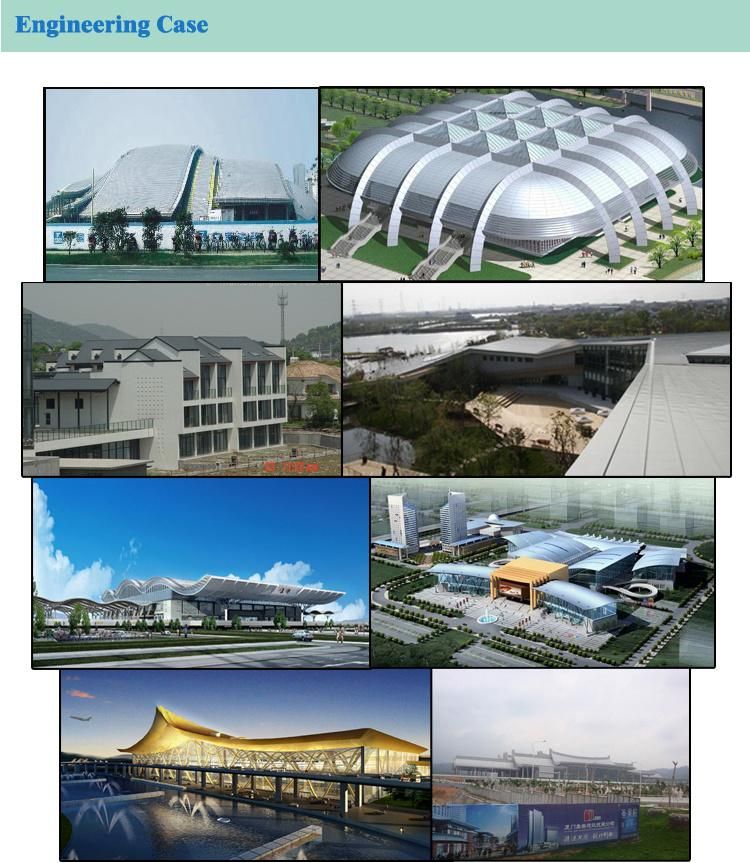

3.Widely use in the large project such as:railway station,airport , gymnasium etc.
4.Can curving trapezoid roofing and straight roofing.
Main Technic Data:
| Dimension | 1600*900*2000mm |
| Weight | 1000KGS |
| Motor Power | 4KW |
| Motor Power for Adjustment | 0.75KW |
| Forming Steps | 4steps |
| Curving Speed | 8-16m/min |
| Voltage | 380V/50HZ/3PH |
| Curved Thickness for Steel Roof | 0.6-0.8mm |
| Curved Thickness for Aluminum Roof | 0.6-1.0mm |
| Max. Width of Tapered Roofing to Curved | 600mm |
| Min. Width of Tapered Roofing to Curved | 3000mm |
| Min. Curved Radius for Tapered Roofings | Convex Curved 10 meters, Concave Curved 12 meters |
| Min. Curved Radius for Steel Roofings | Convex Curved 4 meters, Concave Curved 10 meters |
| Min. Curved Radius for Aluminum Roofings | Convex Curved 2 meters, Concave Curved 6 meters |
