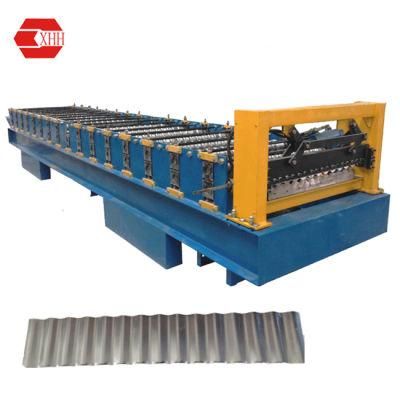

Standing Seam Metal Roofing Panel Machine with Roof Tile Forming
Xiamen Xinhonghua Machinery Co., Ltd.- Dimension：1700*1100*1200mm
- Weight：800kgs
- Motor Power：1.5kw
- Voltage：380V,50Hz,3pH
- Effective Width：220-530mm
- Material Width：290-600mm
Base Info
- Model NO.：KLS25-530
- Material Thickness：0.5-0.8mm
- After-Sales Service：Engineers Available to Sercive Machinery Overseas
- Delivery Time：Delivery Immediately After The Machine Is Assemble
- Forming Steps：6steps
- Transport Package：Nude in Container
- Specification：SGS
- Trademark：XHH
- Origin：Xiamen of China
- HS Code：84552290
- Production Capacity：20 Sets,Month
Description
Basic Info.
Model NO. KLS25-530 Material Thickness 0.5-0.8mm After-Sales Service Engineers Available to Sercive Machinery Overseas Delivery Time Delivery Immediately After The Machine Is Assemble Forming Steps 6steps Transport Package Nude in Container Specification SGS Trademark XHH Origin Xiamen of China HS Code 84552290 Production Capacity 20 Sets/MonthProduct Description
KLS25-220-530 Portable Standing Seam Metal Roofing Machines, Panel Forming Machine and Metal Roof Machine:

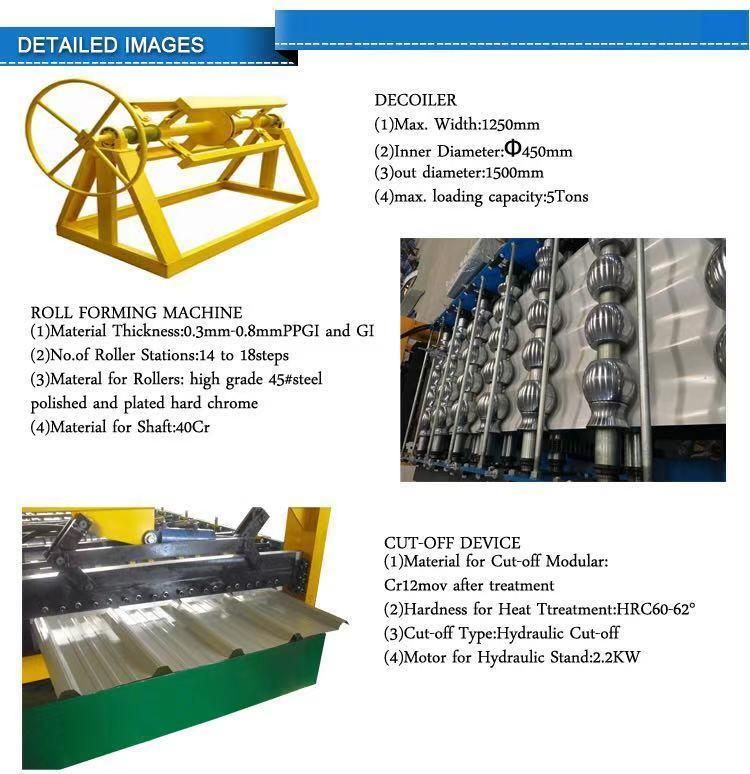

Main Accessories:
1. Main forming machine
2. 5 Tons Manual Uncoiler
3. Run Out Table.
Main Technic:
| 1. | Dimension | 1700*1100*1200mm |
| 2. | Weight | 800KGS |
| 3. | Motor Power | 1.5KW |
| 4. | Power for hydraulic forming cutter | 0.75KW |
| 5. | Voltage | 380V/50HZ/3PH |
| 6. | Forming Steps | 6 steps |
| 7. | Forming Speed | 6-8m/min |
| 8. | Thickness for Steel | 0.5-0.8mm |
| 9. | Height of Roofing | 25mm |
| 10. | Effective Width for Roofing | 220-530mm |
