• Size：3000*2000*2000
• Panel：Rockwool Panel
• Panel Thickness：100mm
• Heating System：Electric Heaters
• Power：28kw
• Track：Ground Track for Trolley Easy in,out
• Length of Track：5m Long
• Control Box：English Panel, Other Languages for Option
• Voltage：380V,3f, 220V,1f, 50Hz
• Other Size：as Customer Required
• Heating System Option：Gas,Diesel,Oil,Coal
• Drawings：Availabe
• User Manual：Available
• Installation Drawings：Available
• Transport Package：Standard Package for Sea Shipment
• Specification：rockwool panel with 100mm thickness
• Trademark：Hongyuan
• Origin：Shandong, China
• Production Capacity：100sets Per Month

Basic Info.

Size 3000*2000*2000 Panel Rockwool Panel Panel Thickness 100mm Heating System Electric Heaters Power 28kw Track Ground Track for Trolley Easy in/out Length of Track 5m Long Control Box English Panel, Other Languages for Option Voltage 380V/3f, 220V/1f, 50Hz Other Size as Customer Required Heating System Option Gas/Diesel/Oil/Coal Drawings Availabe User Manual Available Installation Drawings Available Transport Package Standard Package for Sea Shipment Specification rockwool panel with 100mm thickness Trademark Hongyuan Origin Shandong, China Production Capacity 100sets Per Month

Product Description

The powder coating process involves three basic steps:

1. Part preparation or the pre-treatment
2. The powder application
3. Curing

The powder coating process involves the following equipment:
1. Part preparation processes and equipment
2. powder coating spray gun(manually or automatically)
3. powder coating spray booth(manually or automatically)
4. powder coating curing oven(gas, diesel, or electric heating energy for option)
5. powder coating production line(manually or automatically)

Quick details of the powder coating gas oven for electrostatic powder coating curing
Cabin Outer size(D*W*H): 3200*2200*2200mm
Cabin Inner size(D*W*H): 3000*2000*2000mm
size for working area: 2000*1800*1800mm
heating power: electric
entry door: ONE end-door,  for in and out.

Advantages of the powder coating gas oven for electrostatic powder coating curing


Function of the powder coating gas oven for electrostatic powder coating curing
The powder coating curing oven is mainly for curing the object coated by powders, which is the most important and vital part during the powder coating process.

Features of the powder coating gas oven for electrostatic powder coating curing
1. Walls and roof comprised of galvanised steel plates with high-density Rockwool insulation at 100mm thick.
2. Our advanced design and high quality manufacturing process leads to remarkably low running costs (Especially for the gas consumption).
3. Powerful centrifugal fans and our patented high volume internal duct system allow highly efficient running and give an even heat throughout.
4. Our ovens are controlled by a famous brand components with a simple control panel. This allows accurate cure timing and helps improve fuel efficiency.
5. High quality burners - tried and tested over many years
6. Our manufacturing plant produces heavy-duty ovens, designed and built to last.
7. Flat packed for easy transportation and installation.
8. Each part of oven is checked before shipping.
9. Fully guaranteed &Service contracts available

Parameters of the powder coating gas oven for electrostatic powder coating curing

Model	HY-PO3000E1
Outer cabin size(mm) D*W*H	3200*2200*2200
Inner Cabin size(mm) D*W*H	3000*2000*2000
Cabin system	100mm(75MM) thickness rockwool sandwich panel.
Entry/off door	ONE end-door,  for in and out.
Power supply	electricity
Voltage	110V/220V/380V/450V
Frequency	50-60Hz
Warm-up time	15 min. (180-220° C)
Temp Homogeneity	< ± 3°C if 185°C
Temperature stability	< ± 1°C
Temperature max.	230° C
Air circulation	ELECTRIC HEATERS
Warranty	12 months
Transport	By sea
Optional	Size could be custom-made.
Transfer trolley	excluded
Related products	Powder coating gun, powder coating machine, powder coating spray booth, powder coating plant, powder coating spray line

Related products of our powder coating gas oven for electrostatic powder coating curing
powder coating spray booth, powder coating spray machine, powder coating plant, powder coating spray production line, powder coating spray gun and so on.

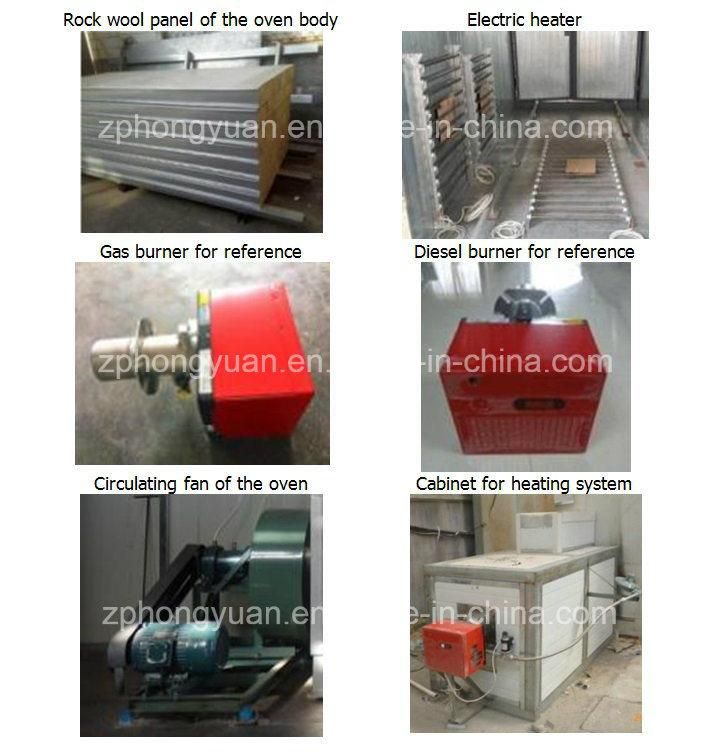

Parts show of powder coating gas oven for electrostatic powder coating curing

Production area and equipment for powder coating gas oven for electrostatic powder coating curing


Package Show of powder coating gas oven for electrostatic powder coating curing

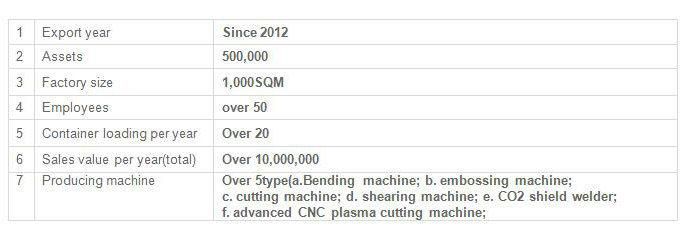

Certificate of our product and company

Our Team is serving you at any time


send us inquiry for powder coating gas oven for electrostatic powder coating curing
