• Model NO.：GJH 6060
• Warranty：12 Months
• Customized：Customized
• Condition：New
• Control System：Nc Studio, Syntec
• Guild Rail：Hiwin
• Drive Mode：Yaskawa Servo
• Ball Screw：Tbi
• Transport Package：Standard Exported Plywood Case
• Specification：CE
• Trademark：DONGTONG
• Origin：Shandong China
• HS Code：84609090
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. GJH 6060 Warranty 12 Months Customized Customized Condition New Control System Nc Studio, Syntec Guild Rail Hiwin Drive Mode Yaskawa Servo Ball Screw Tbi Transport Package Standard Exported Plywood Case Specification CE Trademark DONGTONG Origin Shandong China HS Code 84609090 Production Capacity 50 Sets Per Month

Product Description

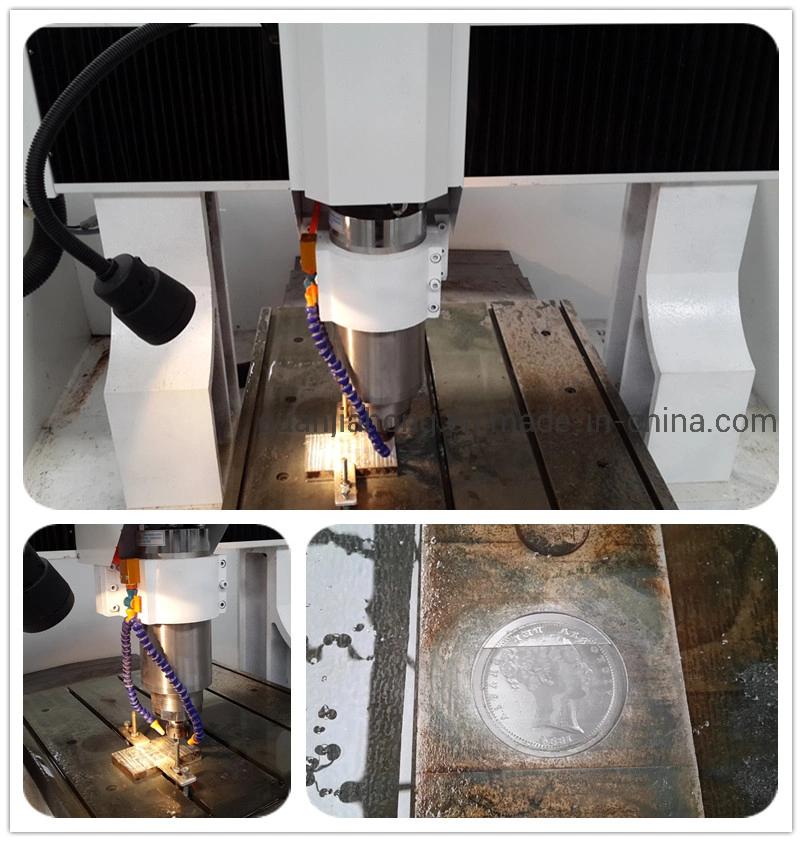

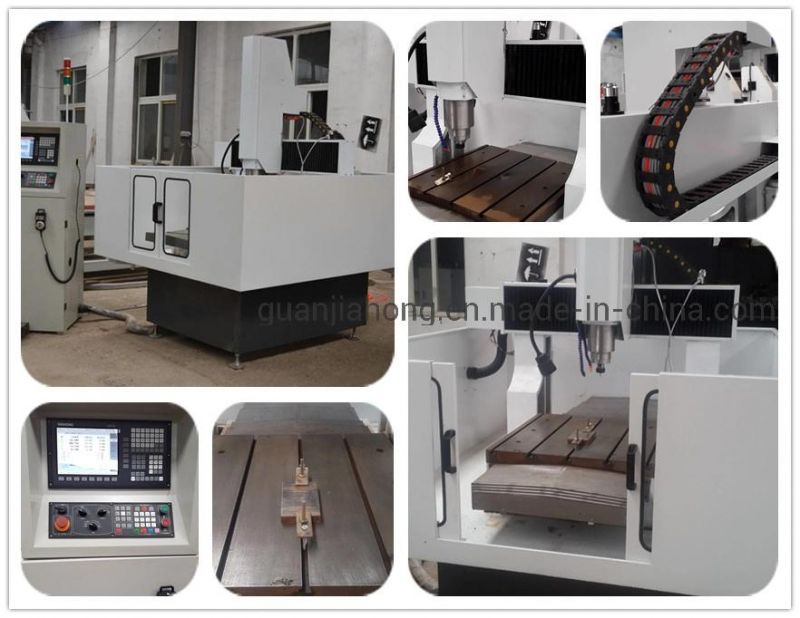

6060 NC studio, YASKAWA servo, aluminum, copper, iron, metal mold engraving machine CNC Router from professional cnc router machine manufactrurer.



1.  High working speed: above 10mm/min;
2.  High quality parts: Imported ball screw and liner rail; Advantage servo
     system and high power variable frequency spindle motor;
3.  Professional design: Easy operation, high speed and big power;
4.  Software compatibility: Type3, artcam, castmate, Wentai, JDpaint and ect.
5.  Advance performance: Have breakpoint continued carving, restore
     power, processing time prediction and real humanized design.
6.  Good stability: Whole steel structure for table make it be strength and
     non-deformation..

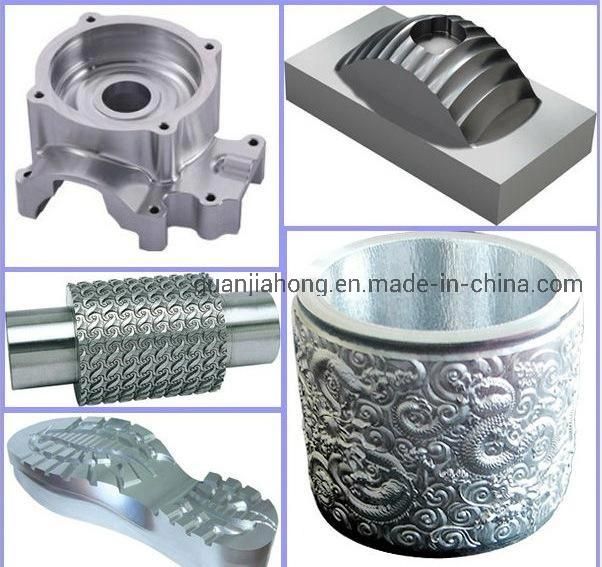

Carbon steel, stainless steel, copper, aluminum and other metal materials; Woodiness material, aluminous model board, plastic board, PVC, acrylic, double color boards, density board, crystal and etc..
Carving type: Relief, graven images, valuable.such handiwork, carving, cutting, milling bottom, etc.

NO	Performance	Performance	Parameter
1	Working area	X axis	600mm
		Y axis	600mm
		Z axis	300mm
2	Table size		650mm*650mm
3	Accuracy	Working accuracy	0.008mm
		Re-positioning accuracy	0.005mm
4	Drive	X axis	Ball screw
		Y axis	Ball screw
		Z axis	Ball screw
5	Speed	Max travel speed	8000mm/min
		Max engraving speed	5000mm/min
6	Spindle(water-cooling)	Spindle power	5.5KW (as your require)
		Spindle speed	0_24000r/min
7	Running mode		servo
8	Working voltage		AC220V/50HZ
9	Command code		G code
10	Operating system		NC studio
11	Table		Cast iron T slot
12	Guild rail		Hiwin
13	Auto lubrication		YES
14	Dustproof		X Y Z axis
15	Machine weight		1200KGS
16	Machine size		1600*1500*2000mm

Parts of machine can be customized as your requirement:
1. Motor (stepper or servo motor)
2. Spindle ( air-cooling or water-cooling spindle)
3. Guide rail (round guide rail or square guide rail)
4. The table of the machine
     (Vacuum table, T-slot table,  normal table, table moving)
5. Other parts













Technical support:
1. Technical support by phone, email or MSN/ Skype around the clock
2. Friendly English version manual.
3. Engineer available to service machinery overseas. but the buyer should pay the fee.

After-sale & guarantee service:
1. Under normal usage, 1 year for the whole machine and 6 months for spindle
2. Normal machine is properly adjusted before dispatch.
3. Free training advice towards our machine in ourfactory.
4. Free suggestion and consulting, technical support and service by email/fax/tel and
   tel and lifetime technical support.

If you have specific requirement for metal mold cnc router, customization is available.
