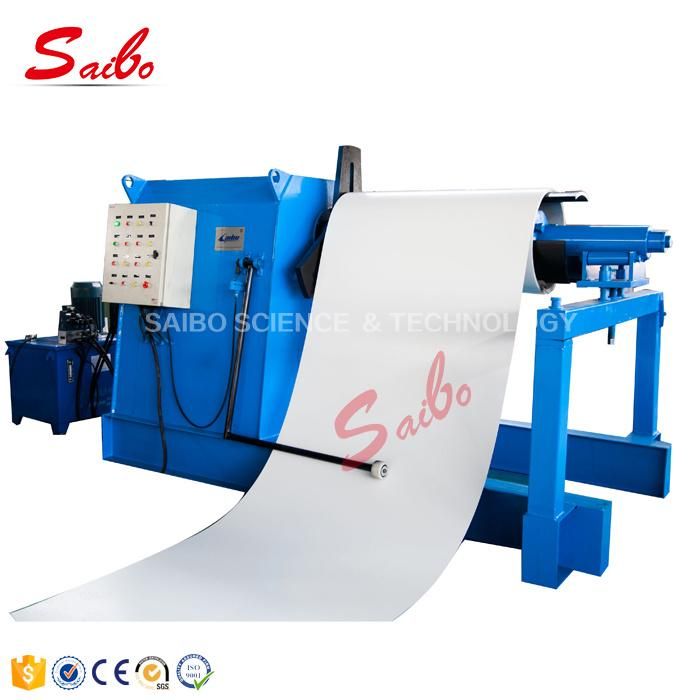

15 Ton Hydraulic Automatic Uncoiler
Zhangjiagang City Saibo Science & Technology Co., Ltd.- Type：Hydraulic Machine
- Forging Forming Method：Mold Forging
- Power Source：Hydraulic Pressure
- Feature：Automation
- Certification：ISO9001, CE
- Warranty：12 Months
Base Info
- Model NO.：15tons
- Customized：Customized
- Advantage：Work Flexible
- Condition：New
- Capacity：15tons
- Expand Range：460-520mm
- Power of Decoiler：11kw
- Hydraulic Power：5.5kw
- Transport Package：Suitable for Sea Packing
- Specification：CE, SGS
- Trademark：SAIBO
- Origin：Jiangsu China
- HS Code：84552210
- Production Capacity：300sets,Year
Description
Basic Info.
Model NO. 15tons Customized Customized Advantage Work Flexible Condition New Capacity 15tons Expand Range 460-520mm Power of Decoiler 11kw Hydraulic Power 5.5kw Transport Package Suitable for Sea Packing Specification CE, SGS Trademark SAIBO Origin Jiangsu China HS Code 84552210 Production Capacity 300sets/YearProduct Description
15 Ton Hydraulic Automatic UncoilerMain technical data:
1. Single head to put the coil and hydraulic tensioning gear
2. Structural style of the decoiler: steeliness structure, hydraulic expansion & shrank
3. Spec of coil: Φ508×1300mm
4. Range: Φ460~Φ520mm
5. Oil pump: Φ160×90mm
6. Braking type: pressurized oil braking
7. Max carrying capacity: 15 Tons
8. Power of decoiler: 5.5KW
9. Hydraulic up and down: 12Mpa
| 1 | Total power | Motor power-11kw Hydraulic power-5.5kw |
| 2 | Coil weight (Max) | 15000kg |
| 3 | Inner diameter | 470-550mm |
| 4 | Maximal out diameter | 1600mm |
| 5 | Oil cylinder dia | 120mm |
| 6 | Coil width (Max) | 1250mm |
| 7 | Working speed | 0-15m/min adjustable |
| 8 | Main motor power | 7.5KW AC motor |
| 9 | Hydraulic power | 5.5kw |
| 10 | Coil car weight (Max) | 10000kg |
