Xiamen Standing Seam Rolling Forming Machine with Adjustment
Xiamen Xinhonghua Machinery Co., Ltd.- Roller Material：45# Steel
- Transport Package：Standard Package for Export
- Specification：2000*1100*1200mm
- Trademark：XHH
- Origin：Xiamen
Base Info
- Model NO.：KLS38-220-530
- HS Code：84552290
- Production Capacity：20sets,Month
Description
Basic Info.
Model NO. KLS38-220-530 HS Code 84552290 Production Capacity 20sets/MonthProduct Description
Xiamen Standing Seam Rolling Forming Machine with Adjustment:Tech Parameter:
| 1. | Item | Standing Seam Metal Roof Machiery |
| 2. | Size | 2000*1100*1200mm |
| 3. | Weight | 1500KGS |
| 4. | Voltage | 380V/50HZ/3PH |
| 5. | Motor Power | 2.2KW |
| 6. | Power for Hydraulic | 0.75KW |
| 7. | Forming Steps | 6 steps |
| 8. | Material Thickness | 0.5-0.9mm |

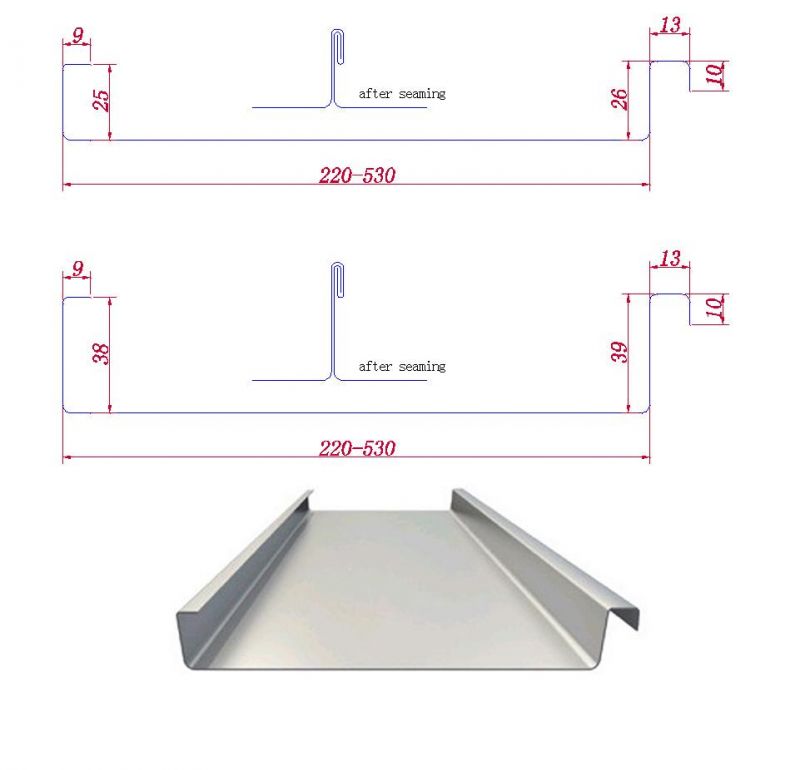

| 9. | Standing Height of Roofing | 38mm |
| 10. | Thickness for common use and testing machine | 0.6mm, 0.7mm |
| 11. | Effective Width of Roofing | 220-530mm |
| 12. | Material Width | 316-626mm |
Main Accessories:
(1). Main Portable Roll Forming Machines;
(2). 3 Tons Manual Uncoiler;
(3). PLC Computer Controlling System;
(4). Hydraulic Forming Cutter;
(5). Device for adjusting models;
(6). Run Out Table (3 units);
(7). Protective Cover;
(8). Operation Manual;
Usage: Producing standing seam roofing panels.

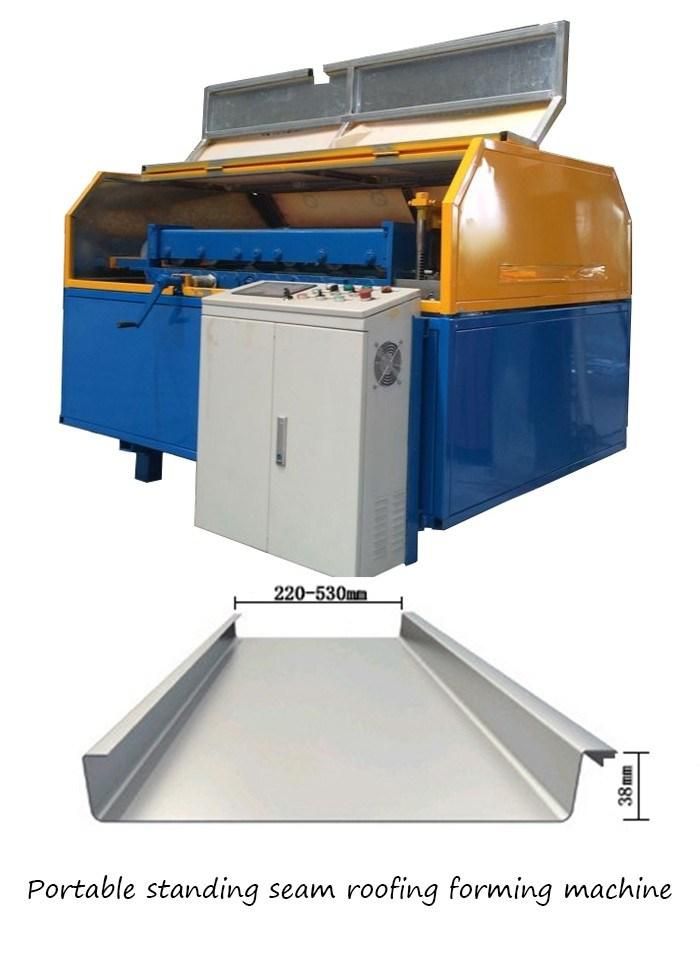

2. Pictures of portable standing seam machine
Factory show:
