• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• Name：Steel Stud Roll Forming Machine
• Color：blue Ang Yellow
• Transport Package：No Packing
• Trademark：SAIBO
• Origin：Jiangsu, China
• HS Code：84552210
• Production Capacity：300sets,Year

1
Roll Forming
 YX10-972
Coil width
 According the profile3

Rolling Speed

0-15m/min

4Roller stations

About 15 station

5

Rolling Thickness

0.8-1.2mm aluminium alloy steel6

Control System

PLC7

Un Coiler

Manual un-coiler8

Roller Stations

8 stations+1 station of film system9

Roller Material

45 forge steel, surface with chrome10

Shaft Material and DIA

¢56mm, material is 45# forge steel

11

Maim Motor Power

5.5KW12

Hydraulic Station Power

4KW

13

Hydraulic Pressure12Mpa14Punching

Pre-punching

15Cutting type

Hydraulic cutting, 4kw

16

Material Of CuttingCr12, quenching 58-62ºC

17

Tolerance3m+-1.5mm

18

Electric Source

380V, 50HZ,3 phase

According to customer's require

19

Way Of DriveBy chain, 1.0inch,single line

20

Color Of The MachineYellow and blue

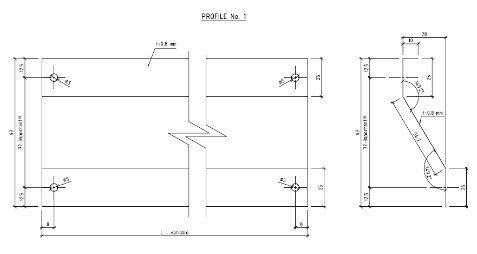

3. Profile drawing

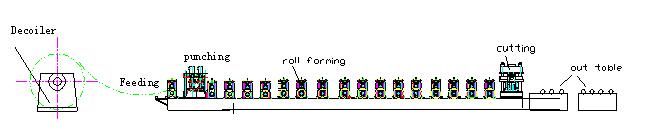

4. The Chart of Process Flow

5. Why choose us ?

Advanced machinery, well trained workers.
More than 12 years experience in roll forming machine Ad industry.
Unique designed, good quality, competitive price.
Full range of roll forming machine solution.

6. Product Application

This type of roof sheet has advantage inclouding beautiful, classical appearance and grace taste.
It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate.
