• Model NO.：PU panel
• Trademark：SAIBO
• Origin：China
• HS Code：84552210
• Production Capacity：20set,Year

Basic Info.

Model NO. PU panel Trademark SAIBO Origin China HS Code 84552210 Production Capacity 20set/Year

Product Description

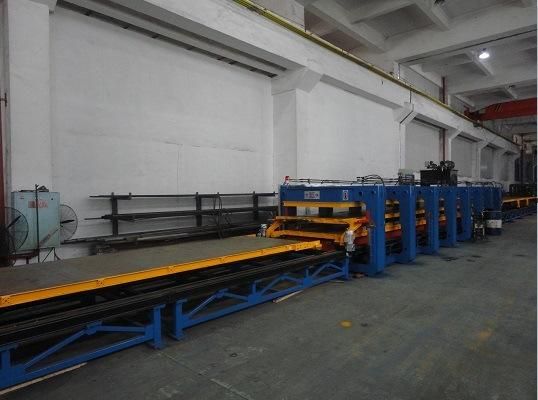

PU and Rockwool Sandwich Panel Machine
This line can produce PU and rocalwool two type profile.
Speed of product line: 0-8.6m/min( frequency conversion to adjust speed)
The dimension the product line: About 120 m*18m*7m
Total power of the product line: About 400 KW

A: PU wall panel
1. Producing mode: Continual automatic manufacture
2. Material size: Thickness: 0.35---0.7mm, intensity: Max G250Mpa color steel sheet, aluminum sheet.
3. Sheet width: Max 1200mm
4. Sandwich panel sheet material: Metal plate for up and down, two layers
5. Power: 25KW
6. Total power: 40KW
7. Roll forming machine structure: Use two layers roll forming machine, matched with PU sandwich machine
8. Combined machine structure: Use up, down, left, right, four sides strap to fix position
9. Foam system: Adopt continuous automatic foaming. The foaming is can't adjust.
10. Foam thickness: Confirm some specifications between 50-120mm
11. Working speed: 6-8m/min
12. Control way: All use PLC control
13. Precision: ± 2.0 mm/10 m
14. Weight of the equipment: About 25000kg
15. Length of the equipment: About 68000mm

B. PU roofing roll forming machine
1. Manufacture mode: Discontinuous automatic manufacture
2. Material: Thickness: 0.35----0.7mm, intensity: Max G250Mpa color steel sheet, aluminum sheet.
3. Sheet width: ≤ 1250 mm
4. Material: The down layer is made of metal plate, up layer is made of PVC film
5. Power: 25KW
6. Total power: 40KW
7. Roll forming machine structure: Single layer roll forming machine, separated with PU combined machine
8. Combined machine structure: Use up and down strap to fix the position
9. Foam system:
10. Sparking thickness: Confirm some specifications between 25-80mm
11. Working speed: 6-8m/min
12. Control way: All use PLC control
13. Weight of the equipment: About 20000kg
14. Length of the equipment: About 9000mm for roll forming machine(according to different plate)
PU combined machine: About 30000mm
