Adjustable C Channel High Speed Roll Forming Machine
Zhangjiagang City Saibo Science & Technology Co., Ltd.- Type：Rolling Machine
- Forging Forming Method：Roll Forming
- Power Source：Electric
- Feature：High Efficiency
- Certification：ISO9001, CE
- Warranty：12 Months
Base Info
- Model NO.：C
- Customized：Customized
- Advantage：Easy to Maintenance
- Condition：New

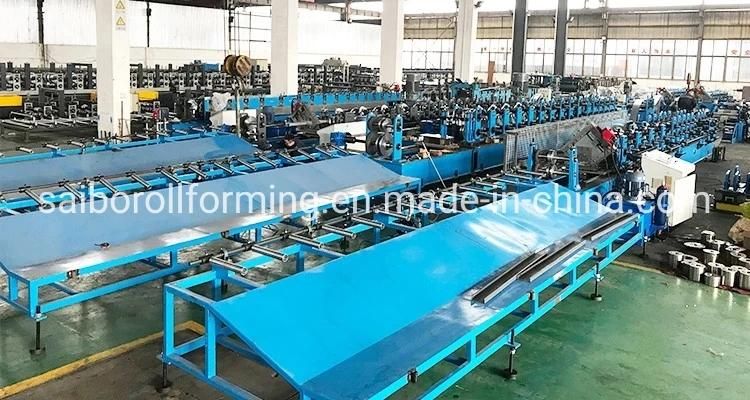

- Name：Steel Stud Roll Forming Machine
- Steel Thickness：2mm
- Productivity：About 40-50m,Min

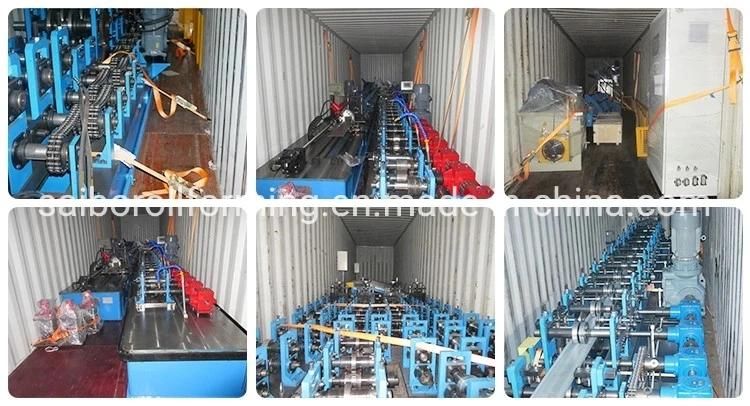

- Transport Package：No Packing
- Trademark：SAIBO
- Origin：Jiangsu, China
- HS Code：84552210
- Production Capacity：300sets,Year
Description
2. Machine Detailed Parameters
Roll Forming
Machine structure
Motor power-18.5kw
Hydraulic power-11kw
About 14 stations + one station for rectify (according the final design)
Productivity
Drive system
Diameter of shaft
Servo motor
Voltage
Color Of The Machine
Yellow and blue
Deliver Time
Terms Of Payment

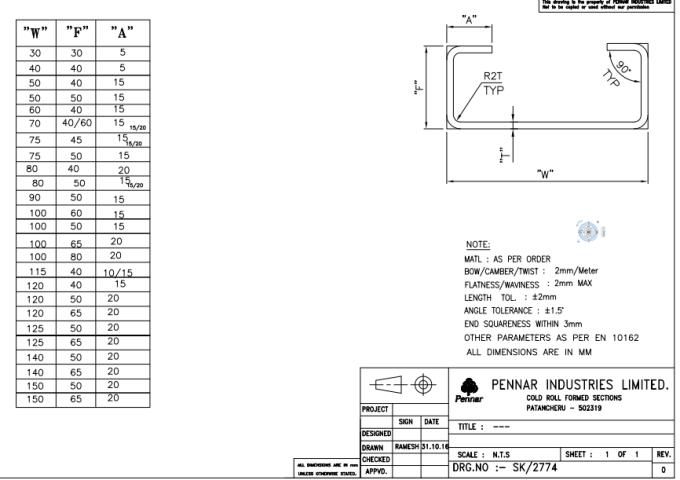

3. Profile drawing

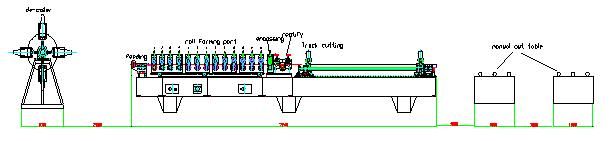

4. The Chart of Process Flow
5. Specification of Components
(1) 5T hydraulic decoiler
- Steel coil width: 550 mm;
- Internal diameter of coil: variable, from380 mm to 520 mm
- Maximal out diameter:1200mm
- Maximum coil weight: 5000 Kg;
- Main motor power: 5.5KW
- Hydraulic power: 4kw
(2) Main Roll Forming Machine
- Roller material:ASTM52100 chrome plated surface with chrome, HRC58-62 degree
- Shaft diameter: ¢70mm material: SAE1045 with tempering
- Change size by hand wheel
- To avoid accidents, the driven parts will be covered with the protective cover
- Cooling system is consider
(3) Machine Structure
- Main frame by 350H beam welding
- Machine structure: Wire-electrode cutting
- By chain: 1.0inch double line
(4) Track cutting system
- Adopt the hydraulic cutting
- Cutting after forming: Cut the sheet after roll forming to required length
- Material of blade:Cr12, 58-62 HRC hardness , 25 cutters
- Cutting power by hydraulic,11KW Siemens
- Servo power: 4KW Yaskawa
- Working pressure:maximal 25Mpa
- Length measuring: Automatic encoder length measuring
- Tolerance of length: +/- 1.5mm for each piece end product
(5) Hydraulic System
- Hydraulic power: 11kw
- Working pressure: maximal 25Mpa
- Solenoid valve: 1 group
- Hydraulic oil: 46# hydraulic oil
(6) Computer Control Cabinet
- Programmable setting of profile length and quantity
- Operating system language: English and Chinese
- Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
- PLC: Panasonic or customerization
