• Model NO.：YX100-141
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Product Name：Gutter Roll Forming Machine

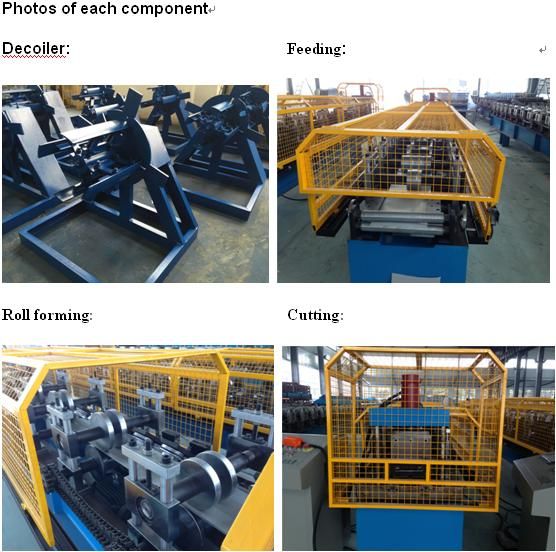

• Shaft：56mm
• Steel Thickness：0.4-0.7mm
• Transport Package：Sea Packing
• Trademark：SAIBO
• Origin：Jiangsu, China
• HS Code：84552210
• Production Capacity：300set,Year

Item NO

Description

Offered specification

1Roll Forming Machine

Gutter

2Coil width281mm3Rolling Speed12-15m/min(not include cutting time)4Rolling Thickness0.4-0.7mm G5505Control SystemPLC (Panasonic) as list in the note6Un Coiler3T manual decoiler7Pre-cuttingBy manual8Roller StationsAbout 16 stations9Roller Material45# forge steel, coated with chrome10Shaft Material and DIA¢56mm, material is 45# forge steel11Post cuttingHydraulic cutting after forming12Maim Motor Power5.5kw13Hydraulic Station Power3kw14Hydraulic Pressure10-12Mpa adjustable15Material Of CuttingCr12Mov quenching 58-62ºC16Structure Of The StationsGuide pillar17Tolerance3m+-1.5mm18Electric Source

380V, 50HZ,3 phase

According to customer's require

19Way Of DriveBy chain20Color Of The MachineYellow and blue

Main Features

1. Simple structure in linear type ,easy in installation and maintenance.
2. Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.
3. Running in a high automatization and intellectualization, no pollution
4. No need foundation, easy operation
