Color Steel Cap Ridge Roll Forming Machine
Zhangjiagang City Saibo Science & Technology Co., Ltd.- Type：Rolling Machine
- Forging Forming Method：Mold Forging
- Power Source：Electric
- Feature：High Efficiency
- Certification：ISO9001, CE
- Warranty：12 Months
Base Info
- Model NO.：YX 116-284
- Customized：Customized
- Advantage：Use Widely
- Condition：New
- Product Name：Ridge Cap Roll Forming Machine
- Station：7 Stations+4 Side Station
- Decoiler：Manual
- Transport Package：Sea Packing
- Trademark：SAIBO
- Origin：Jiangsu, China
- HS Code：84552210
- Production Capacity：300set,Year
Description
1
2

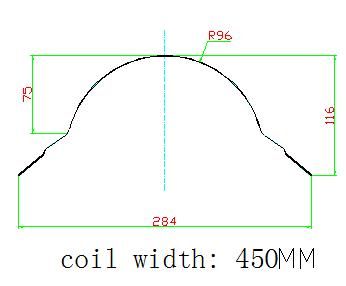

Profile drawing:

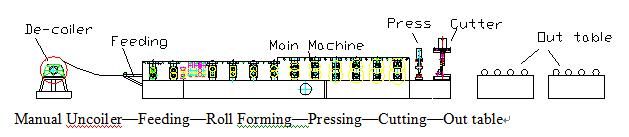

The Chart of Process Flow
Specification of Components
Manual Uncoiler
- Width of feeding: 450mm
- Capability: 3 Ton
- Mode of expand &fight: inner expand &fight by manual
- Way of feeding: manual

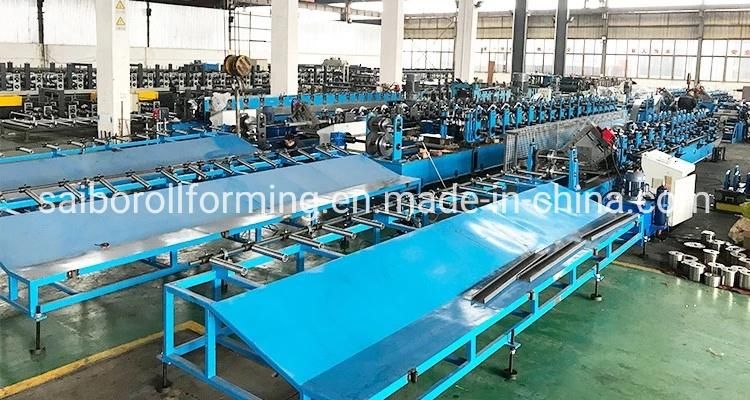

Main Roll Forming Machine
- Roller material:ASTM1045 chrome plated surface with chrome
- Shaft diameter: ¢56mm solid shadt
- material: SAE1045 with tempering
Machine structure:
- Main frame by 350H beam welding
- Machine structure: guide pillar
Hydraulic pressing & cutting system
- Material of blade/pressing mould:Cr12, 58-62 HRC hardness
- Power by hydraulic,3KW
- Length measuring: Automatic encoder length measuring
- Tolerance of length: +/- 1.5mm for each piece end product
Hydraulic System
- Hydraulic power: 3kw
- Working pressure: 12-16Mpa adjustable
- Solenoid valve: 2 groups
- Hydraulic oil: 46# hydraulic oil
Computer Control Cabinet
- Programmable setting of profile length and quantity
- Operating system language: English and Chinese
- Voltage, Frequency, Phase: 440V, 60 Hz, 3Phase
- Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
- Control panel: Button-type switch and touch screen
- PLC brand: Panasonic
Auto stacker
- Max stacking length :4m
- Power: by air cylinder
- Max stacking thickness:500mm
- Quantity: 1 unit
Warranty
- Warranty: 1 year warranty from date of shipment
- Guarantee:
1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser's account if manufacturer's engineer has to be send to purchaser's factory to maintain the machine during the guarantee period.
