24dh Fine Wire Drawing Machine with Annealer

HOOHA Co., LIMITED
  • Type：LW Pulley Type Metal Drawing Machine
  • Usage：Wire, Rope Wire
  • Metal Material：Copper
  • Outlet Diameter：0.1-0.32mm
  • Max.Inlet Wire Dia.：0.5-1.2mm
  • Block Dia.：500mm

Base Info

  • Model NO.：24DHT-VG150
  • Max. Number of Block：21
  • Certification：REACH, ISO
  • Condition：New
  • Wire Inlet Diameter：0.5-1.2mm
  • Wire Finished Diameter：0.1-0.32mm
  • Max Wire Speed：2000m,Min
  • Spool Bobbin Size：300*215*270mm
  • Power Source：380V,50,60Hz
  • Dimensions：4.7*2.5*2.3m
  • Weight：3000kg
  • Transport Package：Wood Package
  • Specification：CE ISO SGS
  • Trademark：HOOHA
  • Origin：Dongguan
  • HS Code：8463102000
  • Production Capacity：5 Sets,Month

Description

Team of HOOHA serviceNameeducationPositionMainly responsible for projectSpecializing in projectwire drawing machine with annealingModel24DHT-VG150control systemdigital readout buttonpower controldual inverterwire inlet diameter0.5-1.2mmwire finished diameter0.1-0.32mm max wire speed2000m/minmax dies NO.24mechanical elongation13%+8.7%construction of the machine bodaysteel plate welded and annealed,vertical four shaftsdrawing capastanceramic coatedcapastan diameter242mmfix speed capastan diameter206mm spool bobbin size300*215*270mmtransmission typeimport advanced flat belt drivebobbin loading unloading typeexpansion shaft or single sfaft cone main motor11kwspooler motor4kwtension adjustmentweight type tension pulleyfix systemautomatic control of take up by PIDmax loading capacity50kg lubrication capacity50L/minlubrication typesprayingbrake magnetic brakelubrication type for bearingwithout oilannealing control4 poles DC current outputannealing capacity21 KVA annealing voltage0-57Vannealing current300Atotal power15kw+21KVApower source380V,50/60HZSteam consumption6-9kg/h 0.2-0.3MPa coiling water  consumption4-8m³/h 0.2-0.25MPaair consumption15-25m³/h 0.4-0.6Mpadimensions4.7*2.5*2.3Mweight3000kg

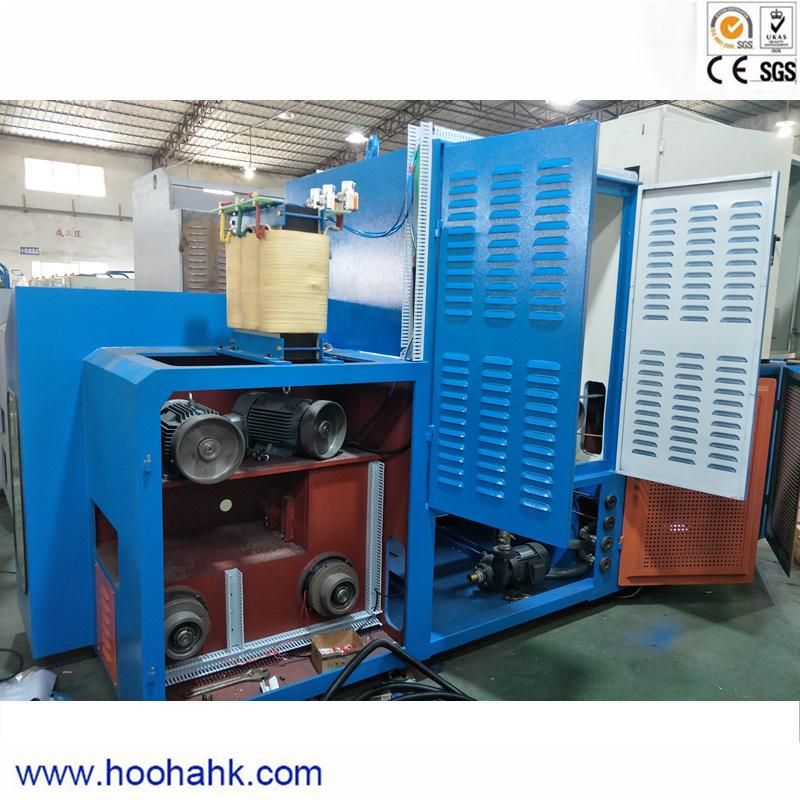

24dh Fine Wire Drawing Machine with Annealer

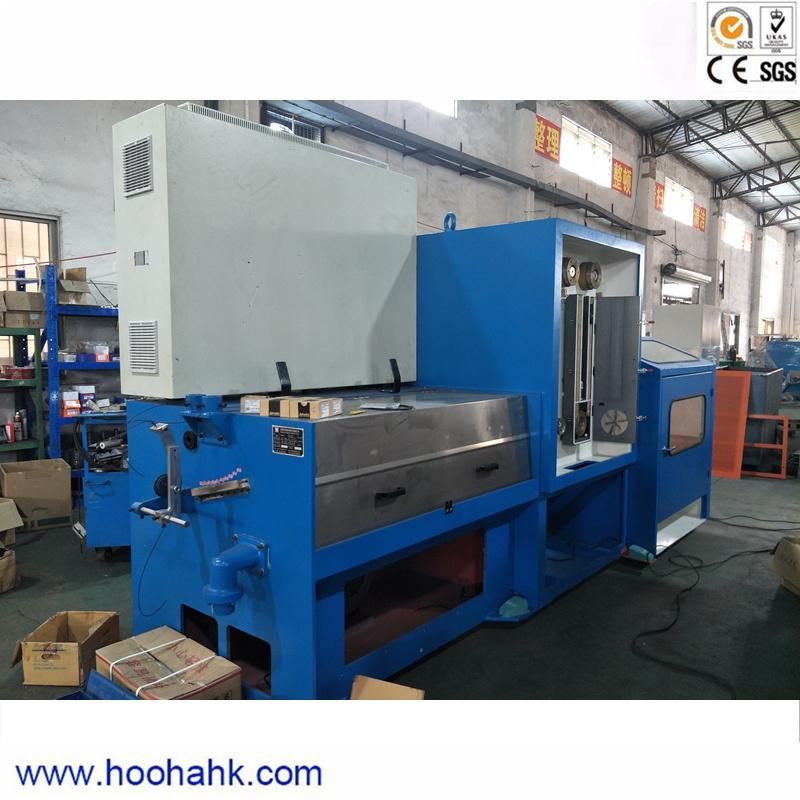

24dh Fine Wire Drawing Machine with Annealer

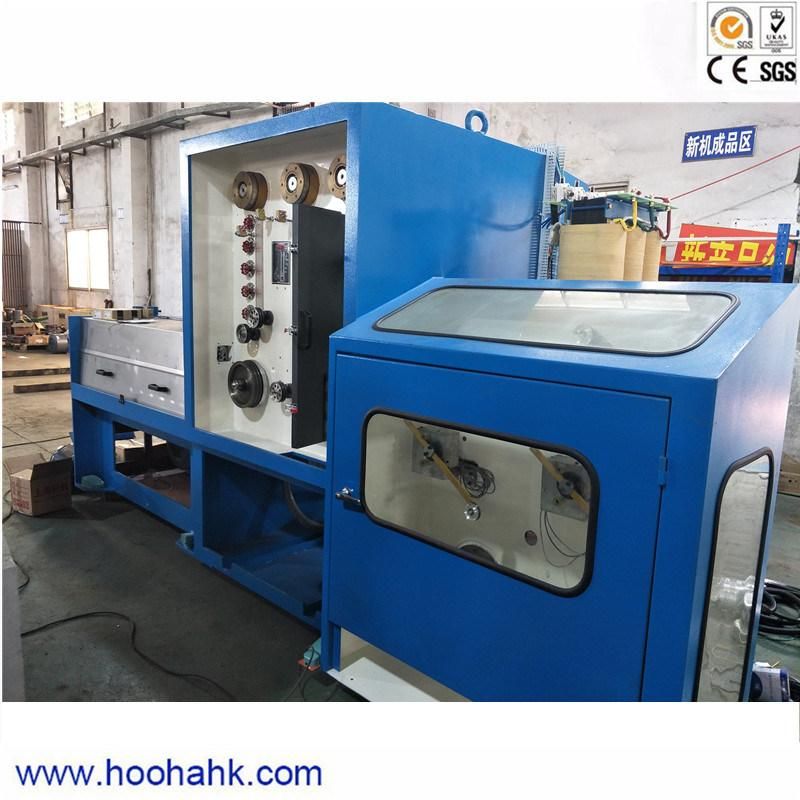

24dh Fine Wire Drawing Machine with Annealer

Spare Parts Brands:
Motor: Dongguan Motor , Teco, ABB, Siemens
Inverter : Japan Yaskawa, Siemens, Taiwan Teco
Temperature Control Meter: Japan RKC;
Auxiliary Relay: Japan Omron ;
Ammeter and Voltmeter: Taiwan Risesun ;
Indicator, Switch and Button: Taiwan TEND ;
Contactor: Taiwan Shihlin
Line Speed Meter: Taiwan FOTEK/Yangming
Bearing : NSK, SKF

Afetr service
1).Delivery dates: 45 days
2).Payment: TT or L/C
3).Packing: Wood packing and PE plastic packing ensure the goods safety on the transportation.
4). Install and training service: 2 professional engineers who has over 5 years overseas install and cable manufacture training experience.
5) after service phone number online
