• Model NO.：24DHT
• Max. Number of Block：21
• Certification：REACH, RoHS, ISO
• Condition：New
• Wire Inlet Diameter：0.5-1.2mm
• Wire Finished Diameter：0.1-0.32mm
• Max Wire Speed：2000m,Min
• Spool Bobbin Size：300*215*270mm
• Power Source：380V, 50,60Hz
• Dimensions：4.7*2.5*2.3m
• Weight：3000kg
• Transport Package：Wood Package
• Specification：CE ISO SGS
• Trademark：HOOHA
• Origin：Dongguan
• HS Code：8463102000
• Production Capacity：5 Sets,Month

wire drawing machine with annealingModel24DHT-VG150control systemdigital readout buttonpower controldual inverterwire inlet diameter0.5-1.2mmwire finished diameter0.1-0.32mm max wire speed2000m/minmax dies NO.24mechanical elongation13%+8.7%construction of the machine bodaysteel plate welded and annealed,vertical four shaftsdrawing capastanceramic coatedcapastan diameter242mmfix speed capastan diameter206mm spool bobbin size300*215*270mmtransmission typeimport advanced flat belt drivebobbin loading unloading typeexpansion shaft or single sfaft cone main motor11kwspooler motor4kwtension adjustmentweight type tension pulleyfix systemautomatic control of take up by PIDmax loading capacity50kg lubrication capacity50L/minlubrication typesprayingbrake magnetic brakelubrication type for bearingwithout oilannealing control4 poles DC current outputannealing capacity21 KVA annealing voltage0-57Vannealing current300Atotal power15kw+21KVApower source380V,50/60HZSteam consumption6-9kg/h 0.2-0.3MPa coiling water  consumption4-8m³/h 0.2-0.25MPaair consumption15-25m³/h 0.4-0.6Mpadimensions4.7*2.5*2.3Mweight3000kg


Spare Parts Brands:

Motor: Dongguan Motor , Teco, ABB, Siemens
Inverter : Japan Yaskawa, Siemens, Taiwan Teco
Temperature Control Meter: Japan RKC;
Auxiliary Relay: Japan Omron ;
Ammeter and Voltmeter: Taiwan Risesun ;
Indicator, Switch and Button: Taiwan TEND ;
Contactor: Taiwan Shihlin
Line Speed Meter: Taiwan FOTEK/Yangming
Bearing : NSK, SKF




After service

1).Delivery dates: 45 days
2).Payment: TT or L/C
3).Packing: Wood packing and PE plastic packing ensure the goods safety on the transportation.
4). Install and training service: 2 professional engineers who has over 5 years overseas install and cable manufacture training experience.
5) after service phone number online


Why choose us?

1.We are the cable equipment manufacturer.
2.Professional engineer,long-term to research and development for to cable equipment .
3.High frequency capacity manufacturer machine is provide .Guarantee the machine all weather running .
4.Our machine use the international qualified brand,like siemens ,omron,nsk,lg etc.
5.Technical support and spare parts service.
6.Well-experienced in overseas to support customer with technical,training,operating.
7.Team of HOOHA serviceNameeducationPositionMainly responsible for projectSpecializing in project Industry working history    ( year )zanyang XiecollegeGeneral EngineerThe total project design and planning power cable machine15xioahua HucollegeVis general engineerThe total project design and planning net cable,data cable machine10Chnaghong ChengcollegeEngineerDrawings and after-sales serviceTeflon,Optical fiber cable machine25xiuwu ChencollegeGeneral EngineerThe total project design and planning copper drawing machine15lixin YuancollegeEngineerThe project design and planning coppwer wire making technical16zhenghai Qiucollegecable engineerAfter servicecable making and cable factory management servie15jinxin LiucollegeMarketing engineerAfter serviceelectrical engineer7xingguo TangHigh schoolElectrical engineerAfter serviceelectrical engineer10changqiang LiHigh schoolMaintain engineerAfter servicemachina maintain and install service10haipin LiUniversityEngineering director Marketing and salesproject consulting 8sen YangUniversityEngineering translatorMarketing and salesproject consulting 5

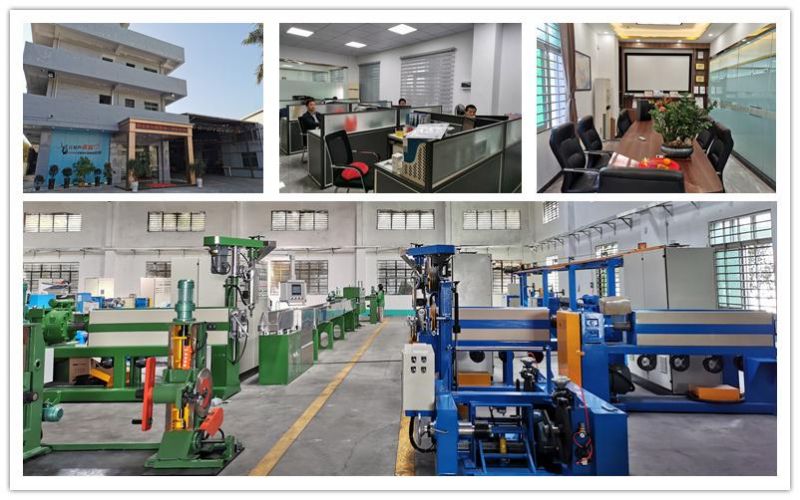

Company information

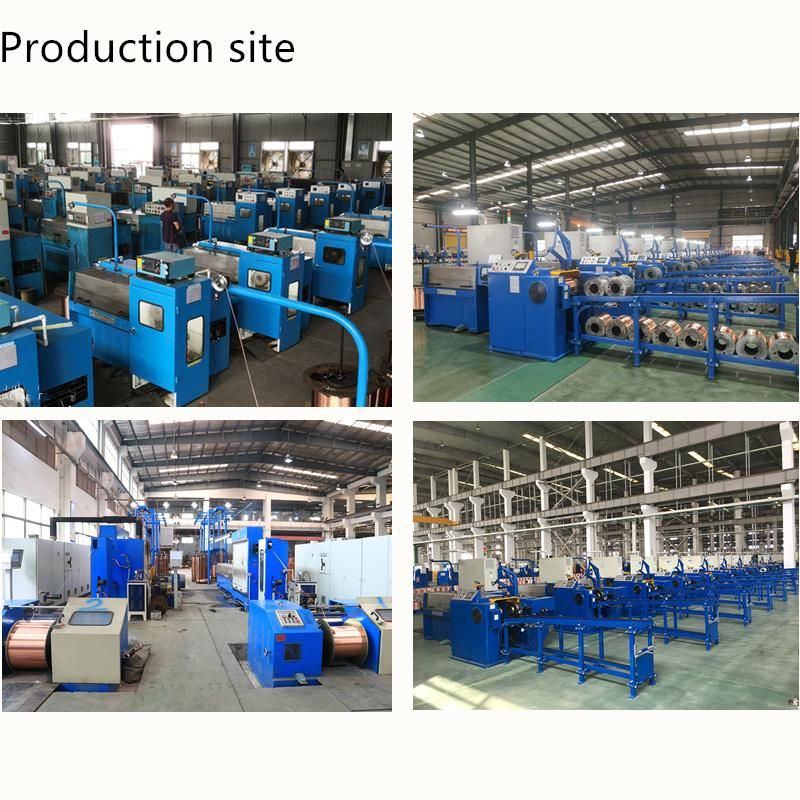

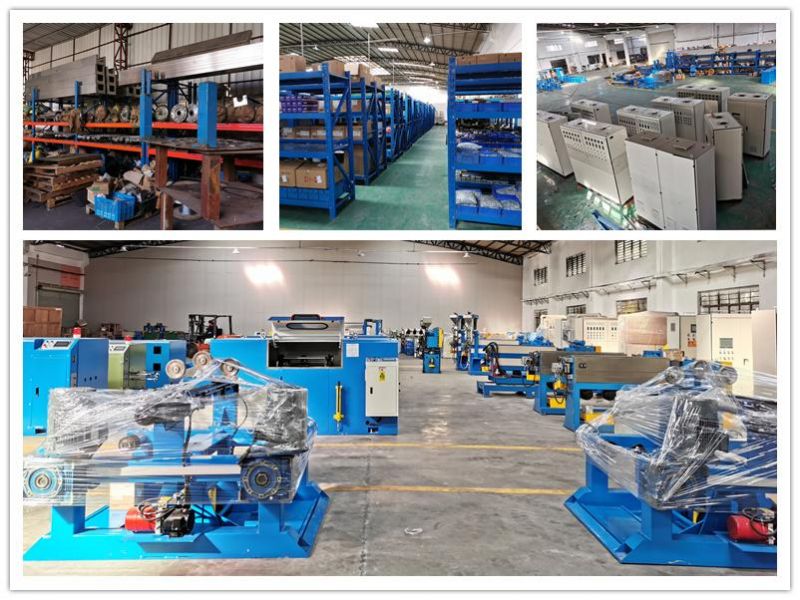

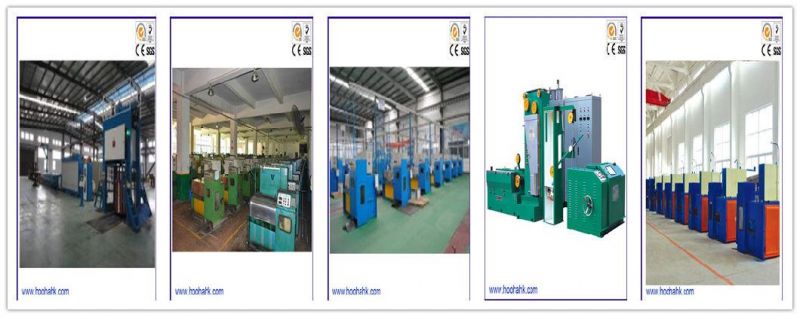

Factory & Workshop &Warehouse

Installation
(3 choices ) a. HOOHA's Chinese installation team. b. HOOHA's overseas installation co-partners in your country. c. DIY Guide: HOOHA supports online guidance.How to Start Contact us and leave your contact email and phone number.
