• Model NO.：HH-24DHA,DHB
• Max. Number of Block：21
• Certification：REACH, RoHS, ISO
• Condition：New
• Wire Inlet Diameter：0.5-1.2mm
• Wire Finished Diameter：0.1-0.32mm
• Max Wire Speed：2000m,Min
• Spool Bobbin Size：300*215*270mm
• Power Source：380V, 50,60Hz
• Dimensions：4.7*2.5*2.3m
• Weight：3000kg
• Transport Package：Plastic Package
• Specification：CE ISO SGS
• Trademark：HOOHA
• Origin：Dongguan
• HS Code：8463102000
• Production Capacity：5 Sets,Month

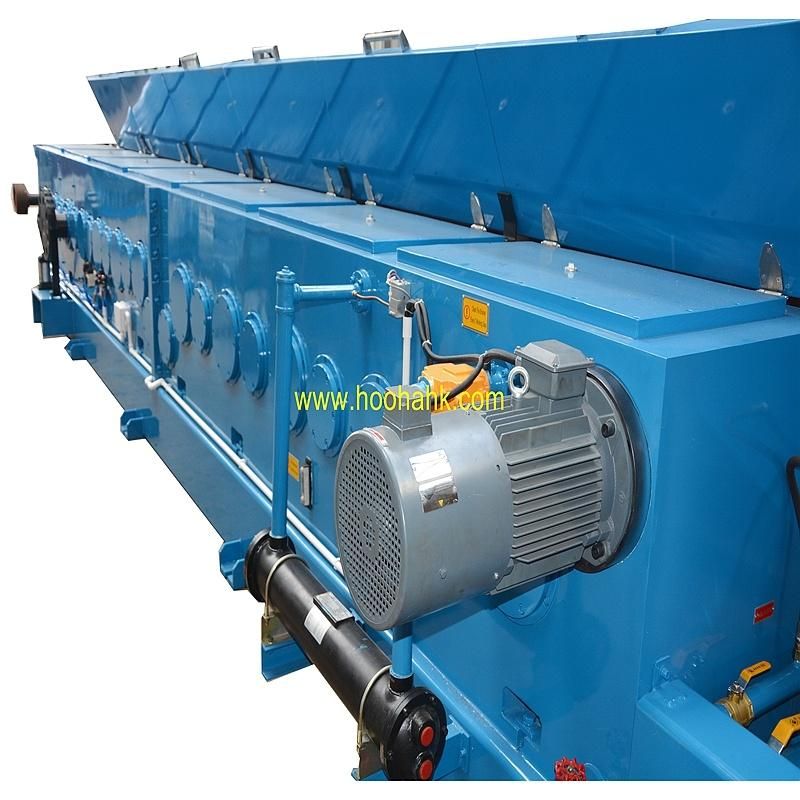

Wire drawing machine with annealingModel24DHT-VG150Control systemDigital readout buttonPower controlDual inverterWire inlet diameter0.5-1.2mmWire finished diameter0.1-0.32mm Max wire speed2000m/minMax dies NO.24Mechanical elongation13%+8.7%Construction of the machine bodaySteel plate welded and annealed,vertical four shaftsDrawing capastanCeramic coatedCapastan diameter242mmFix speed capastan diameter206mm Spool bobbin size300*215*270mmTransmission typeImport advanced flat belt driveBobbin loading unloading typeExpansion shaft or single sfaft coneMain motor11kwSpooler motor4kwTension adjustmentWeight type tension pulleyFix systemAutomatic control of take up by PIDMax loading capacity50kg Lubrication capacity50L/minLubrication typeSprayingBrakeMagnetic brakeLubrication type for bearingWithout oilAnnealing control4 poles DC current outputAnnealing capacity21 KVA Annealing voltage0-57VAnnealing current300ATotal power15kw+21KVAPower source380V,50/60HZSteam consumption6-9kg/h 0.2-0.3MPa Coiling water  consumption4-8m³/h 0.2-0.25MPaAir consumption15-25m³/h 0.4-0.6MpaDimensions4.7*2.5*2.3MWeight3000kg



Team of HOOHA serviceNameEducationPositionMainly responsible for projectSpecializing in projectIndustry working history    ( year )Zanyang XieCollegeGeneral EngineerThe total project design and planningPower cable machine15Xioahua HuCollegeVis general engineerThe total project design and planningNet cable,data cable machine10Chnaghong ChengCollegeEngineerDrawings and after-sales serviceTeflon,Optical fiber cable machine25Xiuwu ChenCollegeGeneral EngineerThe total project design and planningCopper drawing machine15Lixin YuanCollegeEngineerThe project design and planningCoppwer wire making technical16Zhenghai QiuCollegeCable engineerAfter serviceCable making and cable factory management servie15Jinxin LiuCollegeMarketing engineerAfter serviceElectrical engineer7Xingguo TangHigh schoolElectrical engineerAfter serviceElectrical engineer10Changqiang LiHigh schoolMaintain engineerAfter serviceMachina maintain and install service10Haipin LiUniversityEngineering directorMarketing and salesProject consulting8Sen YangUniversityEngineering translatorMarketing and salesProject consulting5
