• Model NO.：C purlin
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Product Name：Double Line C Purlin Roll Forming Machine
• Thickness：2.0mm
• Transport Package：Sea Packing
• Trademark：SAIBO
• Origin：China
• HS Code：84552210
• Production Capacity：300set,Year

NoSpecification of the material

1

Suitable MaterialPI/PPGI

2

Width of the raw materialBased on the purlin sizes.3Thickness2.0mm

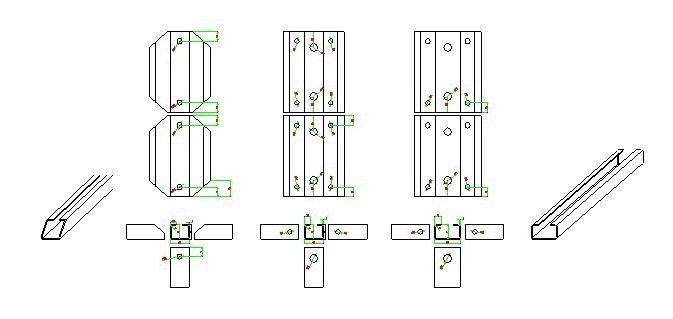

Profile drawing:

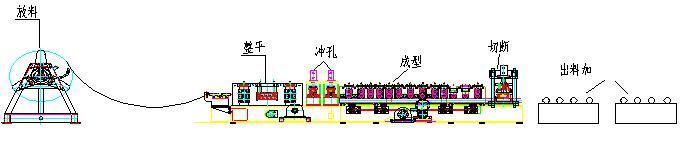

Layout of the machine

Uncoiler- feeding- leveling- punching-roll forming-correct system-cutting-out table

Specification of Components

1Machine structureWire-electrode cutting structure2Total powerMotor power-15kw
Hydraulic power-5.5kw3Roller stations14 stations+ one station of correct system4Productivity0-15m/min5Decoiler3T manual decoiler6Drive systemBy chain7Diameter of shaft76mm, 45# solid shaft8Roller materialGcr15,HRC hardness and chrome plated surface9Post hydraulic cutting systemCr12 with heat treatment 58-60°, 3 sets of cutter10Punching 2 units10
 Voltage380V 50Hz 3phases (Customized)

Warranty

• Warranty: 1 year warranty from date of shipment
• Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser's account if manufacturer's engineer has to be send to purchaser's factory to maintain the machine during the guarantee period
