• Model NO.：YX50-300
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• Product Name：Stud Panel Roll Forming Machine
• Drive：by Chain
• Transport Package：No Packing
• Specification：CE SGS
• Trademark：SAIBO
• Origin：Jiangsu China
• HS Code：84552210
• Production Capacity：300sets,Year

1Suitable Material

PI/PPGI

2Width of the raw material
 450mm3Thickness
 0.2mm-0.5mm

2. Machine Detailed Parameters

1
Roll Forming
 YX50-3002
Machine structure
 Wall panel 3Total power

Motor power-4kw

Hydraulic power-3kw4Roller stations

About 15 stations

5

Productivity

0-15m/min6

Drive system

By chain7

Diameter of shaft

¢56mm solid shaft8

Voltage

380V 50Hz 3phases (Customized)9

Container need

20GP container10

Color Of The Machine

Yellow and blue

11

Deliver Time

70 days12

Terms Of Payment

30%T/T 70% pay before shipment

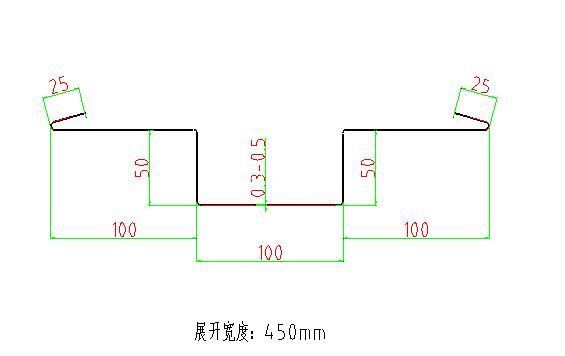

3. Profile drawing

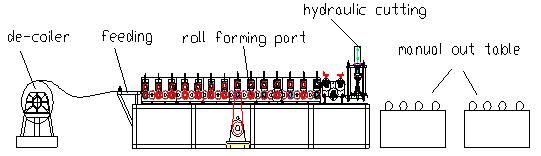

4. The Chart of Process Flow



5. Specification of Components

(1) 3T Manual Un-coiler

• Adopt automatic hydraulic system for expand
• Width of feeding: 350mm
• Capability: 3 Ton
• Bound of expand &fight: 380mm-520mm
• Mode of expand &fight: inner expand &fight by manual
• Way of feeding: manual

(2) Film System

• Machine adopt film system in order to protect the coil

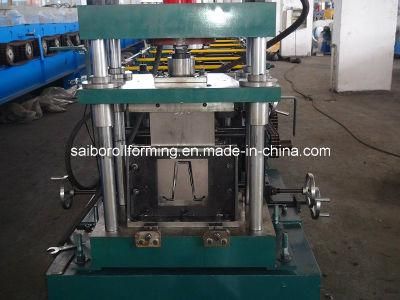

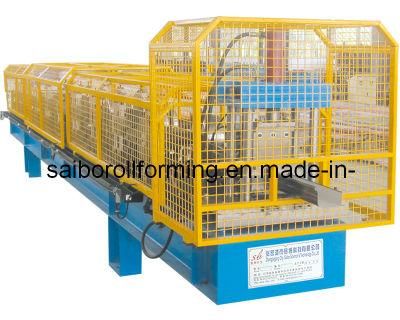

(3) Main Roll Forming Machine

• Roller material:ASTM1045 chrome plated surface with chrome
• Shaft diameter: ¢56mm material: SAE1045 with quenching and tempering
• Main frame by 350H beam welding
• Machine structure: Wall panel

(4) Hydraulic cutting system

• Cutting after forming: Cut the sheet after roll forming to required length
• Uses two hydraulic cylinders for operation.
• Material of blade:Cr12, 58-62 HRC hardness
• Cutting power by hydraulic,3KW
• Working pressure: 12Mpa adjustable
• Length measuring: Automatic encoder length measuring
• Tolerance of length: +/- 1.5mm for each piece end product

(5) Computer Control Cabinet

• Programmable setting of profile length and quantity
• Operating system language: English and Chinese
• Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
• PLC: Panasonic or customerization

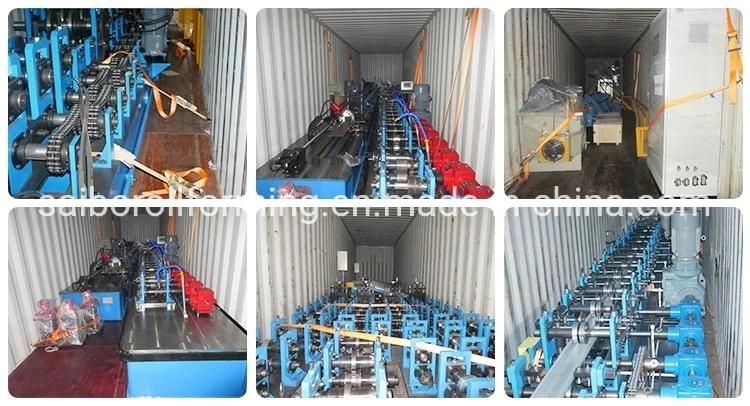

 Delivery1. Sea shipping.2. Air shipping for sampling.3. Train shipping for landlocked countries serviced by CRExpress Europeblock train ferry.

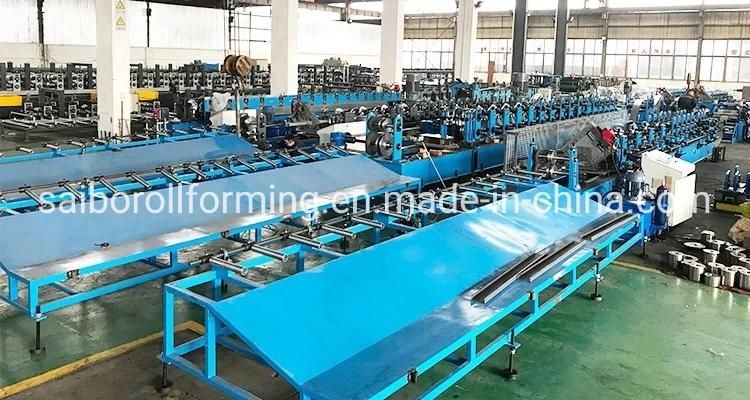

About Saibo

Saibo Science & Technology - 20 Years Experience Manufacturer in Developing and Exporting.Zhangjiagang City Saibo Science & Technology Co., Ltd. is a professional manufacturer specializing in the developing and exporting of different kind of high speed roll forming machine, Main use of our roll forming machine is for Solar Structures, PEB project and also for Cable tray, Guard Rail, Roofing Sheets, Floor Decking and all of the different kind purlin/channel which makes from GI/PPGI/PPGL/Aluminium/Aluminium alloy/SS . Our company, which is located in Zhangjiagang city, Jiangsu province, near Shanghai City with superior geographic position and convenient transportation.


We engaged in the steel structure industry in 20 years and devoted to developing some steel structure machines with professional technology and reasonable price, we supply the best machines for our new and regular customers. All of our technology team and marketing person all more than 10 years working. In particular, we are a leading exporter in the field of steel structure construction and can provide professional service, high quality,  through design, and installation. Our goal is" future by heartiness, faith leads to the world".


International certification, National Certificate of equipment verification, and more than 30 invention patents are done in Saibo Machinery.

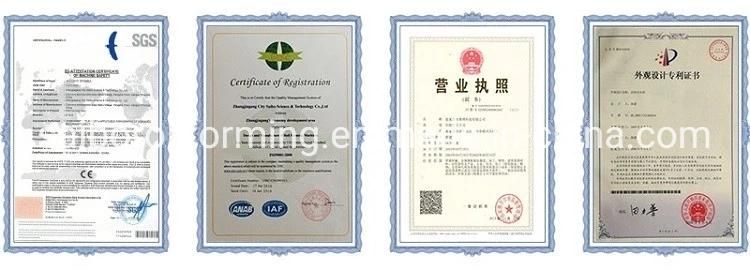

Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV
