• Model NO.：YX15-40
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Product Name：Cold Roll Forming Machine
• Thickness：2.0mm
• Roll Material：45# Forge Steel
• Transport Package：Sea Packing
• Trademark：Saibo
• Origin：Jiangsu, China
• HS Code：84552210
• Production Capacity：300sets,Year

NoSpecification of the material

1

Suitable MaterialPI

2

Width of the raw materialBased on the purlin sizes.3Thickness2.0mm

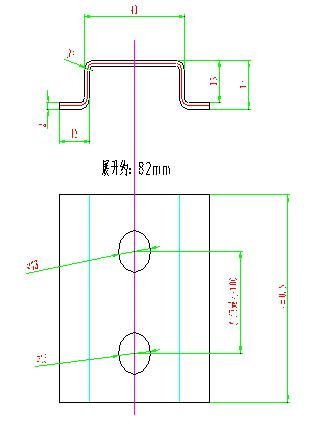

Profile drawing:


Specification of Components

1Machine structureWall panel structure2Total powerMotor power-7.5kw
Hydraulic power-4kw3Roller stations10 stations4Productivity0-15m/min5Decoiler3T manual decoiler6Drive systemBy chain7Diameter of shaft45# solid shaft8Roller material45#,HRC hardness and chrome plated surface9Post hydraulic cutting systemCr12 with heat treatment 58-60°, 4 sets of cutter10
 Voltage380V 50Hz 3phases (Customized)

Warranty

• Warranty: 1 year warranty from date of shipment
• Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser's account if manufacturer's engineer has to be send to purchaser's factory to maintain the machine during the guarantee perio

 Delivery1. Sea shipping.2. Air shipping for sampling.3. Train shipping for landlocked countries serviced by CRExpress Europeblock train ferry.

About Saibo

Saibo Science & Technology - 20 Years Experience Manufacturer in Developing and Exporting.Zhangjiagang City Saibo Science & Technology Co., Ltd. is a professional manufacturer specializing in the developing and exporting of different kind of high speed roll forming machine, Main use of our roll forming machine is for Solar Structures, PEB project and also for Cable tray, Guard Rail, Roofing Sheets, Floor Decking and all of the different kind purlin/channel which makes from GI/PPGI/PPGL/Aluminium/Aluminium alloy/SS . Our company, which is located in Zhangjiagang city, Jiangsu province, near Shanghai City with superior geographic position and convenient transportation.


We engaged in the steel structure industry in 20 years and devoted to developing some steel structure machines with professional technology and reasonable price, we supply the best machines for our new and regular customers. All of our technology team and marketing person all more than 10 years working. In particular, we are a leading exporter in the field of steel structure construction and can provide professional service, high quality,  through design, and installation. Our goal is" future by heartiness, faith leads to the world".


International certification, National Certificate of equipment verification, and more than 30 invention patents are done in Saibo Machinery.

Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV

National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration, etc.
