• Model NO.：YX40-60
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• Product Name：Cold Roll Forming Machine
• Steel Thickness：0.8-2.0mm
• Drive：by Chain
• Transport Package：No Packing
• Trademark：SAIBO
• Origin：Jiangsu, China
• HS Code：84552210
• Production Capacity：300sets,Year

NoSpecification of the material

1

Suitable MaterialCarbon steel

2

Width of the raw materialBased on the purlin sizes.3Thickness0.8-2.0mm

Profile drawing:

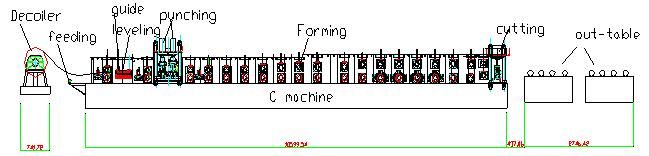

The Chart of Process Flow

Hydraulic Un-coiler-Leveling - punching -Roll Forming-Cutting-out table

Specification of Components

1Machine structureWall board structure2Total powerMotor power-18.5kw
Hydraulic power-5.5kw3Roller stations19 stations+ 1 station of torque head4Productivity0-15m/min5Decoiler5T hydraulic decoiler6Leverling partUpper is 3 rollers, down is 4 stations(total is 7 rollers)7Drive systemBy chain8Diameter of shaft¢85mm solid shaft9Roller materialCr12, 58-62,HRC hardness and chrome plated surface10Pre punching& cutting systemPre-cutting to change the material
Material of the punching mold: Cr1211Hydraulic cutting systemCr12 with heat treatment 58-60°12Hydraulic power7.5KW13
 Voltage380V 50Hz 3phases (Customized)

Warranty

• Warranty: 1 year warranty from date of shipment
• Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser's account if manufacturer's engineer has to be send to purchaser's factory to maintain the machine during the guarantee period.

 Delivery1. Sea shipping.2. Air shipping for sampling.3. Train shipping for landlocked countries serviced by CRExpress Europeblock train ferry.
