• Model NO.：YX-165
• Main Motor Power：200kw
• Size of Pipe：76-165mm
• Thickness：2.0-6.0mm
• Transport Package：Sea Packing
• Trademark：SAIBO
• Origin：Jiangsu, China
• HS Code：84552210
• Production Capacity：20set,Year

Basic Info.

Model NO. YX-165 Main Motor Power 200kw Size of Pipe 76-165mm Thickness 2.0-6.0mm Transport Package Sea Packing Trademark SAIBO Origin Jiangsu, China HS Code 84552210 Production Capacity 20set/Year

Product Description

High frequency weld pipe machine line
Specifications

1-Tube machine
2-Easy to operation
3- PLC control system
4-High speed
5: High Frequency Welded pipe making machine

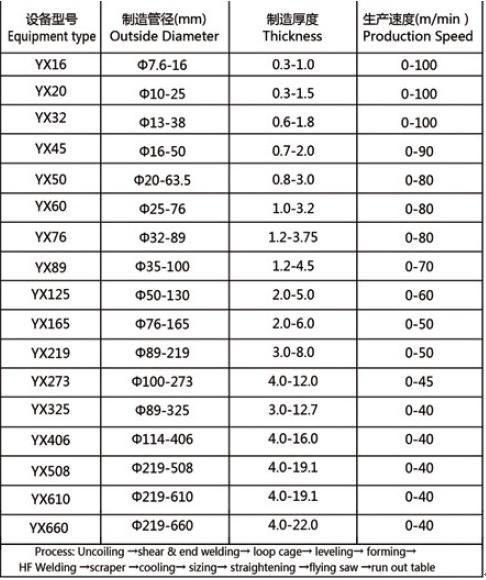

Description Capacity:
1. Pipe ID: 76mm-165mm
2. Thickness:2.0-6.0mm
3. Speed:0-50m/min

Uncoiler

Briefing: Rotary type to change coils easily with a pneumatic brake
Parameters:
1. The max. weight of coil:2000kg
2. The inside diameter of coil:450-520mm
3. The max. outside diameter of coil :1600mm
4. The max .width of coil: 520mm

Mechanical segments

1. Steel strip revolving bracket
2.Double-roller feeder
3.Horizontal accumulator of helix metal strip


Power configuration
1. Motor of horizontal accumulator of helix steel strip 18kw(AC motor)
2.motor of double-roller feeder 18kw(AC motor)
3.main motor power: 200kw
4. high frequency power: 500kw

Computer-controlled flying saw
A. Power of automatic controller: 22kw
B. Automatic tracking machine
1.The max .diameter to be cut :Φ165mm
2.The range of cutting length :4m-7m
3.The max. wall thickness to be cut :6.0mm
D. Power of the saw: 22kw
E. Accuracy of the cutting length :within±0.3mm

Discharging table
Conveyed on the rolling way ,reversed pneumatically(with 3kw 6classes motor)
