• Model NO.：ZYYX
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Machines Weight：About 8t
• Shaft Diameter：75mm.
• Operation Language：English or as Per Client`S Required
• Rollers Material：No.45 Forged Steel, Plated with Hard Chrom
• Certificate：CE
• Quality System：ISO9001
• Guarantee Time：First Year Free, Lifetime Services
• Cutter Material：Cr12 Mould Steel Being Quenched Treatment
• Cutting Type：Cut to Length
• Controlling System：Mitsubishi PLC & Converter
• Transport Package：1X40gp Container
• Specification：ISO SGS BV
• Trademark：zhongyuan
• Origin：China
• HS Code：84552210
• Production Capacity：10sets,Month

ItemSpecification
MaterialTypePre-painted steel coil & galvanized coilsThickness   (mm)0. 4 -0. 7Yield strength   (mpa)235 -345Roller material45#Chrome steelForming speed(m/min)About 25Speed adjusting modeAC FrequencyRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mould steel Length measurementE ncoderControl modeMitsubishi  PLCOperating modeButton +  Mitsubishi  Touch screenMain motor power   (kw)5.5 kw  (Depend on final design)Hydraulic station power 2.2  kw  (Depend on final design)Total power   (kw)7.7 kwUncoiler's loading capacityMax. Capacity: 5000kgs   (can be increased to be 10T)Machine`s sizeAbout 11*1.5*1.4m  (Depend on final design)

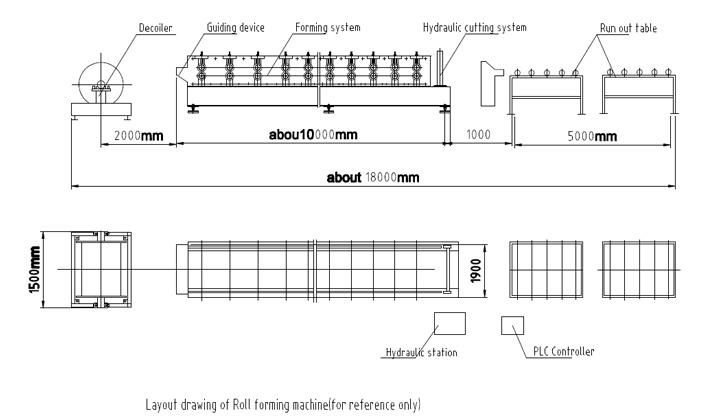

C omponents  of machineD ecoiler1set   F eeding & guiding device1setM ain roll forming machine1setH ydraulic cutting system1set C ontrolling system1set Run out table 1set
Process flow:
Decoiler -- Feeding & Guiding -- Roll Forming-- Hydraulic Cutting  -  Product to Run Out Table



Packing:
1. One 40feet container for loading one set machine with decoiler.
2. Main machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.

Delivery : about 50 days



About us

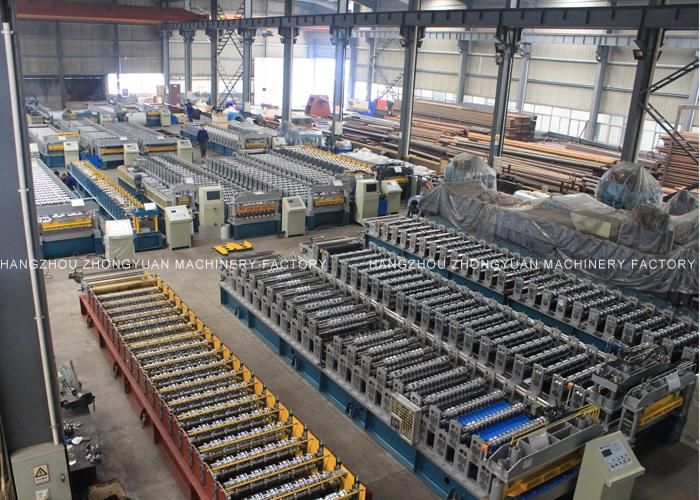

We are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops.

1.  Capacity: 12-15 sets/month
2.  Delivery: in only 5-8 weeks for urgent order
3.  Have our own tool center. 12 sets CNC machines.
4. Over the past 10 years, our R&D members dedicated in make better machines.

We garantee:
Machine lifetime service
Technician overseas services.
