Colo Electrostatic Powder Coating Spray Gun
Hangzhou Feifu Import and Export Co., Ltd.- After-sales Service:Yes
- Warranty:12 Moths
- Type:Coating Spray Gun
- Coating:Powder Coating
- Substrate:Steel
- Certification:CE, ISO
Base Info
- Model NO.:CL-191S-T-H
- Condition:New
- Voltage:100-240V
- Kv:0-110kv
- Transport Package:Carton
- Specification:44*44*55cm
- Trademark:COLO
- Origin:China
- HS Code:8424899990
- Production Capacity:500PCS,Months
Description
Basic Info.
Model NO. CL-191S-T-H Condition New Voltage 100-240V Kv 0-110kv Transport Package Carton Specification 44*44*55cm Trademark COLO Origin China HS Code 8424899990 Production Capacity 500PCS/MonthsProduct Description
COLO Electrostatic Powder Coating Spray GunDescription:
The advanced digital powder coating machine COLO-191S-T-H
Can easily and precisely control all pneumatic and electrostatic parameters, make good powder coating quality.
Ensure powder output regulate, save the powder.
It is very easy to operate and offers 3 pre-set standard application programs for flat parts, profiles and recoating Portable type, with hopper D20xH40cm
Specifications:
Voltage range | 100-240 V |
Frequency | 50/60HZ |
Input power | 50W |
Temperature range in use | -10 |

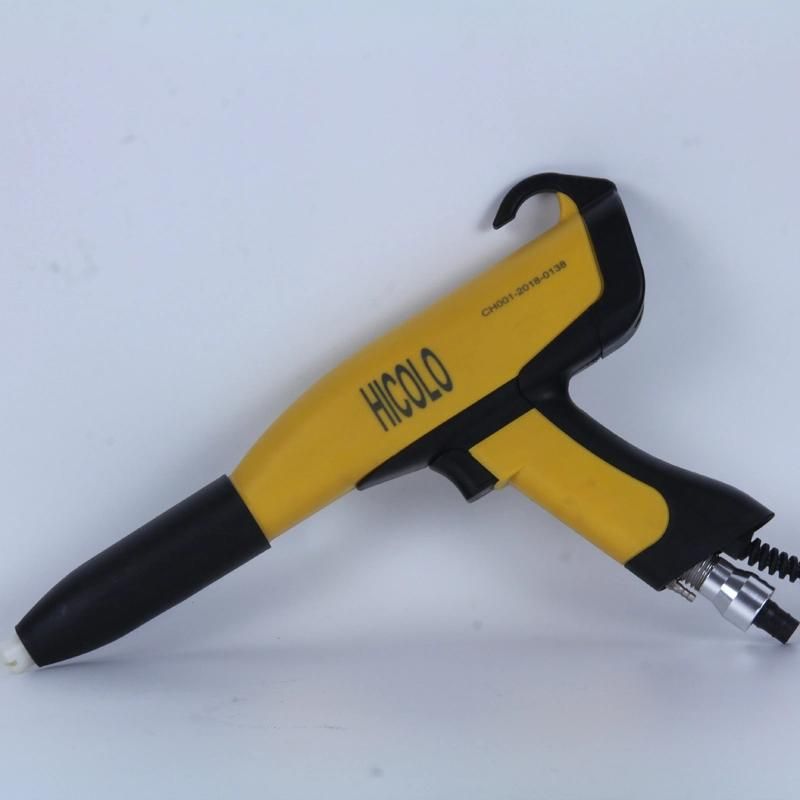

Powder Gun | COLO-08 |
Gun weight: | 500G |
Input voltage | MAX12V |
Input current | MAX1A |
Maximum output current | 180Ua(max) |
Maximum output voltage | 0-100KV ( adjustable) |
Maximum powder injection | 480g/min |
Polarity | negative (-) |
Pneumatic technical specification |
|
Maximum input-air pressure | 10 bar / 145 psi |
Optimum input-air pressure | 6 bar / 87 psi |
Maximum water vapor content or compressed air | 1.3 g/m3 |
Maximum oil vapor content of compressed air | 0.1 mg/m3 |
Maximum cimpressed-air consumption | 13.2 m3/h |

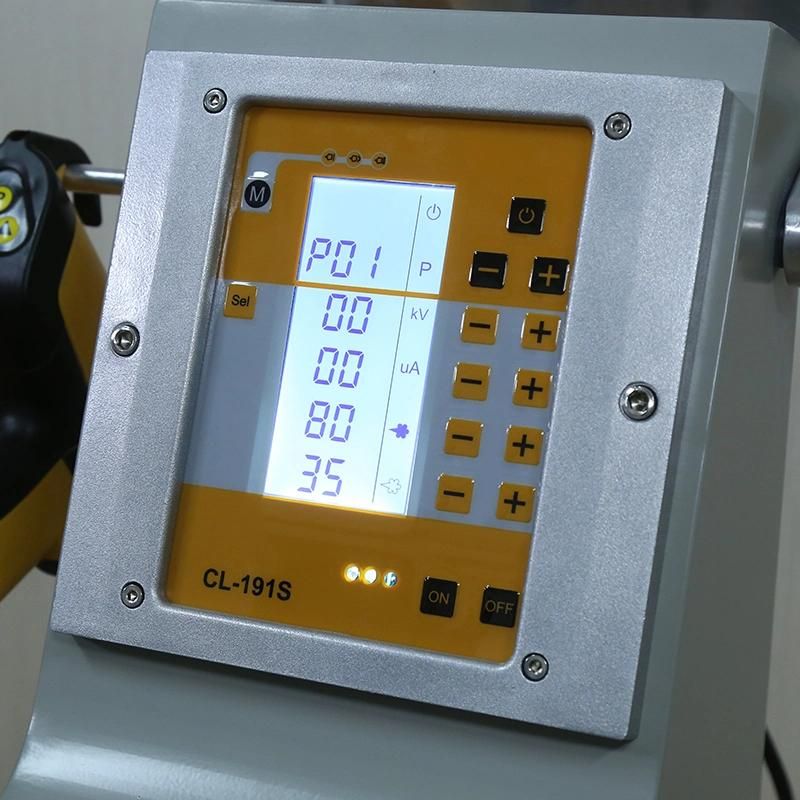

Controller:
Spray gun,Only in COLO:
For more product detal, please contact with us
