• Model NO.：ZYYX
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Operation Language：English or as Per Client`S Required

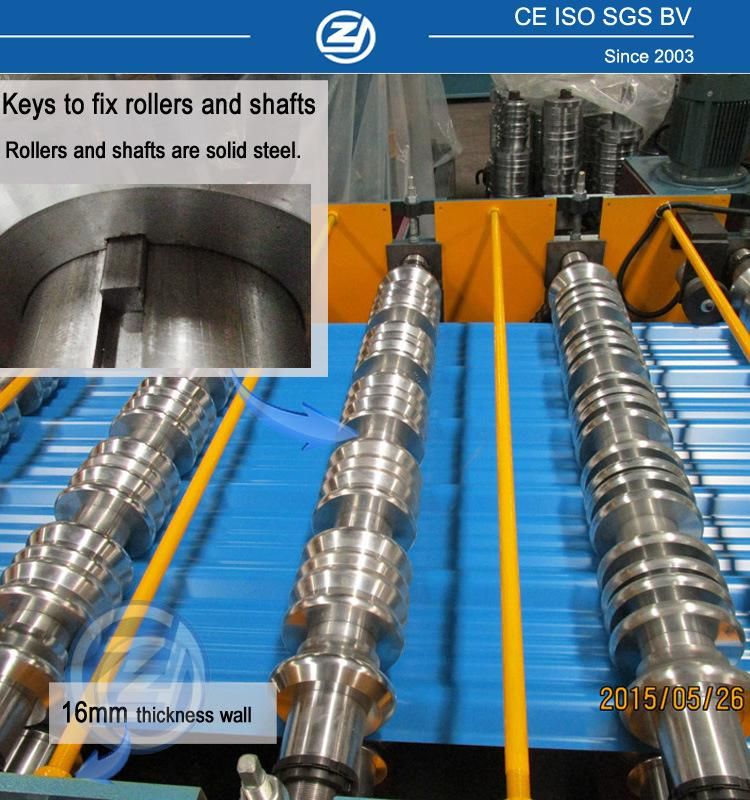

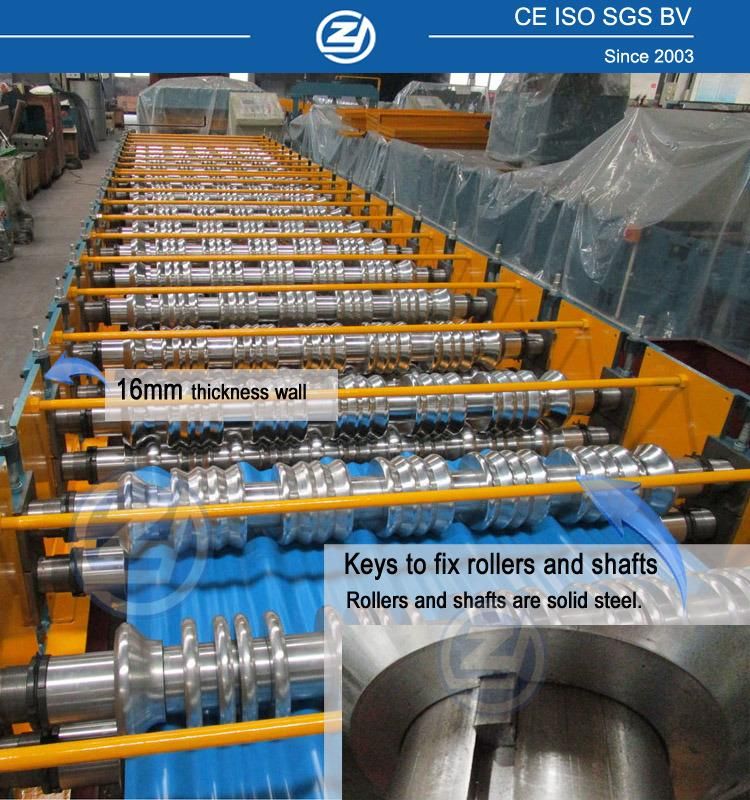

• Rollers Material：No.45 Forged Steel, Plated with Hard Chrom
• Shaft Diameter：72mm
• Cutting Type：Cut to Length

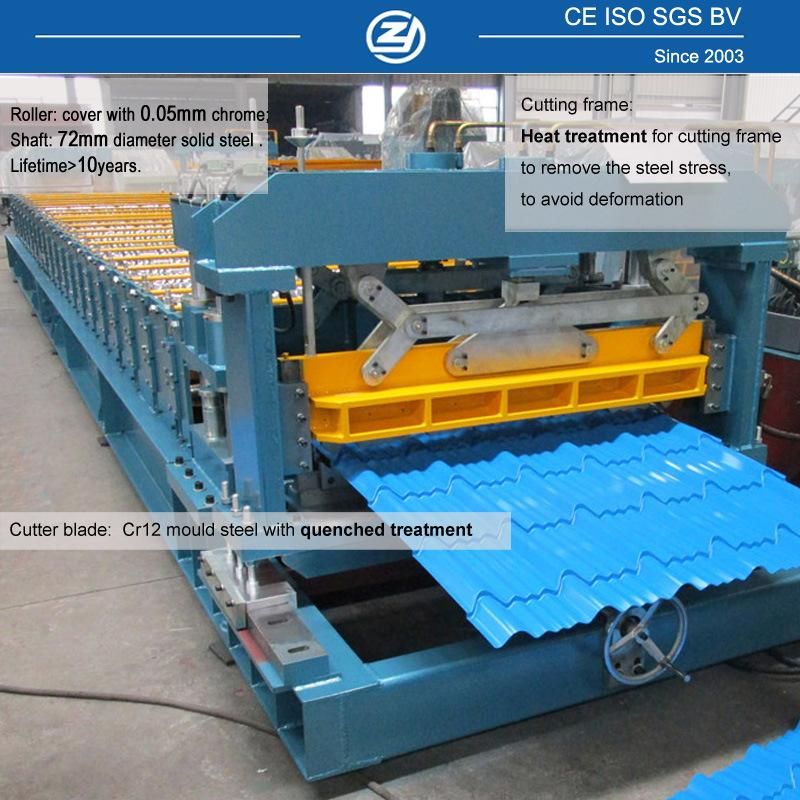

• Cutter Material：Cr12 Mould Steel Being Quenched Treatment
• Quality System：ISO
• Controlling System：Mitsubishi PLC & Converter
• Guarantee Time：First Year Free, Lifetime Services
• Machine Weight：About 10t
• Main Motor：7.5kw
• Transport Package：1X40gp Container for One Machine
• Specification：CE SGS BV
• Trademark：Zhongyuan
• Origin：Zhejiang, China
• HS Code：84552210
• Production Capacity：20sets,Month

Item
Specification
MaterialTypeColor steel sheetThickness(mm)0. 5 -0. 6Yield strength(mpa)235 -345Roller material45#Chrome steelForming speed(m/min)About 1500-2000mm/min or 4-5m/min. For optionStep distanceAdjustable according to requirement   (>=250mm)Speed adjusting modeAC FrequencyRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mould steel Length measurement EncoderControl mode Mitsubishi  PLCOperating modeButton +  Mitsubishi  Touch screenMain motor power(kw)5.5KW      (Depend on final design)Hydraulic station power 5.5K W     (Depend on final design)Total power(kw)11KWUncoiler's loading capacityMax. Capacity: 5000kgs (can be increased to be 10T)Machine`s sizeAbout 10*1.7*1.4m  (Depend on final design)Machine weightAbout 8000kgs
Components  of machine:Decoiler1set   Feeding & guiding device1setMain roll forming machine1setPressing device1setHydraulic cutting system1setControlling system1setRun out table 1set







About us

We are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops.

1.  Capacity: 12-15 sets/month
2.  Delivery: in only 5-8 weeks for urgent order
3.  Have our own tool center. 12 sets CNC machines.
4. Zhongyuan is a "All-in-house source"
     --from raw material to the final high-precision forming machine. We have our precise tooling center.
5.  You can rely on our team!
      We have engineers with experience more than 15 years in metal forming industry.

Please feel free to contact us for more information!
