• Model NO.：YX-60
• Size of Pipe：25-76mm
• Transport Package：Sea Packing
• Trademark：SAIBO
• Origin：Jiangsu, China
• HS Code：84552210
• Production Capacity：20set,Year

Basic Info.

Model NO. YX-60 Size of Pipe 25-76mm Transport Package Sea Packing Trademark SAIBO Origin Jiangsu, China HS Code 84552210 Production Capacity 20set/Year

Product Description

High frequency weld pipe machine line

Specifications
1-Tube machine
2-Easy to operation
3- PLC control system
4-High speed
5: High Frequency Welded pipe making machine

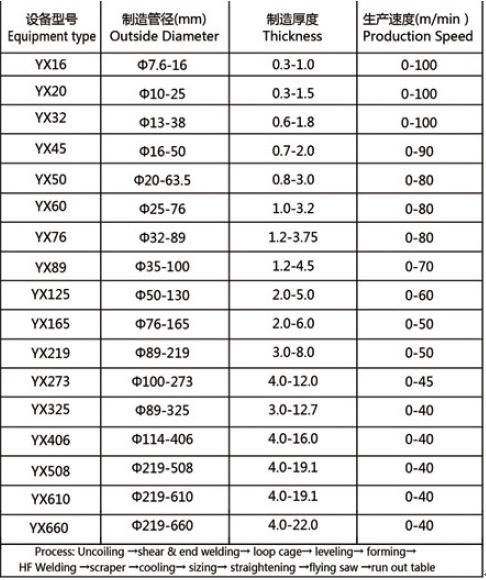

Description Capacity:
1, Pipe ID: 25mm-76mm
2, Thickness:1.0-3.2mm
3, Speed:0-80m/min

Double-head uncoiler

Briefing: Rotary type to change coils easily with a pneumatic brake
Parameters:
(1)The max. weight of coil:2000kg
(2)The inside diameter of coil:450-520mm
(3)The max. outside diameter of coil :1600mm
(4)The max .width of coil: 240mm

Mechanical segments

1. Steel strip revolving bracket
2. Double-roller feeder
3. Horizontal accumulator of helix metal strip

Power configuration
1. Motor of horizontal accumulator of helix steel strip 15kw(AC motor)
2. motor of double-roller feeder 7.5kw(AC motor)
3.main motor power: 70kwX2
4. high frequency power: 150kw

Computer-controlled flying saw
A. Power of automatic controller: 15kw
B. Automatic tracking machine
1. The max .diameter to be cut :Φ76mm
2. The range of cutting length :4m-7m
3. The max. wall thickness to be cut :3.2mm
C. Type : round metal saw blade:Φ400mm×Φ35mm×Φ3.0mm
D. Power of the saw: 15kw
E. Accuracy of the cutting length :within±0.3mm

Discharging table
Conveyed on the rolling way ,reversed pneumatically(with 3kw 6classes motor)
