High Speed Slitting Line

Zhangjiagang City Saibo Science & Technology Co., Ltd.
  • Name：Steel Coil Slitting Machine
  • Steel Thickness：0.4-4mm
  • Steel Width：500-1600(Max)
  • Knife Pivot Diameter：220mm
  • Knife Pivot Material：40cr
  • Blade Material：6crw2si

Base Info

  • Model NO.：0.4-4.0MM Thickness
  • Max Slit Quantity：5 PCS (4mm) ,20 PCS(0.4mm)
  • Transport Package：Sea Packing
  • Specification：CE SGS
  • Trademark：SAIBO
  • Origin：China
  • HS Code：84552210
  • Production Capacity：300set,Year

Description













Steel Coil Parameters















MaterialCarbon steel(4mm) and SS(2mm)Tensile strengthδb≤450Mpa,δS≤260MpaSteel thickness0.4-4.0mmSteel width 500-1600(Max)Steel coil









Slitter Parameters







Knife pivot diameterφ220mmKnife pivot material40CrBlade specificationφ220×φ360×20mmBlade Material6CrW2Si





Slit Parameters



Max slit quantity5 pcs (4mm); 20pcs(0.4mm)Width precision≤±0.05mm/2M













Other Parameters















Power380V/50Hz/3PhLine speed0-100m/minCapacityAbout 250 KwWhole line Dimension25m(L)X8m(W)Operator needed1.mechanical engineer ,2.common workersLine directionFrom right to left(Face to machine)

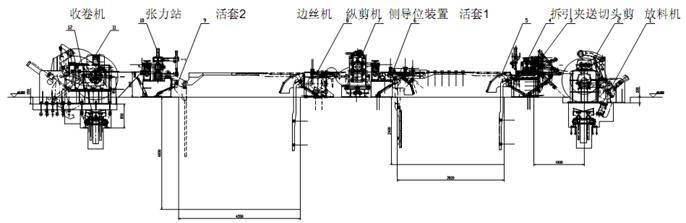

II. Overflow

High Speed Slitting Line

From right to left are: Entry coil car→Decoiler →Press and pinch device→Hydraulic cutter→Looper 1→Side guide device→ Slitter→Scrap winder→Looper 2→Tension stand →Recoielr→Exit coil car


III. Composed device

Name

Quantity

Entry coil car

1 unit

Hydraulic Decoiler

1 pair

Hydraulic Press and pinch device

1 unit

Hydraulic cutter

1 unit

Looper 1

1 unit

Side guide device

1 unit

Slitter

1 unit

Scrap winder

1 unit

Looper 2

1 unit

Tension stand

1 unit

Recoiler

1 unit

Exit coil car

1 unit

Hydraulic system

1 set

Electrical system

1 set Delivery1. Sea shipping.2. Air shipping for sampling.3. Train shipping for landlocked countries serviced by CRExpress Europeblock train ferry.
