• HS Code：84552210
• Production Capacity：20set,Year

Basic Info.

HS Code 84552210 Production Capacity 20set/Year

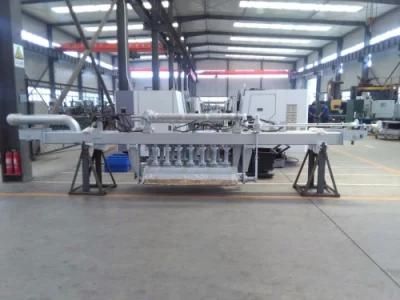

Product Description

Measurement:	About 25,000×3520×2800 mm
Weight:	About 18 T
Control System:	OMRON Coding System
Main Engine:	Cycloid Pinwheel Reducer
Production Speed:	0-3.5m / min

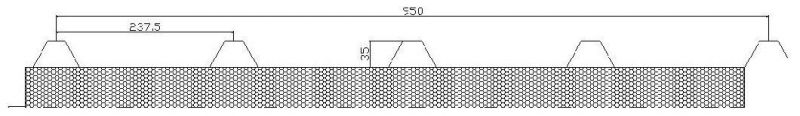

Types of Finished Products:	EPS flat board; EPS matchboard
Voltage:	380V,50HZ,3Phase
Component Parts:	Uncoiler + roll forming machine + compounding machine + cutting machine + delivery rack
Cutting Methods:	Fly saw cutting (milling cutter/click-die cutter)
Roller's Material:	Made of #45 steel, chrome plated
Overall Power:	35kw
The quantity of adhesive glue:	0.1-2.0kg/min
Motor for roll forming machine	Double polar cycloid reducer
Main motor power	2.2kw
Rubber roller shaft diameter	150mm
Fly saw cutting power	4kw
Bubble slot milling machine	2.2kw
Number of main shaft power:	26 pieces
Number of roof shaft	6 pieces
Packing Way:	sea suitable packing
Products Application:	Roofing, Walling

4. Packing & Delivery

1. Deliver time: take goods after receive deposit 60 days
2. Packing: suitable of ocean transportation

5. Warranty

1. Warranty: 1 year warranty from date of shipment
2. Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
-  Damage occurs due to a natural disaster
-  Malfunction occurs due to user error
-  Malfunction occurs due to modifications
-  Malfunction occurs due to further movement or shipment after installation
3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser's account if manufacturer's engineer has to be send to purchaser's factory to maintain the machine during the guarantee period.

6. Payment Term
   30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
