• Model NO.：YX80-300
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• Color：Blue and Yellow
• Speed：30m,Min
• Transport Package：No Packing
• Specification：CE, SGS
• Trademark：SAIBO
• Origin：Jiangsu, China
• HS Code：84552210
• Production Capacity：300sets,Year

Basic Info.

Model NO. YX80-300 Customized Customized Advantage Easy to Maintenance Condition New Color Blue and Yellow Speed 30m/Min Transport Package No Packing Specification CE, SGS Trademark SAIBO Origin Jiangsu, China HS Code 84552210 Production Capacity 300sets/Year

Product Description

1.Main technical parameters:
1. Roll forming machine: C Purlin
2. How to change the size: Automatically changing the sizes, manually changing the cutting mould
3. Line speed: 30m/min It can produce 5 pieces of product in 1 minute ( Product length is 6m)
4. Rolling thickness: 0.6-2mm
5. Control system: PLC (Panasonic)
6. De-coiler: 3 Ton manual un-coiler
7. Leveling station: 1 station (7 rollers, upper3 down 4) with 2 feeding stations
8. Roller stations: About 17 stations
9. Changing motor power: 1.5 KW (3 sets of motor)
10. Roller material: GCR15 steel, coated with chrome
11. Shaft material and DIA: 76mm, material is 45# forge steel
12. Main motor power: 22Kw
13. Hydraulic station power: 11kw
14. Hydraulic pressure: 20Mpa
15. Cutting device: Flying mould cutting, using servo motor driving, servo motor power is 3KW, with linear rail and ball screw
16. Material of cutter: Cr12 quenching 58-62
17. Type of the stations: Cast iron
18. Electric source: 220V-240V, 60HZ, 3 phases
19. Way of drive: 1 inch double rows chain

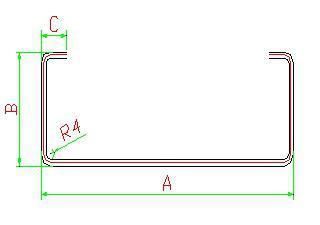

2. Profile

3. Packing & Delivery

1. Deliver time: take goods after receive deposit 60 days
2. Packing: suitable of ocean transportation

4. Warranty

1. Warranty: 1 year warranty from date of shipment
2. Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
-  Damage occurs due to a natural disaster
-  Malfunction occurs due to user error
-  Malfunction occurs due to modifications
-  Malfunction occurs due to further movement or shipment after installation
3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser's account if manufacturer's engineer has to be send to purchaser's factory to maintain the machine during the guarantee period.

5. Payment Term
   30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
