Upright Roll Forming Machine with Chain Driven

Zhangjiagang City Saibo Science & Technology Co., Ltd.
  • Type：Rolling Machine
  • Forging Forming Method：Mold Forging
  • Power Source：Hydraulic Pressure
  • Feature：High Efficiency
  • Certification：ISO9001, CE
  • Warranty：12 Months

Base Info

  • Model NO.：Upright
  • Customized：Customized
  • Advantage：Use Widely
  • Condition：New
  • Product Name：Upright Roll Forming Machine
  • Thickness：1.5-3.0mm
  • Transport Package：No Packing
  • Trademark：SAIBO
  • Origin：Jiangsu, China
  • HS Code：84552210
  • Production Capacity：300sets,Year

Description

NoSpecification of the material

1

Suitable MaterialCarbon steel

2

Width of the raw materialBased on the purlin sizes.3Thickness1.5-3.0mm

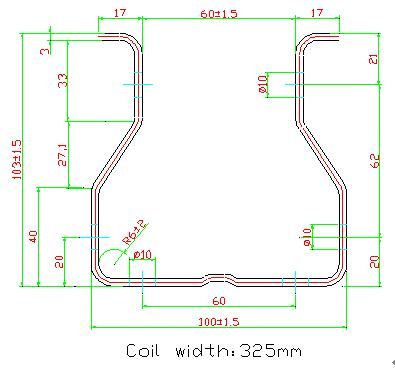

Profile drawing

Upright Roll Forming Machine with Chain Driven

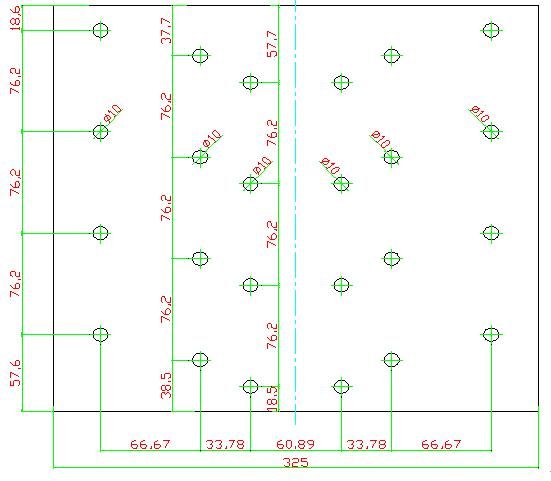

Punching drawing

Upright Roll Forming Machine with Chain Driven

The Chart of Process Flow

Un-coiler-leveling-servo feeding-punching machine-feeding-Roll Forming-Cutting-out table


Specification of Components

No Technical Specification & Remark1

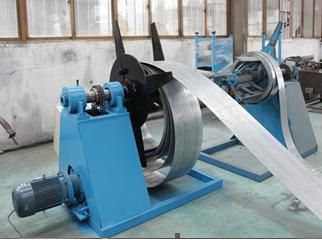

Electrical Un-coiler

Upright Roll Forming Machine with Chain Driven

  • Steel coil width: 500 mm
  • Maximum coil weight: 3000 Kg
  • Main motor power: 5.5KW
2

leveling

Upright Roll Forming Machine with Chain Driven

  • Level the sheet to be flat
  • The speed can be control by the inverter inside the control box
  • The power: 5.5kw
3

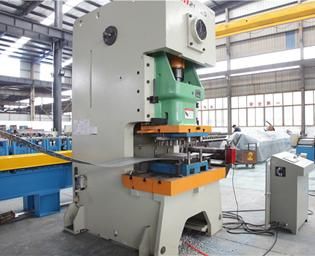

Servo motor and puching machine

Upright Roll Forming Machine with Chain Driven

  • Model: Jh21-63
  • Brand: Yangli
  • servo motor power: 2.2kw
  • punching mold: big punching, Cr12material
4

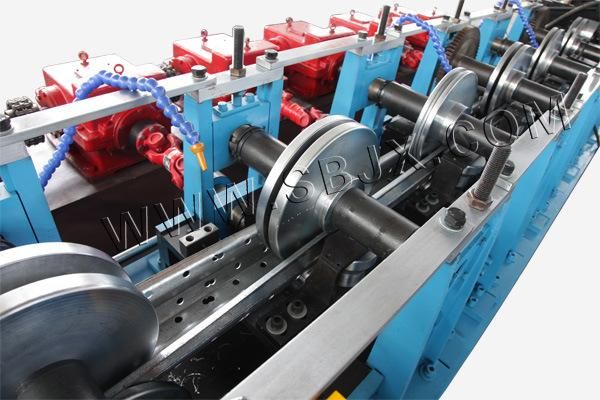

Main Roll Forming Machine

Upright Roll Forming Machine with Chain Driven

  • Roll station:18stations+ 1 station of torque head
  • Roller material:Gcr15, 58-62,HRC hardness and chrome plated surface
  • structure: cast iron
  • drive: by chain

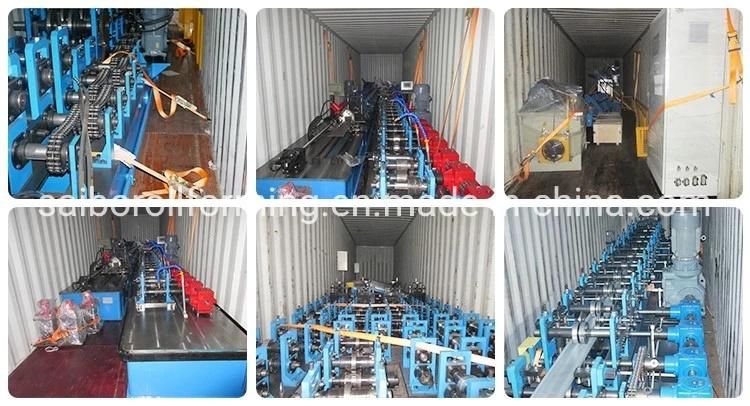

  Delivery1. Sea shipping.2. Air shipping for sampling.3. Train shipping for landlocked countries serviced by CRExpress Europeblock train ferry.
Upright Roll Forming Machine with Chain Driven
About Saibo
Upright Roll Forming Machine with Chain Driven
Saibo Science & Technology - 20 Years Experience Manufacturer in Developing and Exporting.Zhangjiagang City Saibo Science & Technology Co., Ltd. is a professional manufacturer specializing in the developing and exporting of different kind of high speed roll forming machine, Main use of our roll forming machine is for Solar Structures, PEB project and also for Cable tray, Guard Rail, Roofing Sheets, Floor Decking and all of the different kind purlin/channel which makes from GI/PPGI/PPGL/Aluminium/Aluminium alloy/SS . Our company, which is located in Zhangjiagang city, Jiangsu province, near Shanghai City with superior geographic position and convenient transportation.
Upright Roll Forming Machine with Chain Driven

We engaged in the steel structure industry in 20 years and devoted to developing some steel structure machines with professional technology and reasonable price, we supply the best machines for our new and regular customers. All of our technology team and marketing person all more than 10 years working. In particular, we are a leading exporter in the field of steel structure construction and can provide professional service, high quality,  through design, and installation. Our goal is" future by heartiness, faith leads to the world".
Upright Roll Forming Machine with Chain Driven

International certification, National Certificate of equipment verification, and more than 30 invention patents are done in Saibo Machinery.

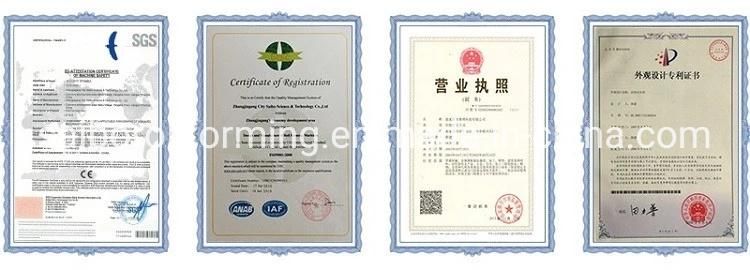

Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV
