• Model NO.：CY-16-PW
• Vibration Speed：400-2000rpm
• Vacuum Chamber：Quartz Glass Tube
• Control Panel：Touch Screen Panel
• Suggested Particle Size：1 ~ 1000 Microns
• Keywords：Powder PVD Coater
• Warranty：One Year
• Transport Package：Wooden Box
• Specification：2 inch
• Trademark：CY
• Origin：Zhengzhou, China
• HS Code：8486202200
• Production Capacity：210 Sets Per Month

Basic Info.

Model NO. CY-16-PW Vibration Speed 400-2000rpm Vacuum Chamber Quartz Glass Tube Control Panel Touch Screen Panel Suggested Particle Size 1 ~ 1000 Microns Keywords Powder PVD Coater Warranty One Year Transport Package Wooden Box Specification 2 inch Trademark CY Origin Zhengzhou, China HS Code 8486202200 Production Capacity 210 Sets Per Month

Product Description

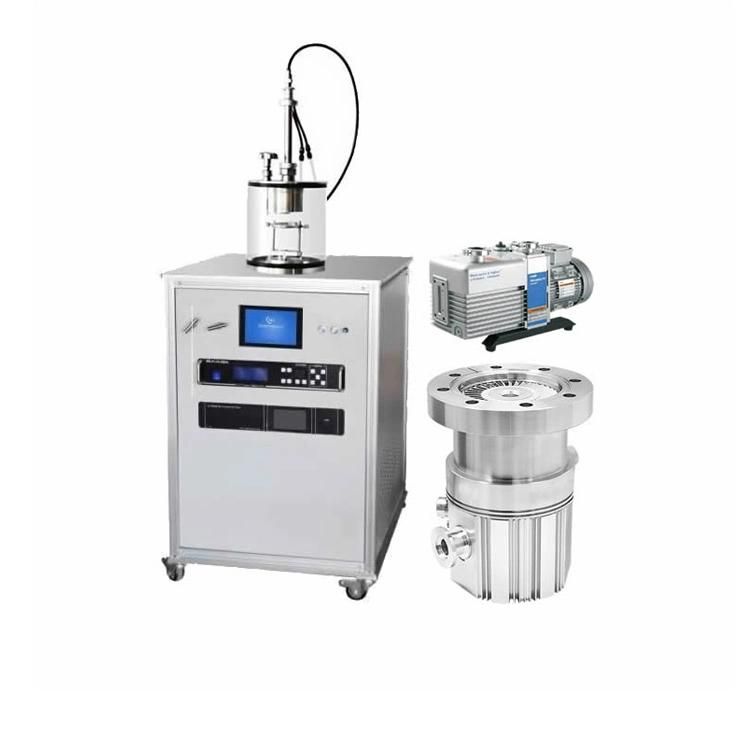

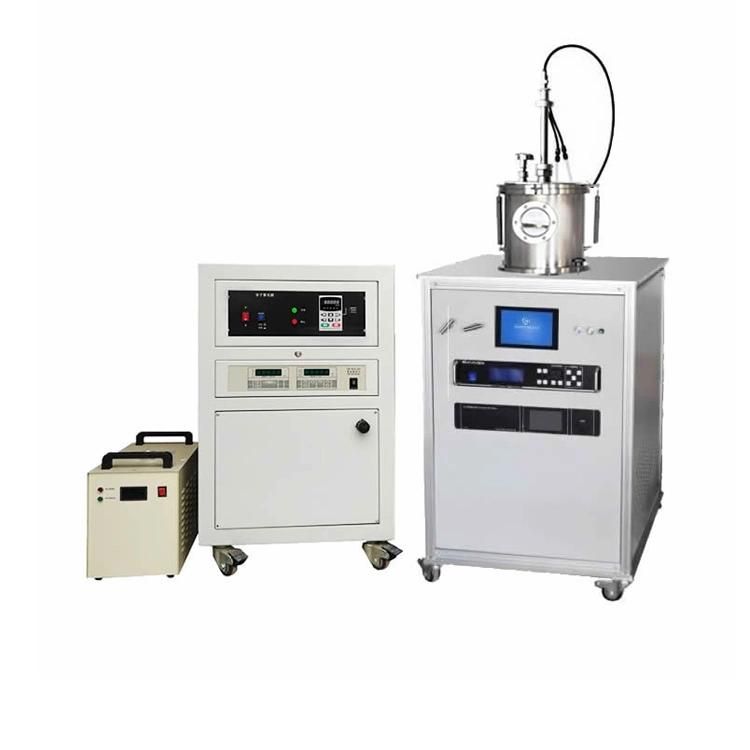

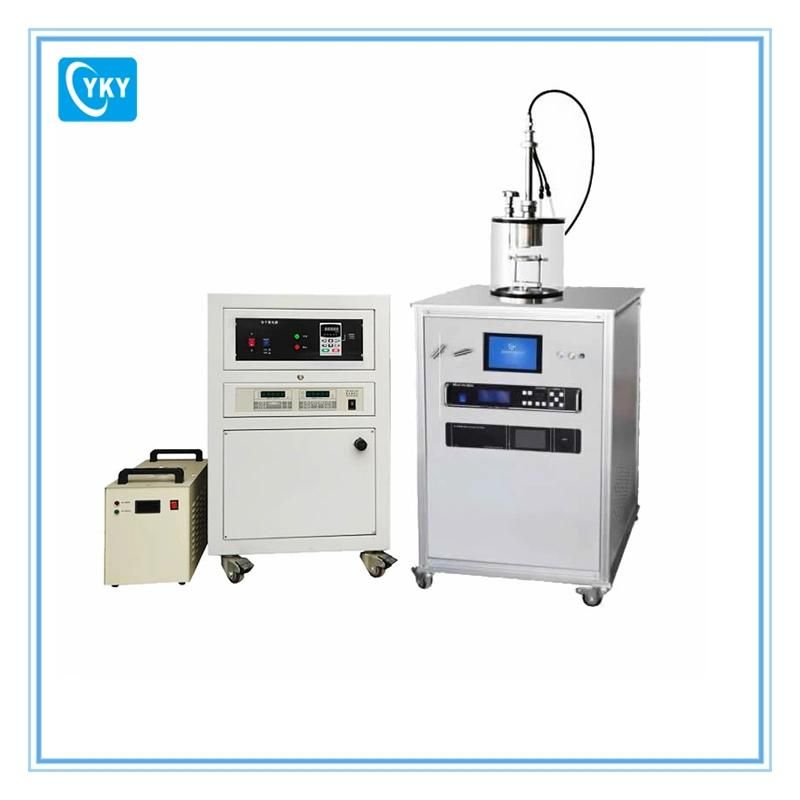

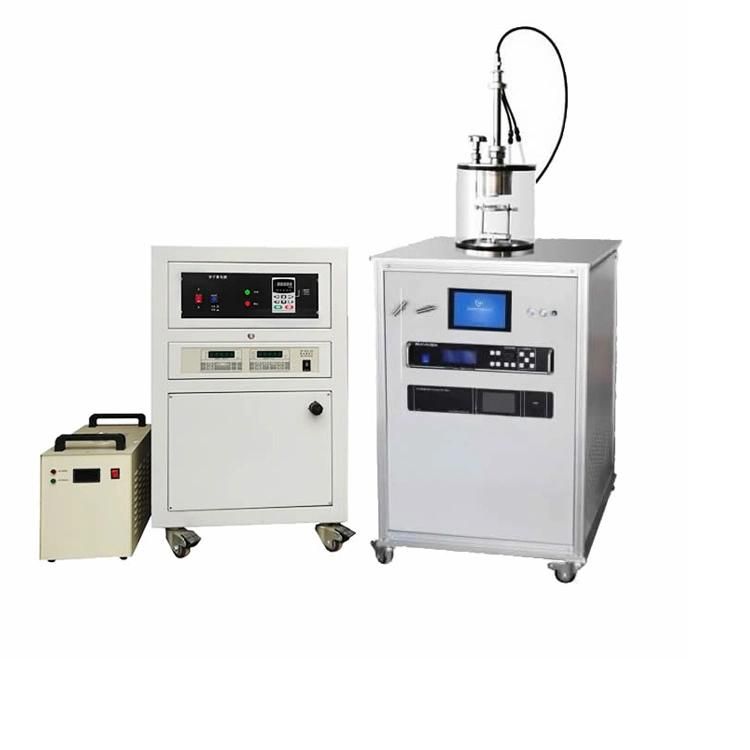

Compact Powder PVD Coater with DC Magnetron Sputtering & Vibration Stage
 is a compact powder PVD coater, which consists of 2" water cold magnetron sputtering head and vibration stage. The particles will jump on the vibration stage during coating and form a core-shell structure. The DC magnetron sputter is suitable for coating for metallic materials. RF power source is optional for non-conductive material or carbon. The coater will be useful for preparing special powder for 3D printing and solid state electrolyte powders.


Input Voltage	220 VAC 50/60Hz  110 V power is available by using a 1000 W transformer (15 A fuse). The transformer is sold separately
Output Power	1600 VDC 250 W 150 mA max. Built-in over current protection (>150 mA)
Sputtering Head	2" flexible magnetron sputtering head with water cooling jacket is included  One manually operated shutter for target protection Sputtering head holder is available for holding sputtering head while non-operation The distance between the sputtering head and sample stage is adjustable from 60 - 100 mm One Water Cold Recirculating Water Chiller 16 L/min Flow is included for cooling sputtering head
Vibration Stage	The vibration stage is built-in the bottom of the vacuum chamber The vibration speed is adjustable from 400 - 2000 RPM (6 - 33 Hz) One 2" container of powder is placed on the vibration stage. It will rotate during the vibration Suggested powder quantity: < 500 mg max. Suggested particle size: 1 ~ 1000 microns
Vacuum Chamber	Quartz glass tube, 165 mm OD. X 150 mm ID x 250 mm Height
Control Panel	6" color  touch-screen control panel with PLC integration for easy operation One panel for all parameters monitor and control: vacuum, current
Ultimate Vacuum Pressure	Built-in KF25 vacuum port The system requires an Ar gas tank with pressure regulator (not included)
Gas Atmosphere	One needle valve installed to allow Ar gas inlet to achieve better plasma coating The system requires an Ar gas tank with the pressure regulator (not included)
Target	One 2" Copper target is included for testing, target size: 2" Dia. x 2.5mm It also can coat Ag, Al, Cr, Ni, Pt, Ti, Sn, Li, Mg, etc. almost every kind of metallic material Warning: Aluminum, Chromium or Nickel can be coated by this machine Please using RF Plasma Magnetron Sputtering coater for coating non-conductive materials and carbon
Net Weight	20 kg
Shipping Weight & Dimension	160 lbs 45" x 45" x 40"
Compliance	CE approval
