• Model NO.：DRS
• Power：Hydraulic
• Color：Optional
• Warranty：3 Years
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Control System：Durama Estun E21 Nc Contro
• Model：QC12y
• Voltage：380V,50Hz,3pH(220V,60Hz,3pH Available)
• Main Motor：Siemens From Germany Braand
• Name：Cutting Machine
• Certification：SGS, ISO 9001:2008, Ce
• Transport Package：Channel Steel
• Specification：Plate Cutting Machine
• Trademark：DURAMA
• Origin：Nanjing China
• HS Code：84623990
• Production Capacity：200 Sets, Month

Basic Info.

Model NO. DRS Power Hydraulic Color Optional Warranty 3 Years After-Sales Service Provided Engineers Available to Service Machinery Overseas Control System Durama Estun E21 Nc Contro Model QC12y Voltage 380V,50Hz,3pH(220V,60Hz,3pH Available) Main Motor Siemens From Germany Braand Name Cutting Machine Certification SGS, ISO 9001:2008, Ce Transport Package Channel Steel Specification Plate Cutting Machine Trademark DURAMA Origin Nanjing China HS Code 84623990 Production Capacity 200 Sets/ Month

Product Description

 DURAMA Hydraulic Cutting Machine,  Hydraulic Guillotine
Plate Cutting Machine, Metal Cutter, Stainless Cutting Machine with Estun E21 Controller

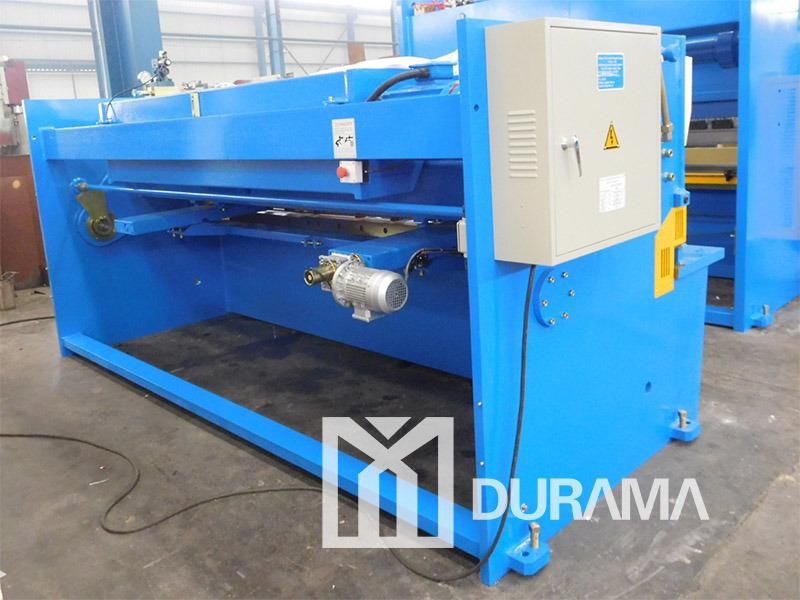

Hydraulic Swing Beam Shearing Machine With E21 NC
The model of this hydraulic swing beam shearing machine is DRS series ( QC12Y-series ),Hydraulically driven blade holder, retracted by cylinder accumulator, convenient, reliable and elegant;E21  control the backgauge position and count the cutting time.

Basic features for DRS series hydraulic swing beam shearing machine
• Steel welded structure with stress-free for reliable performance
• Hydraulically driven blade holder, retracted by cylinder accumulator, convenient, reliable and elegant

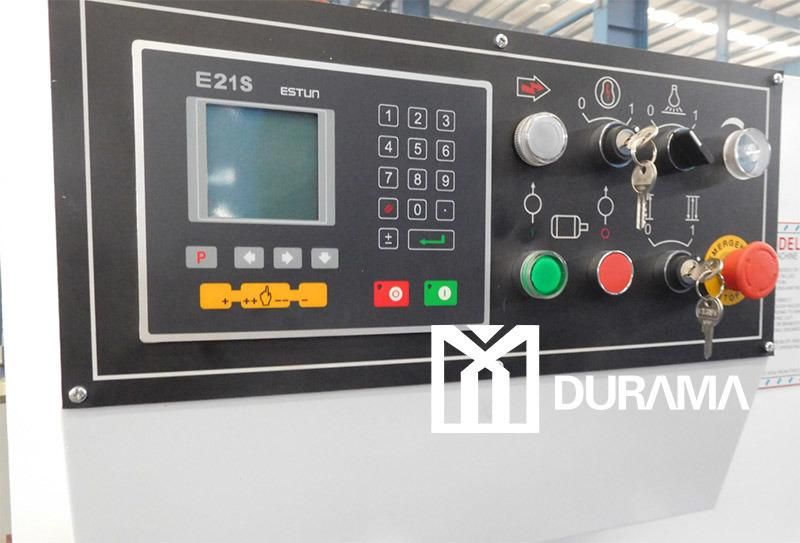

• E21 control the backgauge position and count the cutting time

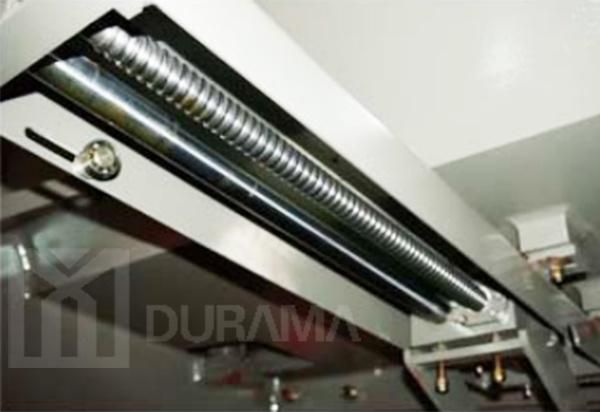

• Motorized back gauge installed with ball screw and slick rod for high precision

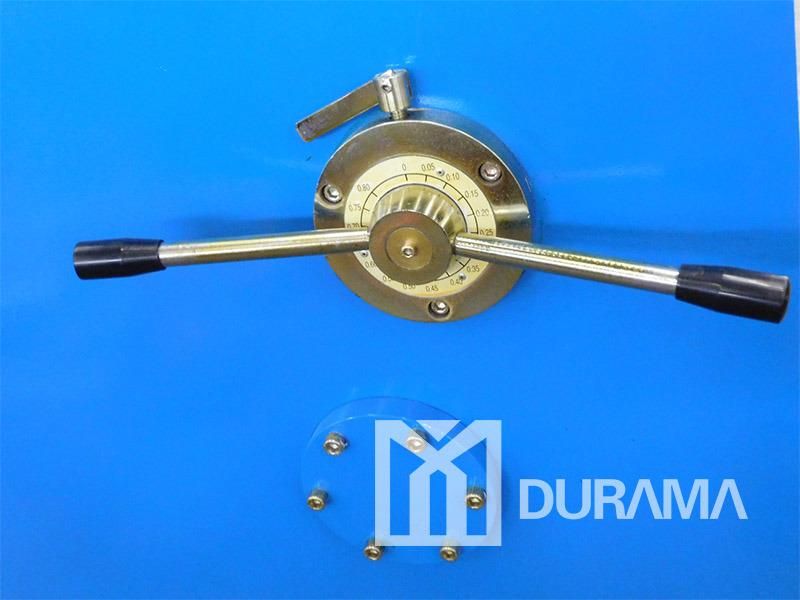

• Indicator-based adjustment of blades clearance is easy, convenient and swift



• Top blade with 2 cutting edges bottom blade with 4 cutting edges to provide a longer life span and reducing down time
• Blades with high tensile strength for cutting carbon steel and stainless steel
• Full or short stroke adjustment of blade holder to achieve high efficiency and productivity
• Shadow line lighting,
• Foot switch for operation with emergency stop
• Transfer balls on table and front support arms for easy feeding



• Cutomized power connection voltage, such as 3phase, 220V, 60Hz in South Ameirca,etc

DRS-series hydraulic swing beam shearing machine optional elements
• Cut piece sliding slope
• Light curtain for fingers safety
• Wind turbine coolant



General optional elements for DRS series hydraulic swing beam shearing machine
Hydraulics, Electrics, Oil pump, CNC controllers


Technical Parameters:


Model	Cutting thickness (mm)	Cutting width (mm)	Shearing angle	Strokes (min-1)	Banggauge range(mm)	Main Motor (kw)	Weight (kg)	Overall Dimensions L×W×H(mm)
DRS-425	4	2500	1°30'	≥18	20-600	7.5	4,800	3040×1610×1650
DRS-432	4	3200	1°30'	≥14	20-600	7.5	6,400	3840×1610×1650
DRS-440	4	4000	1°30'	≥10	20-600	7.5	7,900	4640×1705×1700
DRS-450	4	5000	1°30'	≥10	20-600	7.5	16,000	5786×2200×2160
DRS-625	6	2500	1°30'	≥18	20-600	7.5	5,500	3040×1610×1650
DRS-632	6	3200	1°30'	≥14	20-600	7.5	6,600	3840×16100×1650
DRS-640	6	4000	1°30'	≥10	20-600	11	8,500	4640×1705×1700
DRS-650	6	5000	1°30'	≥10	20-750	11	16,000	5786×2200×2060
DRS-660	6	6000	1°30'	≥10	20-800	11	17,500	6730×2090×2180
DRS-825	8	2500	1°30'	≥14	20-600	11	6,000	3040×1610×1650
DRS-832	8	3200	1°30'	≥10	20-600	11	7,000	3840×1610×1650
DRS-840	8	4000	1°30'	≥8	20-600	11	9,200	4680×1705×1700
DRS-850	8	5000	1°30'	≥7	20-600	15	21,000	5786×2252×2310
DRS-832	8	6000	1°30'	≥5	20-750	15	28,000	6900×2570×2280
DRS-1025	10	2500	2°	≥11	20-750	15	8,500	3350×2050×1950
DRS-1032	10	3200	1°48'	≥10	20-600	15	9,500	4050×2050×1950
DRS-1040	10	4000	2°	≥12	20-600	18.5	14,500	4800×2200×2100
DRS-1225	12	2500	1°40'	≥11	20-800	15	8,500	3350×2050×1950
DRS-1232	12	3200	1°40'	≥10	20-600	18.5	12,500	4020×2050×2230
DRS-1240	12	4000	1°40'	≥8	20-800	18.5	18,000	4820×2400×2300
DRS-1625	16	2500	2°20'	≥8	20-800	18.5	11,500	3445×2477×1880
DRS-1632	16	3200	2°20'	≥7	20-800	18.5	13,800	3945×2477×2035
DRS-1640	16	4000	2°20'	≥5	20-800	18.5	15,300	4745×2477×2035
DRS-2025	20	2500	2°30'	≥6	20-800	30	16,000	3440×2088×2570
DRS-2032	20	3200	2°30'	≥5	30-800	30	18,000	4150×2350×2710
DRS-2040	20	4000	2°30'	≥5	30-1000	37	21,000	4920×2400×2730
