• Model NO.：Q-100B
• Power Source：Electric
• Cutting Mode：Saw Cutting
• Cutting Diameter：100mm
• Transport Package：Plywood Exporting Package
• Specification：160KG 850*850*950MM
• Trademark：HST
• Origin：Jinan, Shandong, China
• HS Code：9024109000
• Production Capacity：1500 Sets,Month

Basic Info.

Model NO. Q-100B Power Source Electric Cutting Mode Saw Cutting Cutting Diameter 100mm Transport Package Plywood Exporting Package Specification 160KG 850*850*950MM Trademark HST Origin Jinan, Shandong, China HS Code 9024109000 Production Capacity 1500 Sets/Month

Product Description

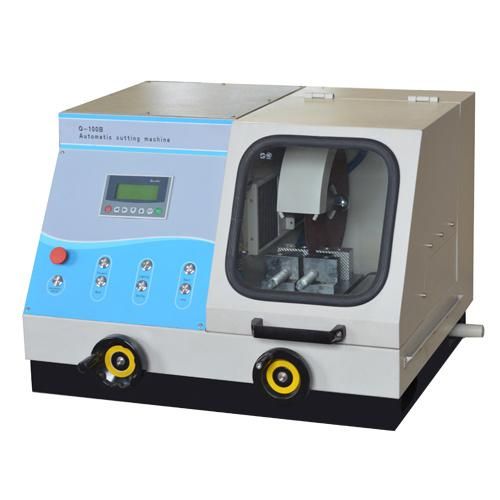

Q-100B Automatic Metallographic Sample Cutting Machine with Cutting Diameter 100mm





1. Application:
Model Q-80Z  manual / automatic metallographic specimen cutting machine is equipped with big cutting room and movable T-shape work table. Therefore this machine has the ability of cutting rectangle and large specimens. Also the equipped separate type vice is very convenient for operator to clamp various heterotypic work pieces. Various cutting data can be displayed on high definition backlight type LCD screen.  Manual cutting and automatic cutting means can be switched at will. Large cutting chamber, tempered glass observing window and it is equipped with 60L cooling liquid water tank. Non-burning loss swing type cutting means which improved the cutting quality Automatic withdraw function after cutting is finished, bidirectional feeding means increase the length of deep cutting.
2. Main specifications:

Model	Q-80Z TEL: 8615098778967
Display	LCD with high resolution back lit dot matrix
cutting disc rotating speed (Sand wheel rotating speed)	2100rpm
Max. Cutting diameter	80mm
Cutting disc specification (Sand wheel specification)	350 X2.5 X32mm
Biggest moving route	125mm
power supply	three phases with four cables, 380V, 50Hz
Motor	2.2kw
Dimension	835 x 850 x 620mm

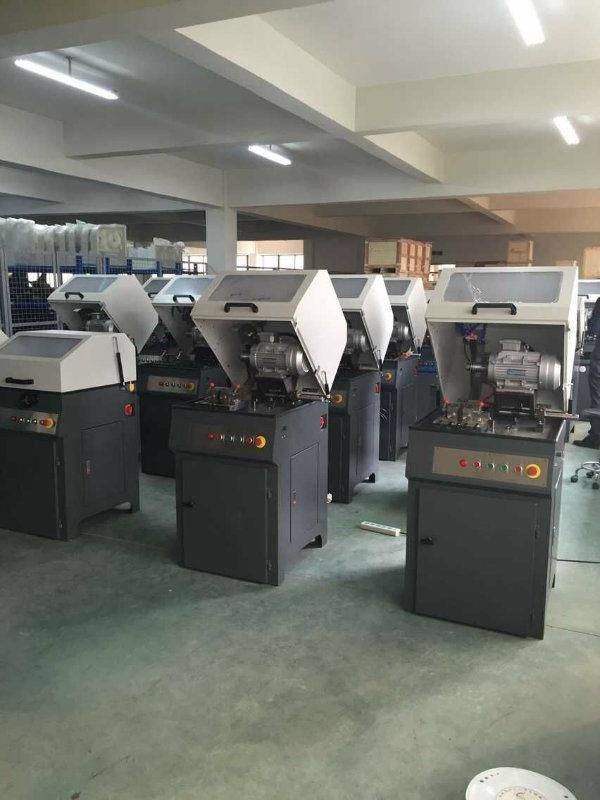

Detailed Pictures:
