• Model NO.：CY-NFES-3
• Input Power：208~240 VAC Single Phase
• Transport Package：Wooden Case
• Specification：1000mm * 880 mm *1370 mm
• Origin：Henan, China
• Production Capacity：100,Month

Features

Software control of various features like mandrel rotating speed, duration, syringe pump flow rate, X, Y stage speed, etc.

Rotating mandrel targets of varying diameters, Y-stage target, and stationary plate target are provided with the system.

Stand-alone fume hood has features like exhaust fan, halogen lighting, and transparent door for monitoring electrospinning process

Built-in arc protection circuit

Input Power

208~240 VAC single phase (For 110 VAC, please order a 3000W transformer)

Max power consumption: 1500 W

High Voltage Power Supply

0 - 30 kV single output, 0.5 mA max current

Digital voltmeter and current meter

Electrostatic removal device - discharge stick is integrated to the fume hood

Constant current / constant voltage modes available

Built-in arc protection circuit. Normally for the electrospinning process, current < 5 μA. Please limit current < 20 μA to avoid high voltage arcing damage

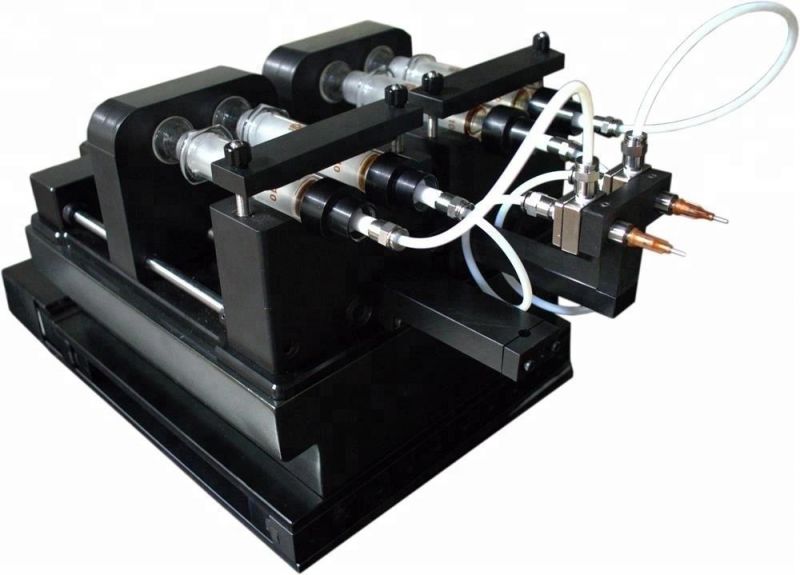

Dual-channel Syringe Pump

Dual-channel syringe pump with independent speed control allows syringes to eject solution at different rates.

Four syringe dispensing systems are included and controlled by the software. (Two syringes per group at the same pump rate)

Compatible with standard 2.5 to 50 mL glass syringes

Pumping rate: 1 uL/min - 35 mL/min for the included 20 mL syringe

Syringe holder made of insulating material to work under high voltage conditions

Programmable X motion profile to control the film coating characteristics

Moving resolution 1mm.

In standard package, only the standard high voltage alligator clip support is included. The 3-axis support and T shape dual 3-axis nozzle support are not included.

Attention: Please use the glass syringes. Due to the safety concerns, do not use the disposal plastic syringes.

Mandrel Collector

Plate Collector

Y-Stage Collector

Three types of collectors are included as standard accessory

Mandrel collectors for electrospinning

7 sets with various size: 200 mm length x 100, 75, 25, 12, 6, 2 mm Dia.

Actuator: Microprocessor controlled BLDC motor with hall sensor feedback

Speed: 400 to 3500 rpm adjustable with stability: +/-1%

PC-based control of speed and duration

Rotating mandrels can be used as a target to get an aligned continuous mesh of nanofiber

Plate collector for nanofiber-collecting

320 mm x 100 mm x 2 mm thick stainless steel plate with grounding

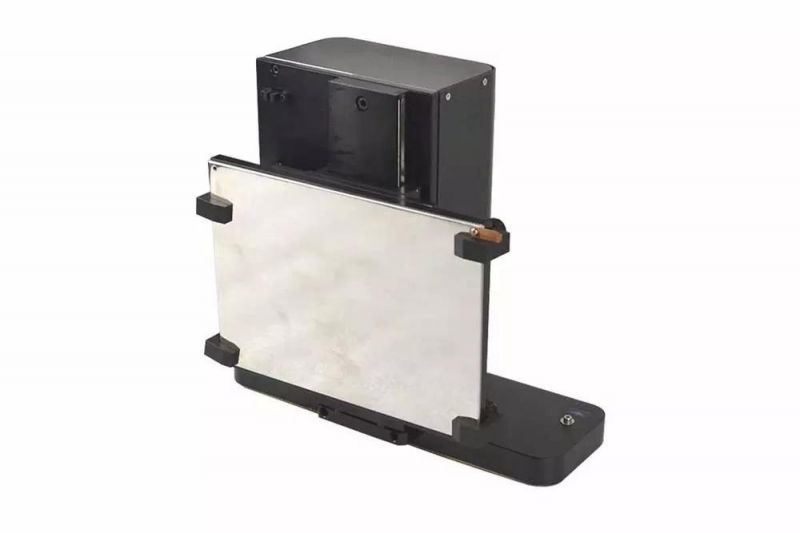

Y-stage collector for flat film coating

Stage dimensions 250 mm x 175 mm x 2 mm thick

Plate material: Stainless steel

Programmable Y motion profile to control the film coating characteristics

PC-based control of speed, movement profile, and duration

Moving Resolution 1mm

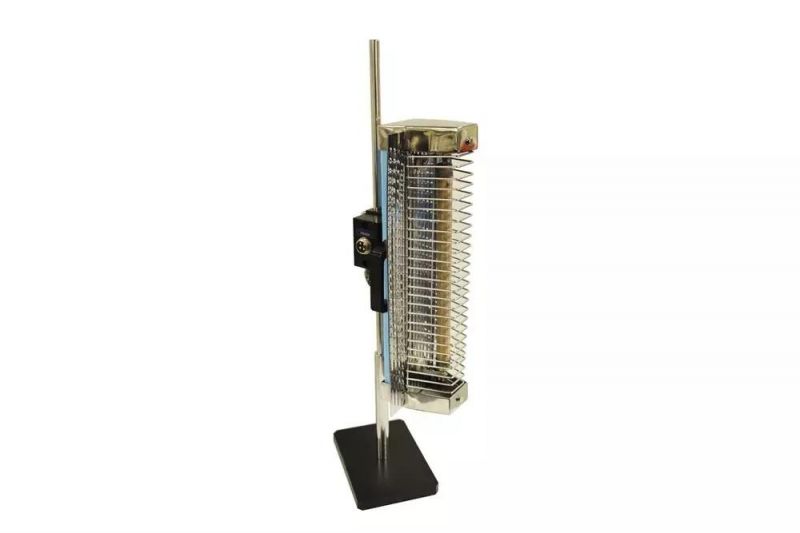

Lamp Heater

Halogen lamp heater with thermal couple and digital temperature controller are integrated into the fume hood for environmental heating up to 40 ºC

Max power: 1000 W

Humidity Monitor and Control

Humidity monitor is integrated into the fume hood for monitoring the humidity level (RH%) ranging from 2% - 95%

Optional compact Peltier dehumidifier (not included) can be integrated and controlled by the humidity monitor for continuous humidity control down to ~20 % RH for the fume hood

Ultrasonic Spray (Optional)

You may add an ultrasonic head to upgrade the equipment as ultrasonic-electro-spray

Warranty

One-year limited warranty with lifetime support

Compliance

CE certified

Dimensions

Total: 1000 mm L x 880 mm W x 1370 mm H
