• Model NO.：CY-MP-1B
• Heatable Vacuum Bed：Heating up to 100c
• Transport Package：Wooden Case
• Specification：805mm(L) * 435mm(W) * 565mm(H)
• Origin：Henan, China
• Production Capacity：100,Month

Features

Linear configurated 5 syringe needles ensures a uniform coverage over up to 160mm width.

Automatic roll to roll system with precise rolling speed control.

Heating bed up to 100C for coating bake-out.

Syringe pump provides a constant stream flow of polymer base solutions.

Single voltage supply cable minimizes the repulsion of the jets between the spraying heads.

Removable spraying heads accommodates various coating widths.

Spraying Head (Needle) and Supporting Stand

Hight and position adjustable supporting stand

Removable Spraying Heads (up to 5 needles).

Single Voltage input cable minimizes the repulsion of the jet between the needles.

Distance between each needle: 25mm

Needle O.D.: 0.9mm

Needle I.D.: 0.6mm

Needle Length: 12mm

Maximum distance from needle to heating bed: 235mm

Minimum distance from needle to heating bed: 70mm

High Voltage Power Supply

0 - 50 kV single output, 1 mA max current

Digital voltmeter and current meter

Output voltage and current can be set by using knobs on the front panel and read from the digital display

Constant current / constant voltage modes available

AC 220V, 50/60Hz, 50W max power consumption

Dimension: 155mm(L) x 245mm (W) x 125(H)

Syringe Pump

LCD touch screen controlled infusion syringe pump for precise solution feeding.

Easy to use.

Pumping rate 0.1 - 45mm/min

Travel Range: 0.001 - 120mm

Micro speed adjustment : 0.01 - 8mm/min

A 250ml Syringe is included for immediate use.

208 - 240 VAC

Dimension: 300mm(L) x 265mm(W) x 260 mm (H)

Heatable Vacuum Bed

Heating bed for solution drying

PID temperature controller with the precision of +/- 1C.

Heats up to 100C

208 - 240 VAC

2000W Max Power.

Roll to Roll System

Compact roll to roll system up to 200mm width

Motor rpm (Controller display) Range: 1 ~ 41rpm

Gear Head's reduction ratio: 100k

Actual substate traverse speed range: 2.2 mm/s ~ 117.2 mm/s

110VAC

Dimension

Heatable Vacuum Bed with the Roll to Roll system and stand

Total dimensions: 805mm(L) x 435mm(W) x 565mm(H)

The height of the Vacuum Bed: 180mm.

The height of needle holder: 385mm.

Warranty

One-year limited warranty with lifetime support

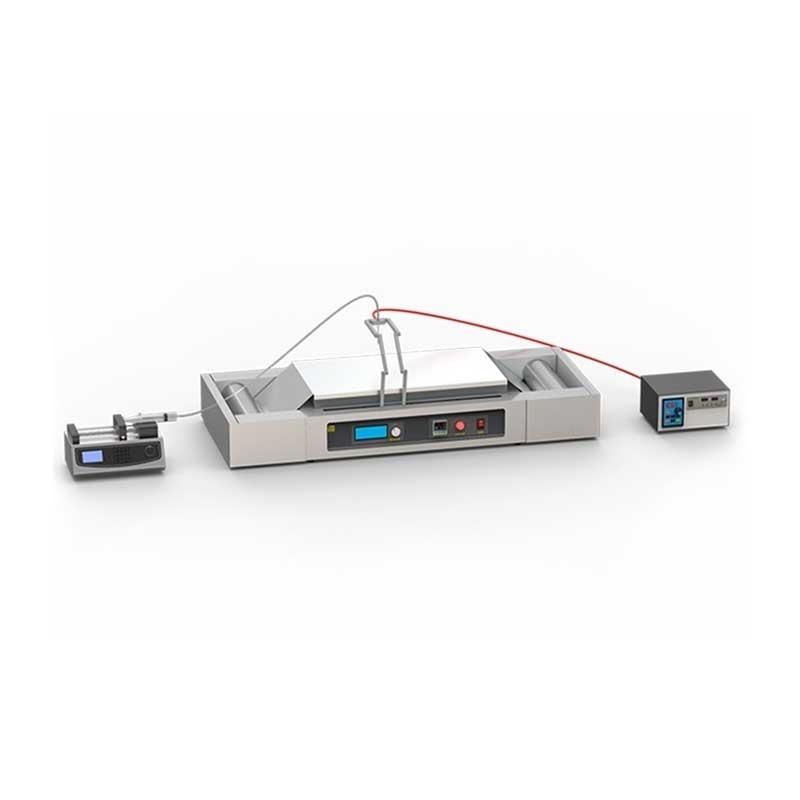

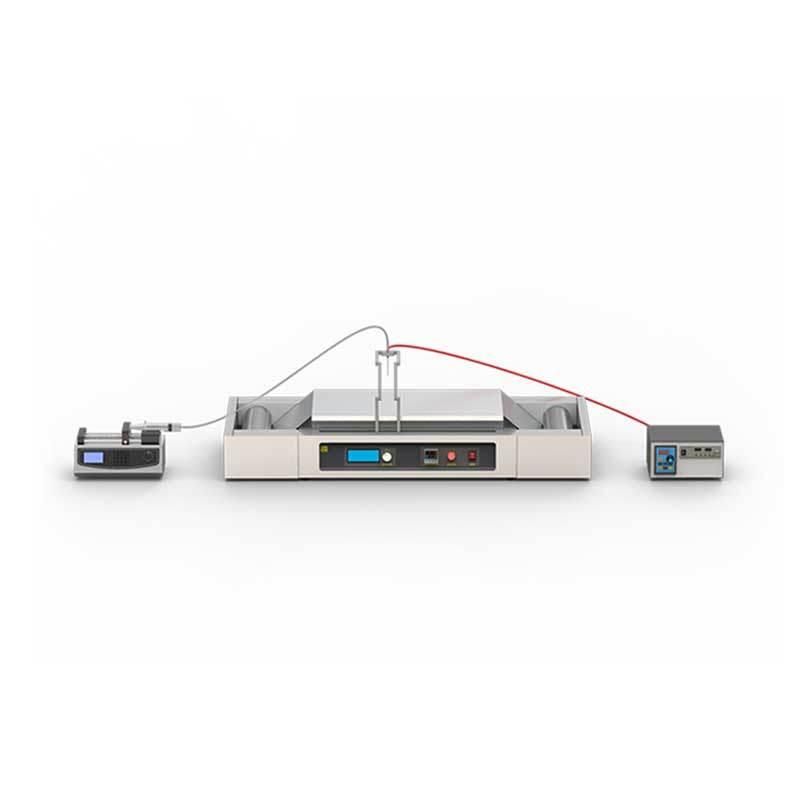

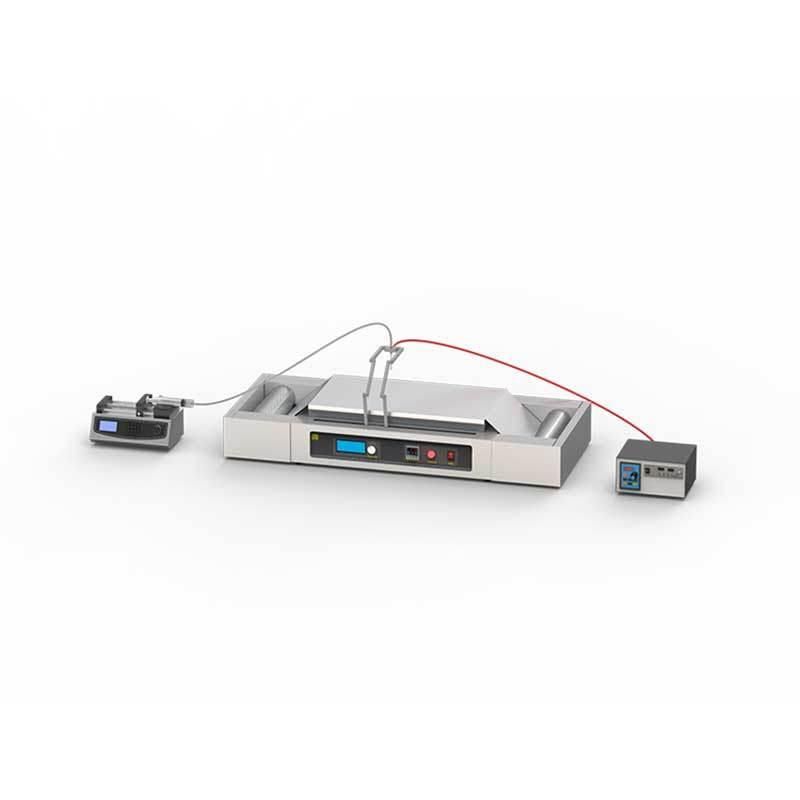

Detailed Pictures
