• Model NO.：colo-3000r
• Model：Powder Cycling and Recovery System
• Dimension(L*W*H)：63X62X110cm
• Weight：50kg
• Powder：50W
• Voltage：220V,110V,380V 3phases
• Gun Weight：500g
• Travel：1.5,1.8,2,2.5m
• Cabniet：4PCS, 6PCS, 8PCS
• Hopper：55*55cm
• Transport Package：Wodden Case
• Specification：CE
• Trademark：COLO
• Origin：Hangzhou. China
• HS Code：8424899990
• Production Capacity：1000PCS

Basic Info.

Model NO. colo-3000r Model Powder Cycling and Recovery System Dimension(L*W*H) 63X62X110cm Weight 50kg Powder 50W Voltage 220V/110V/380V 3phases Gun Weight 500g Travel 1.5/1.8/2/2.5m Cabniet 4PCS, 6PCS, 8PCS Hopper 55*55cm Transport Package Wodden Case Specification CE Trademark COLO Origin Hangzhou. China HS Code 8424899990 Production Capacity 1000PCS

Product Description

Automatic powder coating cycling and recovery system
1.Description
Easliy cleaning and color alteration, and good airproof property
High powder utilization rate
Size of the powder supply barrel stainless steel 560x560x560mm
Input frequency stainless steel screen Diameter 360mm 50-100mm optional

2.automatic machine including


Powder sieving machine	colo-3000
Manual Powder coating machine	colo-800D
Control cabinet	For 8pcs control
Reciprocator	colo-2000D

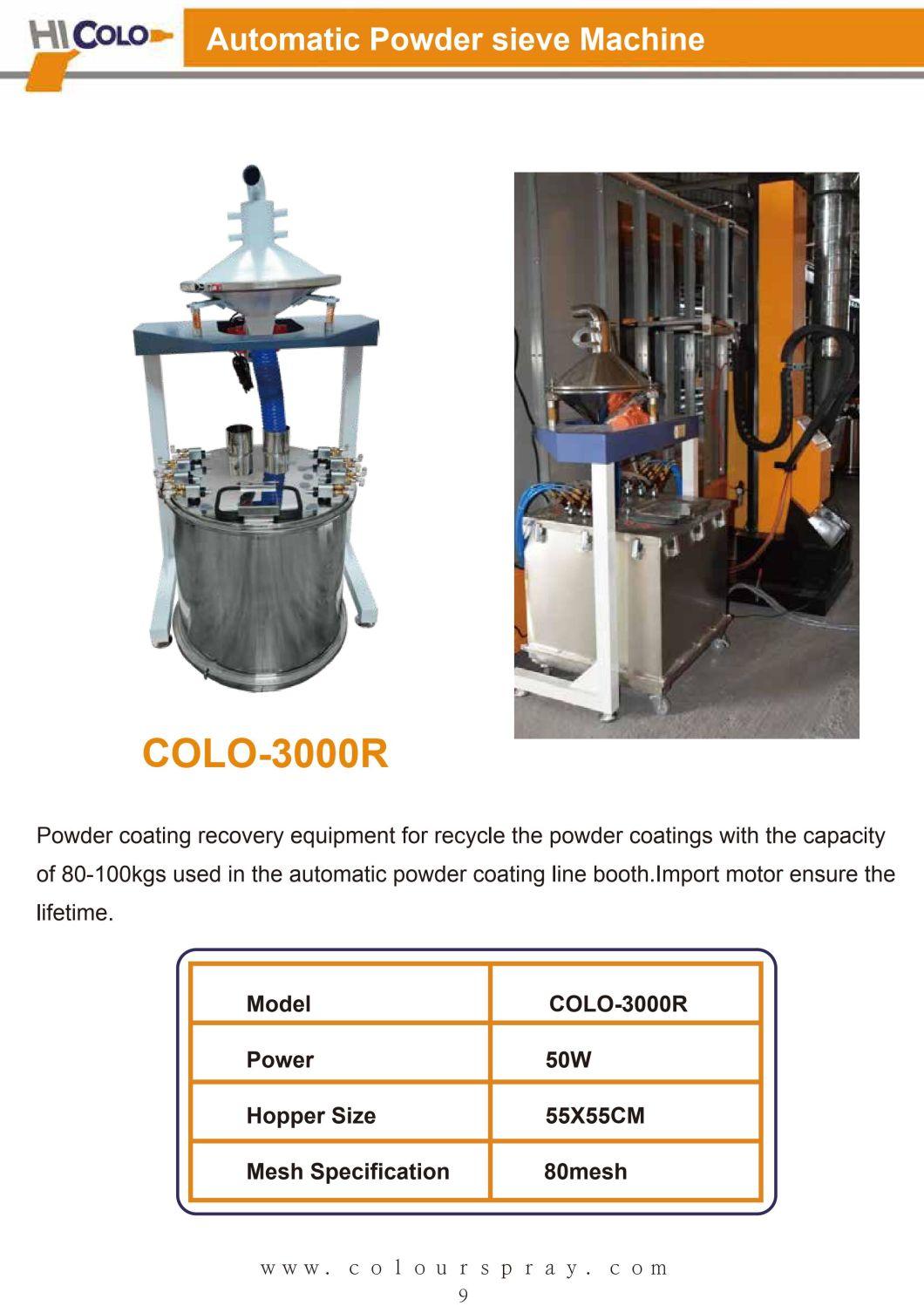

3. Powder Coating Recovery Machine/Automatic Powder Sifter/Powder sieving machine

1. For automatic powder coating guns or manual powder coating guns.
2. Work together with reciprocator, controller, auto gun, controller cabinet, hopper.
3.120cm*80cm*80cm
4. Weight: 40kgs
5. Voltage: 100-240v
6. Power(W): 50w

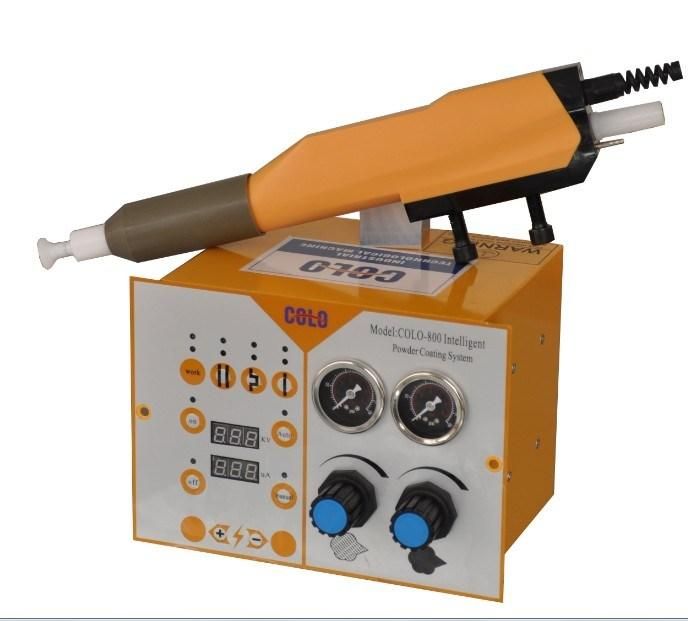

4. Automatic powder coating machine

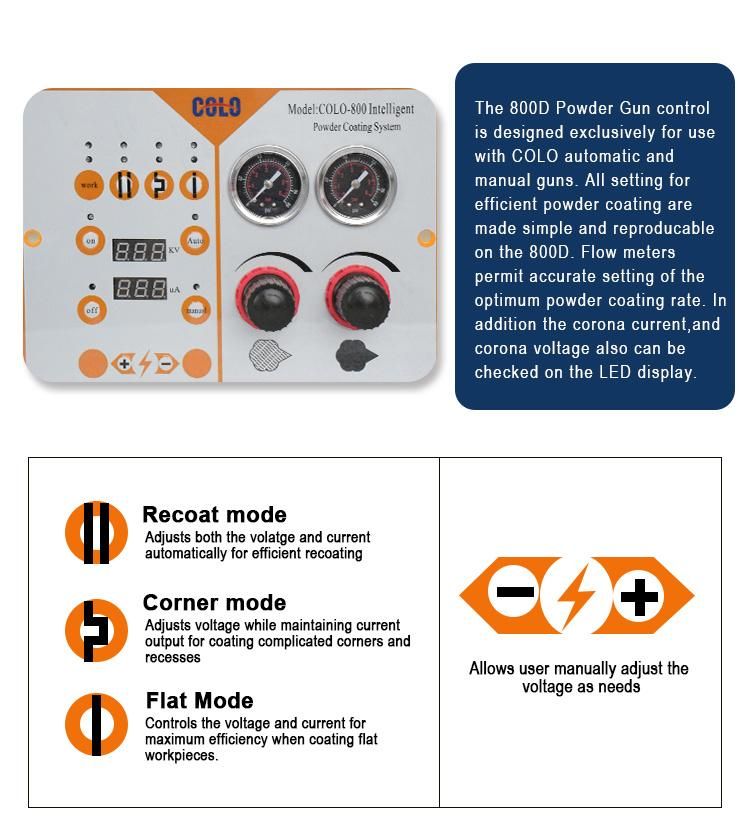

1. Colo-800D with digital display
2. Character: Controller has one-touch intelligent operation button good for flat parts, complicated parts and recoat parts
3. Carton size: 120x79x73cm
4. G. W: 55kg

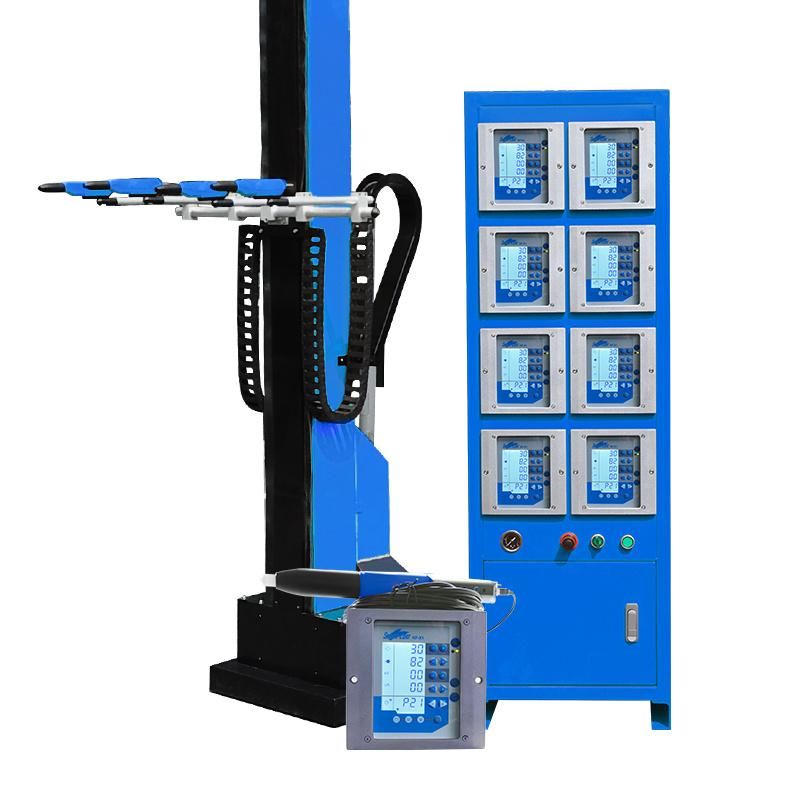

5.reciprocator
1. High-quality inverter. Digital intelligent model
2. Wheel back and forth movements
3. Standard travel: 1.5m/2m/2.5m(can be ordered)
4. Four automatic spray gun rods(qty of the rods can be ordered)
5. Colour can be ordered

6.total set
China Powder coating gun, China powder coating machine, China powder coating system, China powder coating equipment, powder coating control unit

1. This is only for control unit cabinet without controllers
2. for 4 controller, 6 controller, 8 controller, 10 controller, all can be order, but the price will change
3. Control cabinet
4. Reciprocator/Robot

The Powder Coating Equipment is able to continuously sent the powder being dropped during the process of spraying to the upper part of the butterfly powder screen and then the selected powder is sent to the centralized powder supply barrel which is in charge of continuously supplying powder to automatic guns or manual guns
