• Model NO.：ZYYX
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Machine Color：Customized
• Brand Name：Zhongyuan

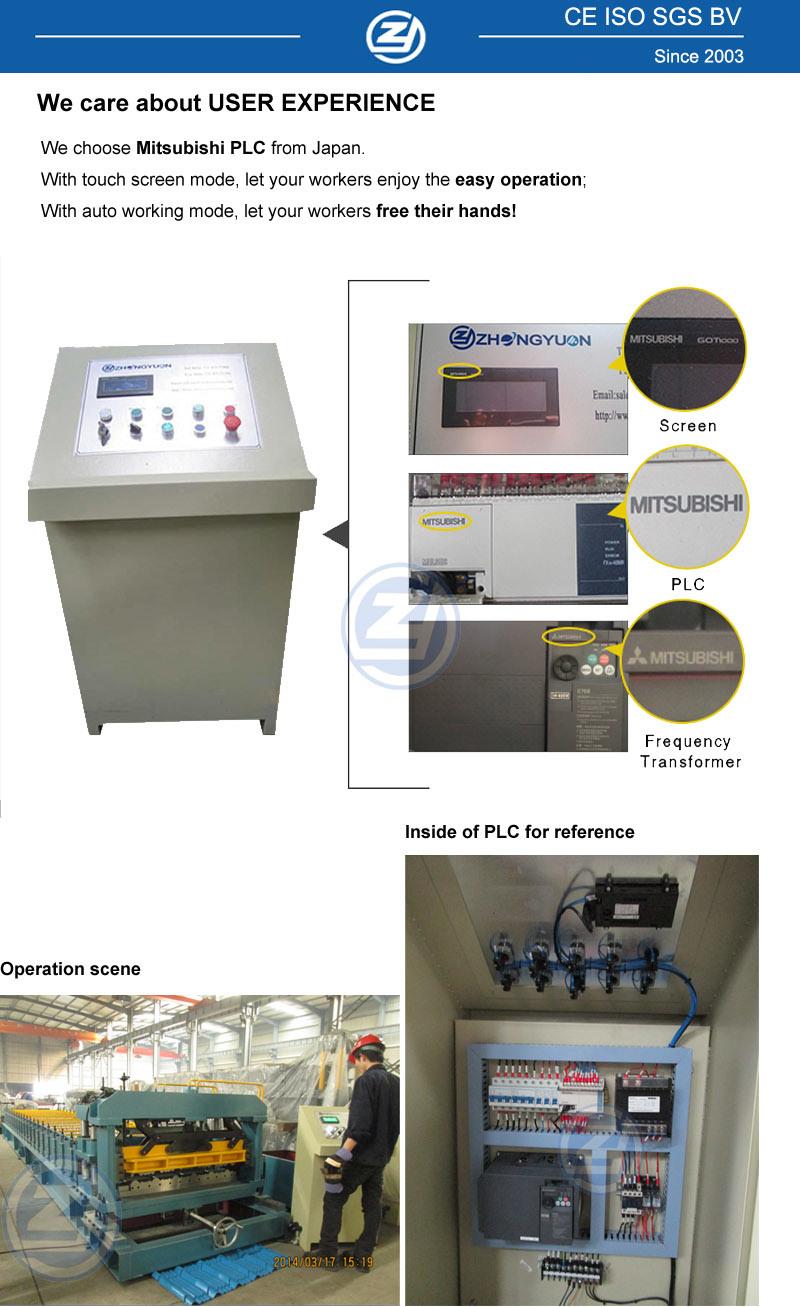

• Control Mode：Mitsubishi PLC & Converter
• Machine Size：8*1*1.4m
• Machine Weight：7tons
• Decoiler Capacity：5tons
• Forming Speed：10m,Min
• Hydraulic Power：2.2kw
• Transport Package：1*20gp
• Specification：ISO; CE
• Trademark：zhongyuan
• Origin：China
• HS Code：84552210
• Production Capacity：10sets,Month


                                                    Shutter Door Roll Forming MachineItemSpecification
Raw MaterialTypePre-painted steel coil & galvanized coilsThickness(mm)05-0.7Yield strength(mpa)235Roller material45# steel , coated with ChromeShaft for rollers Solid shaft with 55 mm,processed with cylindrical grinderForming speed(m/min)About 20Output speed(m/min)About 12 for 6m length sheetSpeed adjusting modeMitsubishi frequency transformerRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mould steelLength measurementNemicon EncoderControl modeMitsubishi PLCOperating modeButton + Mitsubishi Touch screenMain motor power(kw)4KWTotal power(kw)6.2KW

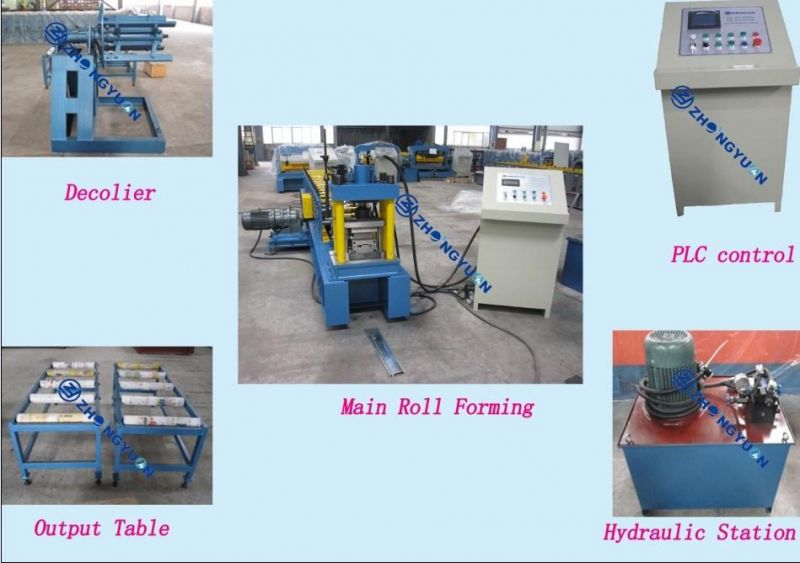

Feeding & guiding device1setMain roll forming machine1setHydraulic cutting system1setControlling system1setRun out table (auto. Stacker for option)


Process flow
Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting - product to run out table



Machine overview




 We care about your concern Delivery: in only 5-8 weeks Container was sealed Machine installing and training: engineer overseas sevices Inspecting and testing machine: before shiping We care about the "special"Can not find the machine you need? Why not customize it!We have: 12 years experience in making roll forming machine                    15 years experience engineers  About usWe are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops.1.  Capacity: 12-15 sets/month 2.  Delivery: in only 5-8 weeks for urgent order 3.  Have our own tool center. 12 sets CNC machines.4. Zhongyuan is a "All-in-house source"     --from raw material to the final high-precision forming machine. We have our precise tooling center.5.  You can rely on our team!       We have engineers with experience more than 15 years in metal forming industry.
  Get Free:"Send" below get profile drawing & design technical support by our 15 year experience technicians FOR FREE!

 FAQ:1) Q: Are you manufacturer or trading company?A: We are manufacturer and trading company . 2) Q: Do you provide installing and training overseas?A: Overseas machine install and worker training services are optional. 3) Q: How is your after sales support? A: We provide technical support on line as well as overseas services by skillful technicians.  4) Q: How does your factory do regarding quality control? A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment. 5) How can I trust you that machines pasted testing running before shipping?A:  1) We record the testing video for your reference. Or,    2) We welcome your visit us and test machine by yourself in our factory. 6) Q: Do you sell only standard machines?A: No. Most machines are made to order. 7) Q: Will you deliver the right goods as ordered? How can I trust you?A: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).
