• Model NO.：WSDZ
• Max. Number of Block：10
• Certification：ISO
• Condition：New
• Capacity：50 Sets Per Month
• Key Word 1：Drawing Machine
• Key Word 2：Wire Drawing Machine
• Key Word 3：Nail Making Machine
• Transport Package：Export Wooden Cases
• Specification：ce co ccc
• Trademark：GMEC
• Origin：Zhengzhou
• HS Code：84552290
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. WSDZ Max. Number of Block 10 Certification ISO Condition New Capacity 50 Sets Per Month Key Word 1 Drawing Machine Key Word 2 Wire Drawing Machine Key Word 3 Nail Making Machine Transport Package Export Wooden Cases Specification ce co ccc Trademark GMEC Origin Zhengzhou HS Code 84552290 Production Capacity 50 Sets Per Month

Product Description

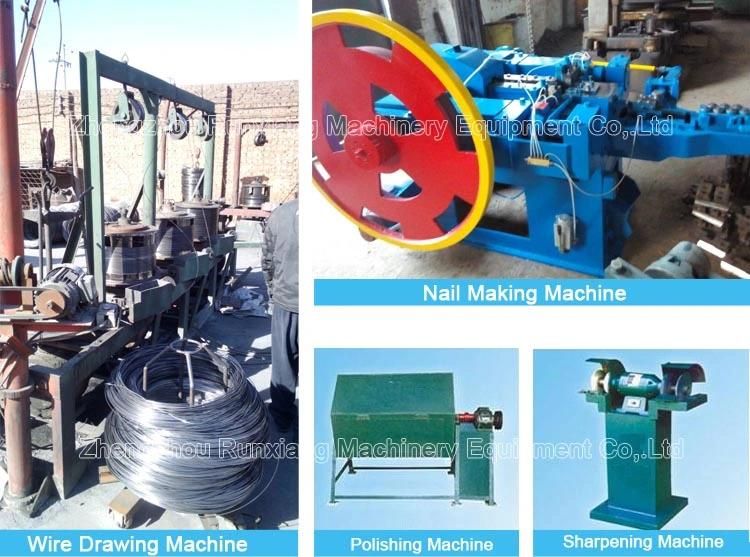

Wire drawing machine for nail production machine line (WSDZ)

Application:
Wire drawing machine is used to draw different size of wires into smaller size, for example, when you want to use 4.2mm wire, but your wire is 5mm, you can use our machine to draw 5mm wires into 4.2mm.
We also have the full line of nail making machine.

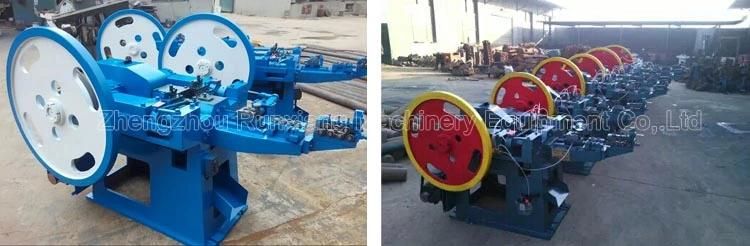

Product features of our nail making machine:
1. Both of the scrap iron wire and the new steel rod can be used to make nails.
2. This nails machine can feed the materials automatically.
3. This nails machine has the features of high speed, low noise, less impact and good continuity.
4. All the main components are made of quality steel, such as shaft, cams and gear.
5. The profit using wasts steel is 5 times of that using finished steel.




Specification

Data/ model	WSDZ-4C	WSDZ-3C	WSDZ-2.8 C	WSDZ-1.6C
Max dia of nail	4.5 mm	3.1 mm	2.8 mm	1.6 mm
Min dia of nail	2.8 mm	1.8 mm	1.2 mm	0.9 mm
Max length of nail	150 mm	75 mm	50 mm	25 mm
Capacity	280 pcs/mm	300 pcs/mm	320 pcs/mm	460 pcs/mm
Motor	4 kw	3kw	2.2 kw	1.5 kw
Weight	2000 kg	1800 kg	1450 kg	1200 kg
Size mm	2200*1600*1650	2000*1400*1400	1700*1300*1400	1500*1300*1200

Remarks:
I.Delivery time: 15 days after receiving clients' prepayment.
II.Payment term: 50% as prepayment by T/T, the balance of 50% should be paid after teh scan document of BL.
III. Valid time: This quotation is valid for one month.
IV .Quality Guarantee Terms:
Quality guarantee term is for one year. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self.
