• Model NO.：ZYYX
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Machine Size：About 10*1.65*1.5m
• Machine Weight：About 9 Ton
• Controlling System：Mitsubishi PLC & Converter
• Certificate：CE,SGS, BV , ISO
• Operation Language：English or as Per Client`S Required
• Rollers Material：No.45 Forged Steel with Hard Chrome
• Main Power：7.5kw
• Cutter Material：Cr12 Mould Steel with Quench Treatment
• Cutting Style：Automatic Cut to Length
• Shafts for Rollers：Grand Twice, 72mm Diameter Solid Steel
• Transport Package：1X40gp Container for One Machine
• Specification：CE SGS BV
• Trademark：zhongyuan
• Origin：China
• HS Code：84552210
• Production Capacity：10sets,Month

ItemSpecificationMaterialTypePre-painted steel coil & galvanized coilsThickness (mm)0.4-0.7Yield strength (mpa)235-345Roller material45#Chrome steelForming speed(m/min)About 15Speed adjusting modeAC FrequencyCutting modeHydraulic cuttingCutter material Cr12 mold steel Operating modeButton + Mitsubishi Touch screenMain motor power (kw)5.5 kw (Depend on final design)Hydraulic station power 2.2 kw (Depend on final design)Total power (kw)7.7 kwMachine`s sizeAbout 10*1.65*1.5m (Depend on final design)

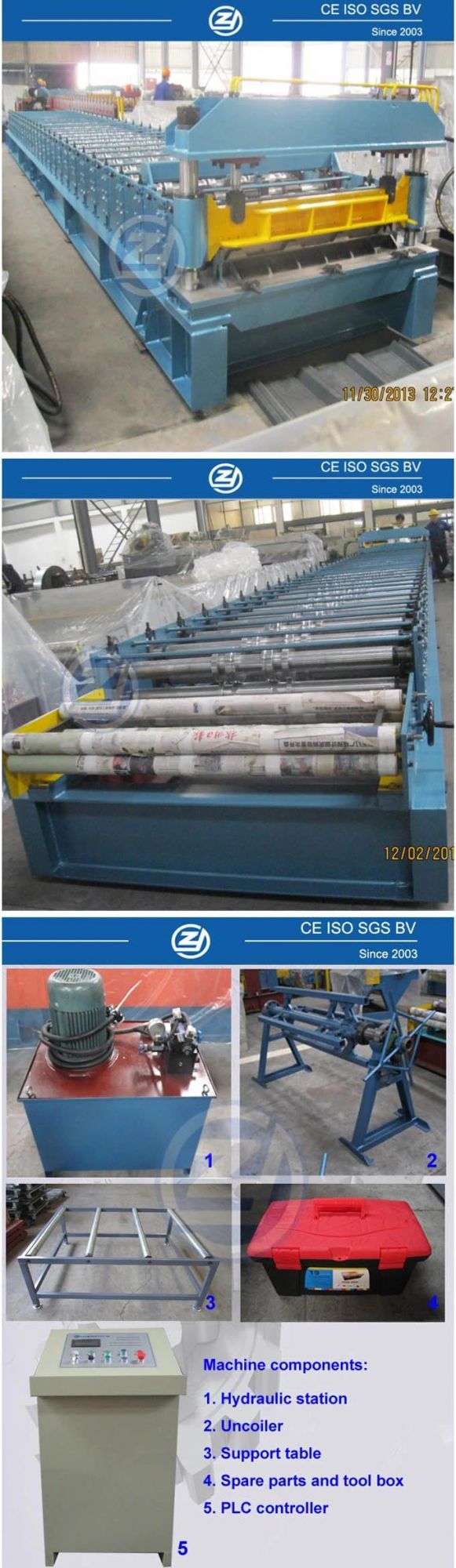

Components
Decoiler
(manual/ hydraulic decoiler for option)1set  Feeding & guiding device1setMain roll forming machine1setHydraulic cutting system1setControlling system1setRun out table (auto. Stacker for option)1.5m/ pc, 2 pcs

Process flow:Decoiler -- Feeding & Guiding -- Roll Forming-- Hydraulic Cutting - Product to Run Out Table

Packing:1. One 40feet container for loading one set machine with mechanical decoiler. 2. Main machine body and decoiler is load naked (tighten to container with steel wire rope). 3. Spare parts and operating tools are loading in tooling box. Delivery: about 50 days after received advaced payment

Product overview



Why us?

We care about the "special"Can not find the machine you need? Why not customize it!We have: 12 years experience in making roll forming machine                    15 years experience engineers


About usWe are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops.1.  Capacity: 12-15 sets/month 2.  Delivery: in only 5-8 weeks for urgent order 3.  Have our own tool center. 12 sets CNC machines.4. Zhongyuan is a "All-in-house source"     --from raw material to the final high-precision forming machine. We have our precise tooling center.5.  You can rely on our team!       We have engineers with experience more than 15 years in metal forming industry.
Get Free:"Send" below get profile drawing & design technical support by our 15 year experience technicians FOR FREE!


FAQ:1) Q: Are you manufacturer or trading company?A: We are manufacturer and trading company . 2) Q: Do you provide installing and training overseas?A: Overseas machine install and worker training services are optional. 3) Q: How is your after sales support? A: We provide technical support on line as well as overseas services by skillful technicians.  4) Q: How does your factory do regarding quality control? A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment. 5) How can I trust you that machines pasted testing running before shipping?A:  1) We record the testing video for your reference. Or,    2) We welcome your visit us and test machine by yourself in our factory. 6) Q: Do you sell only standard machines?A: No. Most machines are made to order. 7) Q: Will you deliver the right goods as ordered? How can I trust you?A: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).
