• Model NO.：CL-800D
• Voltage：110V,220V
• Size：123X80X49cm
• Polarity：Negative (-)
• Frequency：50-60Hz
• Maximum Powder Injection：600g,Min
• Input Voltage：- 200kv
• Gun Weight：500g
• Rated Output Voltage：24VDC
• Maximum Output Current：180ua(Max)
• Transport Package：Cartons
• Specification：CE
• Trademark：HICOLO
• Origin：China
• HS Code：8424899990
• Production Capacity：500sets Per Month

Basic Info.

Model NO. CL-800D Voltage 110V/220V Size 123X80X49cm Polarity Negative (-) Frequency 50-60Hz Maximum Powder Injection 600g/Min Input Voltage - 200kv Gun Weight 500g Rated Output Voltage 24VDC Maximum Output Current 180ua(Max) Transport Package Cartons Specification CE Trademark HICOLO Origin China HS Code 8424899990 Production Capacity 500sets Per Month

Product Description

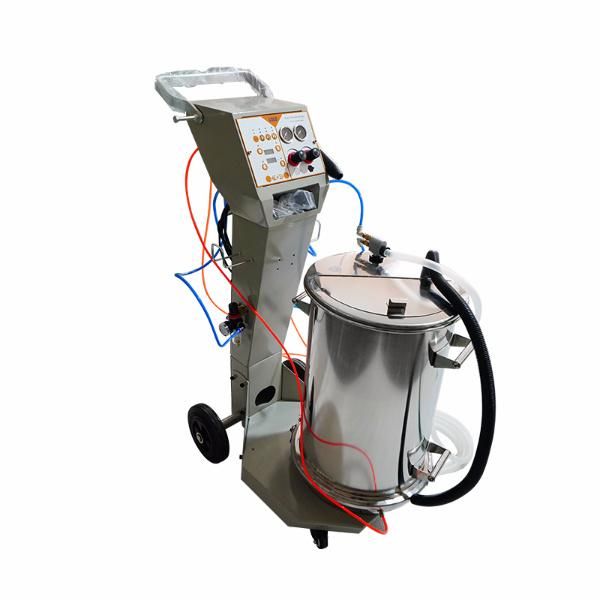

Manual Powder Painting Machine With 55L Fluidizing Hopper

The powder coating spray gun is equipped with the fludizing hopper,as our intellgient powder coating equipment with new trolley,The colo-800D-L2 manual spray gun is lightweight, compact, yet exceptionally rugged and reliable,This spraying equipment provides optimum operator comfort and control, while withstanding tough conditions in a typical powder coating production environment
powder coating production environment

Applications of Product
car wheel rim,bicycle frame,sheef,panel,etc

♦Electrical Household Appliances	♦Aerospace Area
♦Automotive Electronics	♦Fitness Equipment
♦Track Traffic	♦Medical Devices
♦Petroleum Pipes, Valve	♦Tools & Hardware
♦LED Lights, Outdoor Lamps	♦Radiator & Heat Sink
♦Glass Decoration	♦External Facilities

Technical Data


Power range	220v
Frequency	50/60HZ
Temperature range in use	-10   +50
Gun weight:	500g
Rated output voltage	24VDC
Input voltage	- 200kv
Maximum output current	180Ua(max)
Maximum output voltage	0-100KV (  adjustable)
Maximum powder injection	600g/min
Polarity	negative (-)
Maximum input-air pressure	8kg/cm
Optimum input-air pressure	6kg/cm

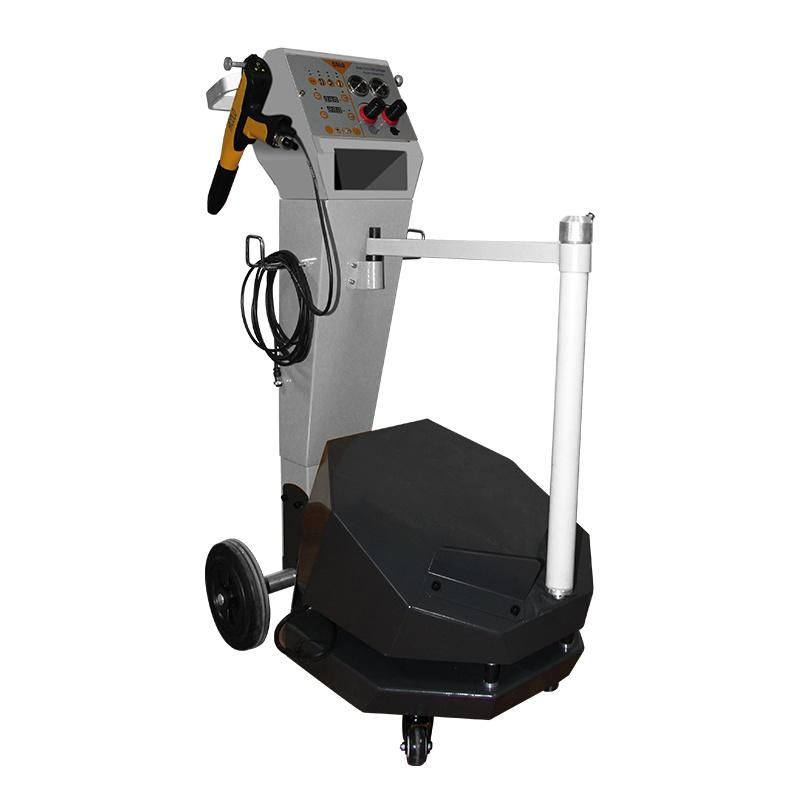

COLO -800D powder coating hopper unit with cart




3 present functions provide excellent powder transfer efficiency.thanks to the superior powder
penetration and the high -class -effect,there is no need to adjust the gun for spraying flat or
complex workpieces,Powder feed system with air purge for faster easier maintenance
Modular hopper can be disassembled without tools.

COLO have been working in the powder coating industry for over 10 years. we manufacture powder
coating machinery products are the culmination of the knowledge and expeience we have gained
over the many years we have been working with our customers in the powder coating industry.

Any question,pls contact sonne
