Portable Flange Facing Machine Cm305 Facing Range 50-355mm
Caminix CNC Machinery (Zhejiang) Co., Ltd.- After-sales Service:24 Hours
- Warranty:1 Year
- Drive:Pneumatic ,Hydraulic, Electric
- Mounting Method:ID Mounted
- Speed:20-43 Rpm
- Clamping Range:2′′-12′′ 50-320mm
Base Info
- Model NO.:CM305
- Processing Range:2′′-14′′ 50-355mm
- Weight:30kg
- Transport Package:Plywood Cases
- Specification:depends on size
- Trademark:CAMINIX
- Origin:China
- HS Code:9031809090
- Production Capacity:5000000PCS a Year
Description
Basic Info.
Model NO. CM305 Processing Range 2′′-14′′ 50-355mm Weight 30kg Transport Package Plywood Cases Specification depends on size Trademark CAMINIX Origin China HS Code 9031809090 Production Capacity 5000000PCS a YearProduct Description

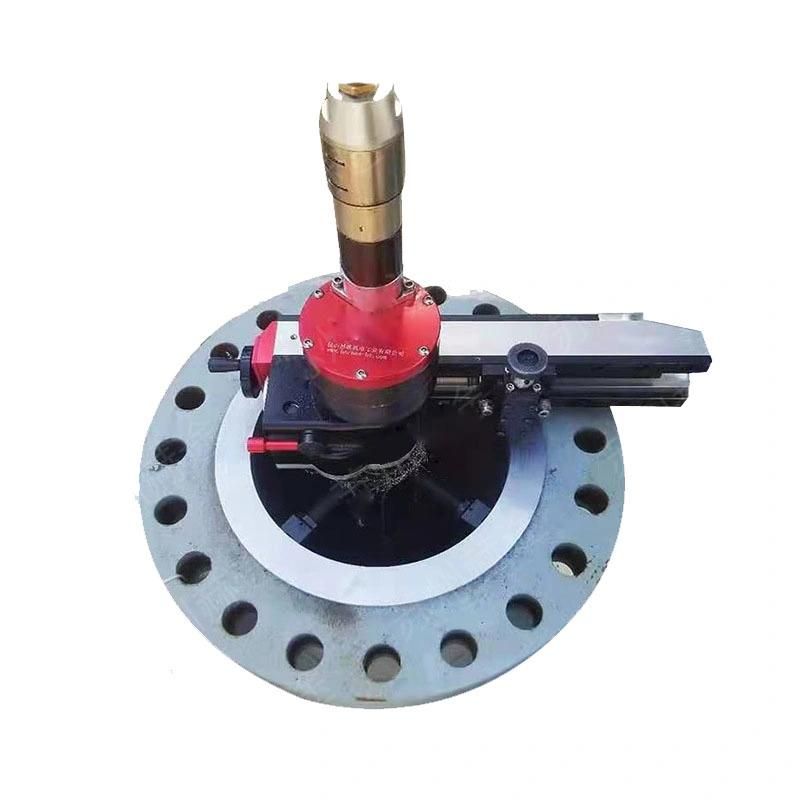

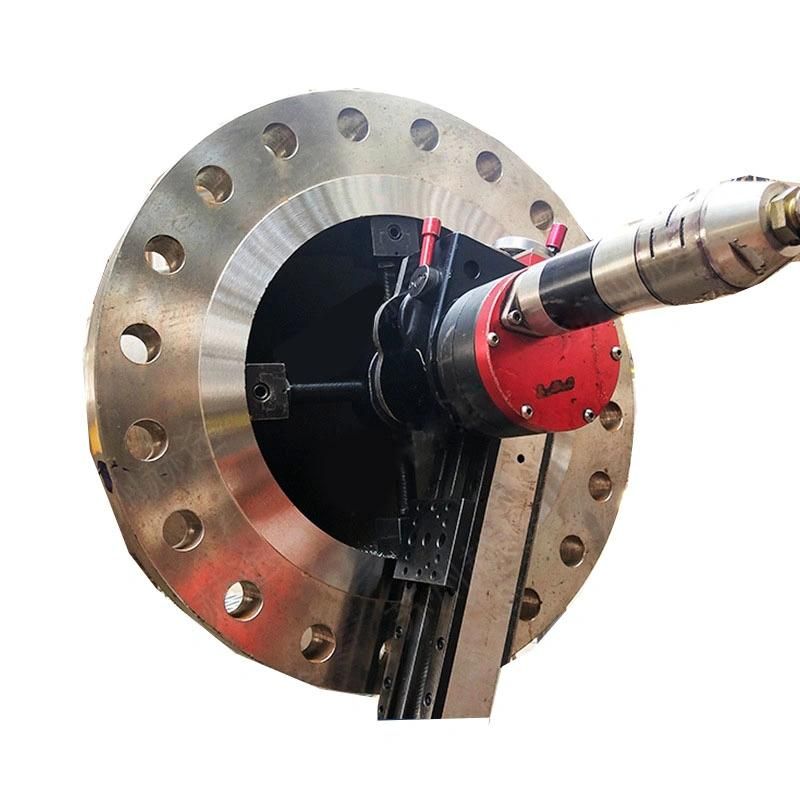

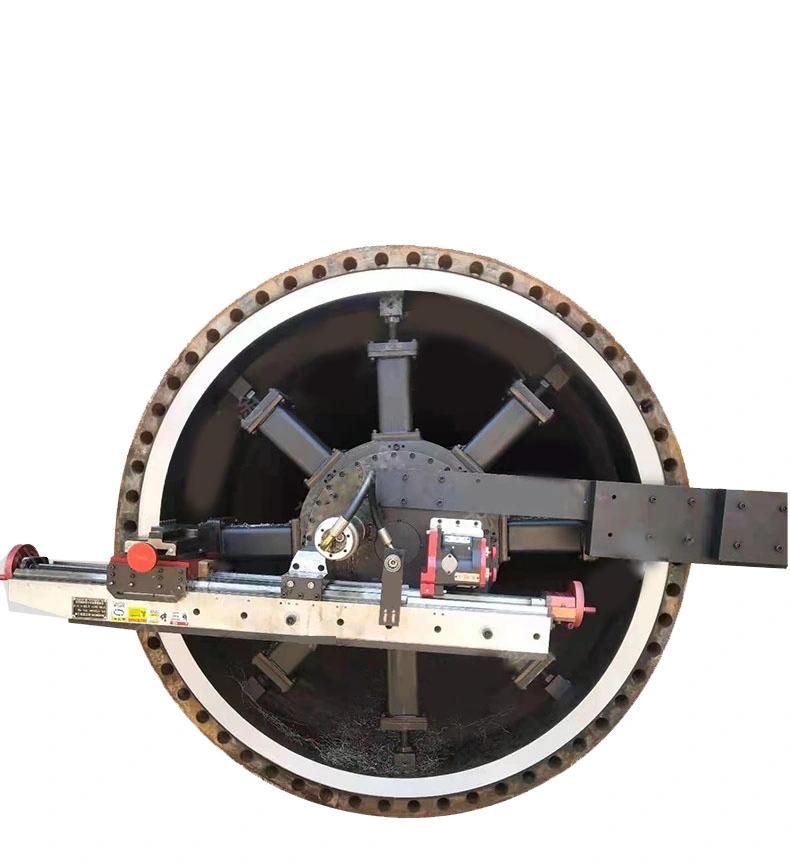

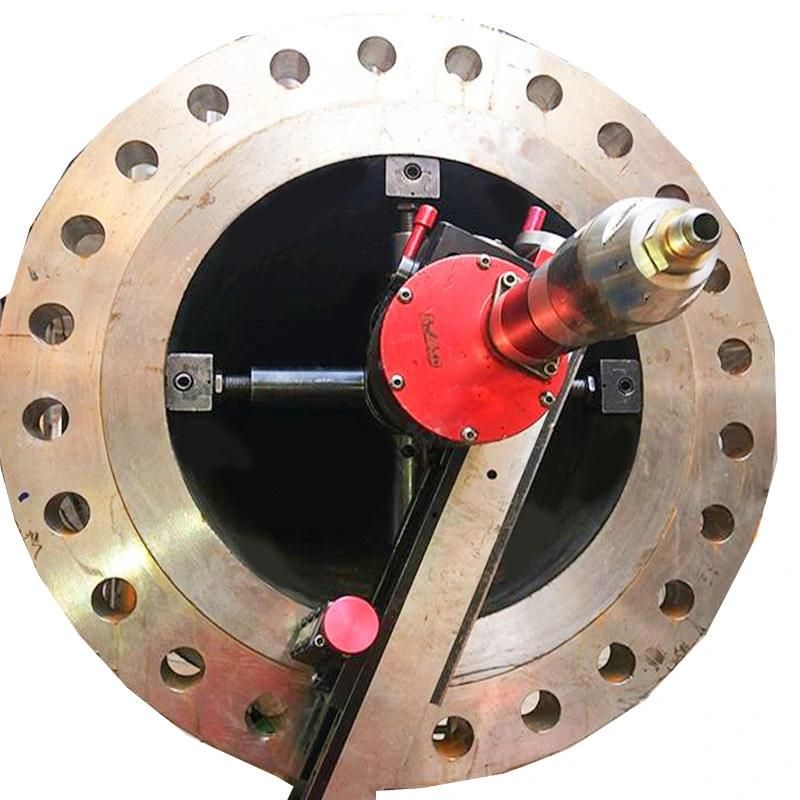

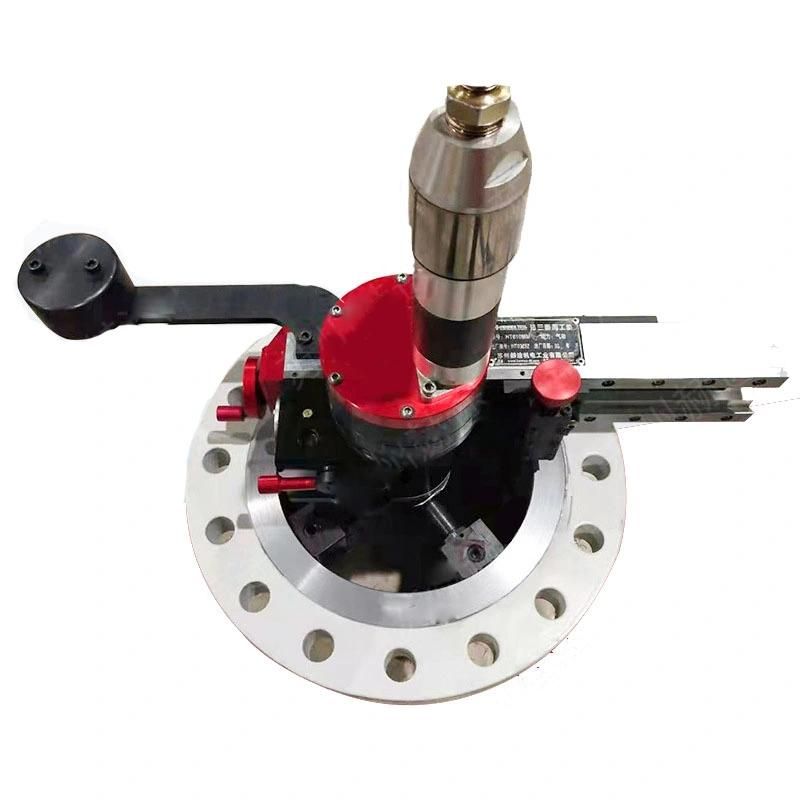

Portable Flange Facing Machine Model CM305Portable flange surface processing machine CM610 is mainly used for on-site processing of flange sealing surfaces such as flange smooth surface, water line, straight groove, RTJ sealing groove, lens sealing surface, heat exchanger sealing surface, etc. It can be located at any angle. processing.
Processing material: cast iron, alloy structural steel, stainless steel, aluminum and other metal materials.
Mounting Method | Inner Diameter Mounted CM305 |
Motor | 1.1 HP |
Rpm | 20-43 Rpm |
Weight | 30KG |
Clamping Range | 2''-12'' 50-320mm |
Processing Range | 2''-14'' 50-355mm |
Tool Travel Range | 50mm 2'' |
Features:
- Inner Clamp Installation, High Rigid Support, Suitable Big Cutting processing requirements , High efficiency
- The tool holder angle can rotate, wide application
- Two mode selection, Pneumatic or Electric mode
- Feed Handwheel with scale , accuracy feeding
- Tool Axial and radial automatic feeding with high precision
- The tool can be adjusted in 50mm.
- Surface roughness below Ra 0.8 um
- Rotating Speed wide adjustable ,meet different processing requirements
- Horizontal, Vertical, Upside, Tilting all can be installed .
- Processing Flat face, water line, Groove etc .
