Stainless Steel Wide-Pitch Corrugated Hose Making Machine
Comflex Industrial Co., Ltd.- Size：Dn50-300mm
- Contorl：PLC Ontrol
- Length：<7500mm
- Control：PLC Control
- Forming Speed：5-10seconds Per Convolution
- No of Layers：Single or Double Layers
Base Info
- Model NO.：Comflex
- Type of The Bellows：Annular Bellows
- Application：for Auto Exhaust Bellows, Flexible Metal Hoses
- Double Layer Wall Thickness：0.5-1.8mm
- Width Strips：158-944mm
- Transport Package：Standard Seaworthy Packing
- Specification：ISO9001
- Trademark：HLT
- Origin：Jiangsu Wuxi
- HS Code：84819010
- Production Capacity：5000PC,Year
Description
Hydraulic Hose Making MachineMachine Type No. HLT-H-100 Technical Data Application of the hose: water, oil, steam
Size range: DN25 up to DN100
Wall thickness: 0.2-0.3mm
Production speed:2.5~3.5m/min
Strip thickness: 0.18-0.3mm
PLC:Siemens
Material: sus304, 321 and 316L
Power:4-7KW
Outer dimensions:15000*1100*1700 Packing details Polywood box and standard pallet MOQ 1 set Warranty 1 year Payment terms T/T, L/C, D/P, Western union Machine Type No. HLT-H-150 Technical Data Application of the hose: water, oil, steam
Size range: DN32 up to DN150
Wall thickness: 0.2-0.3mm
Production speed:2.5~3.5m/min
Strip thickness: 0.18-0.3mm
PLC:Siemens
Material: sus304, 321 and 316L
Power:4-7KW
Outer dimensions:15000*1100*1700 Packing details Polywood box and standard pallet MOQ 1 set Warranty 1 year Payment terms T/T, L/C, D/P, Western union

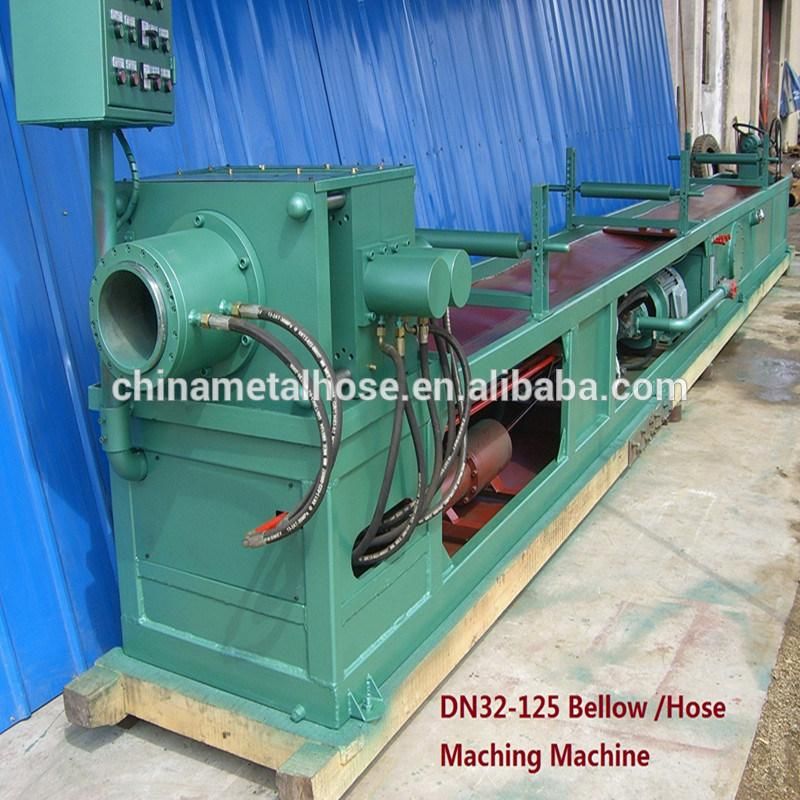

Machine showing

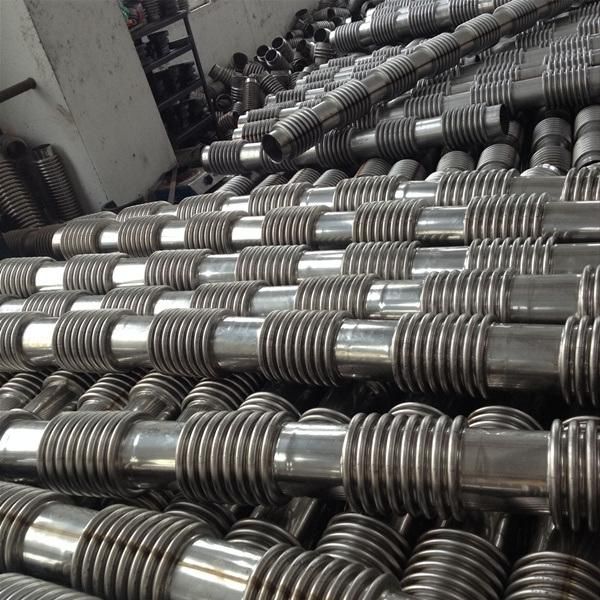

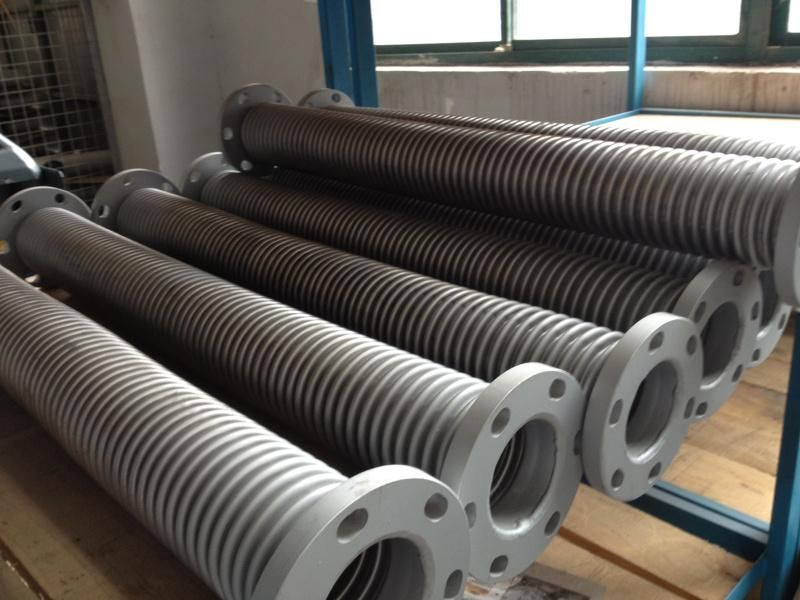

Product showing
Customer Visiting
FAQ
Q: Why choose us for metal hose forming machine?
A: We are most professional manufacturer of hose making machine with more than 25 years of experience
Q: What size can you make?
A: All the sizes from DN8 up to DN400 can be made on different machines
Q: How many different types of machine can you make?
A: Hydraulic metal hose forming machine
a:DN16-65mm b:DN25-DN100mm c:DN32-150mm d:DN50-300mm e:DN80-400mm
B: Mechanical hose making machine
DN8-50mm
C:PU/ Elastomer Metal Hose Making Machine
a:DN12-100 b: DN50-150 c:DN12-65
Q:Can the hose forming machine be used for bellow making?
Yes, all above hose forming machine can be used for bellow making as well
We need to know following information to quote you correct machineries:
1.Size range you want to make
2.The application of the hose you need, for instance, natural gas hose, water hose, air conditional hose, etc..
3.Wall thickness
Size range: DN25 up to DN100
Wall thickness: 0.2-0.3mm
Production speed:2.5~3.5m/min
Strip thickness: 0.18-0.3mm
PLC:Siemens
Material: sus304, 321 and 316L
Power:4-7KW
Outer dimensions:15000*1100*1700
Size range: DN32 up to DN150
Wall thickness: 0.2-0.3mm
Production speed:2.5~3.5m/min
Strip thickness: 0.18-0.3mm
PLC:Siemens
Material: sus304, 321 and 316L
Power:4-7KW
Outer dimensions:15000*1100*1700
| DN | Actual ID | Wall thickness (mm) | Width of s.s. strips(mm) | Height of convolution | Pitch distance (mm) |
| DN32 | 31.5 | 0.3 | 100 | 7 | 5 |
| DN40 | 39.5 | 0.3 | 125 | 8 | 6 |
| DN50 | 49.7 | 0.3 | 157 | 8 | 7 |
| DN65 | 64.7 | 0.3 | 204 | 9 | 8 |
| DN80 | 79.5 | 0.4 | 251 | 10 | 9 |
| DN100 | 99.5 | 0.5 | 314 | 11 | 10 |
| DN125 | 124.6 | 0.5 | 393 | 13 | 12 |
| DN150 | 149.4 | 0.6 | 471 | 15 | 15 |
Machine showing
Product showing
Customer Visiting
FAQ
Q: Why choose us for metal hose forming machine?
A: We are most professional manufacturer of hose making machine with more than 25 years of experience
Q: What size can you make?
A: All the sizes from DN8 up to DN400 can be made on different machines
Q: How many different types of machine can you make?
A: Hydraulic metal hose forming machine
a:DN16-65mm b:DN25-DN100mm c:DN32-150mm d:DN50-300mm e:DN80-400mm
B: Mechanical hose making machine
DN8-50mm
C:PU/ Elastomer Metal Hose Making Machine
a:DN12-100 b: DN50-150 c:DN12-65
Q:Can the hose forming machine be used for bellow making?
Yes, all above hose forming machine can be used for bellow making as well
We need to know following information to quote you correct machineries:
1.Size range you want to make
2.The application of the hose you need, for instance, natural gas hose, water hose, air conditional hose, etc..
3.Wall thickness
