• Model NO.：COMFLEX
• Material：Stainless Steel
• Hose Application：Elastic Element
• Delivery Date：30 Days
• Voltage：380 V,415V
• Power：6-8kw
• Machine Color：Can Be Customized
• Labor Required：1 Person
• Payment Method：30% as Deposit by Tt
• Transport Package：Standard Seaworthy Packing
• Specification：ID6-200
• Trademark：Comflex
• Origin：Wuxi
• HS Code：8462391000
• Production Capacity：300sets,Years

Basic Info.

Model NO. COMFLEX Material Stainless Steel Hose Application Elastic Element Delivery Date 30 Days Voltage 380 V/415V Power 6-8kw Machine Color Can Be Customized Labor Required 1 Person Payment Method 30% as Deposit by Tt Transport Package Standard Seaworthy Packing Specification ID6-200 Trademark Comflex Origin Wuxi HS Code 8462391000 Production Capacity 300sets/Years

Product Description

Automatic Hydroforming Multi ply Bellow Forming Making Machine Equipment^





1. Main Parameter

Inner diameter	6-25mm	25-35mm
Thickness	Max. 0.15mm*2plies Max. 0.25mm*1ply	Max. 0.2mm*2plies            Max. 0.3mm*1ply
Tube length before forming	≤165mm	≤360mm
Forming speed	1800pcs/8h	3000pcs/8h
Power	6-8kw	6-8kw

Youtube link for machine running   https://youtu.be/9tYzajay1q4
                                                            https://youtu.be/A5DMCbiOo7Q

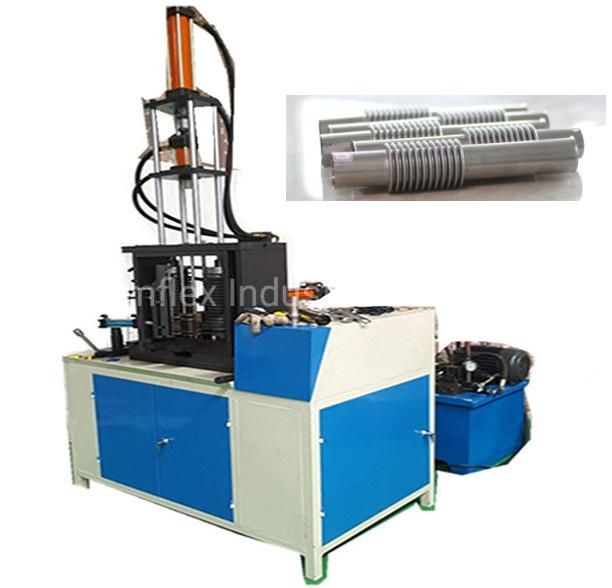

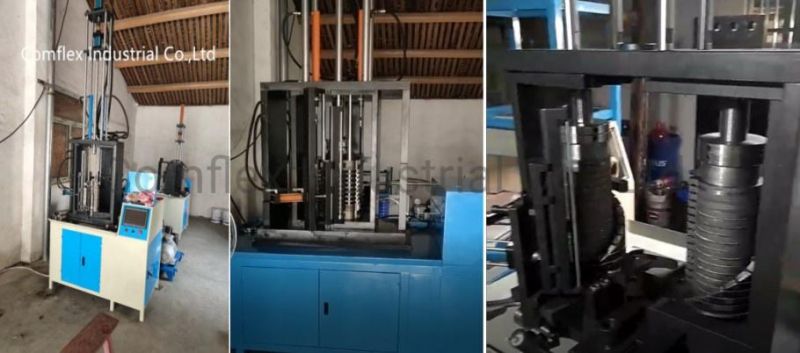

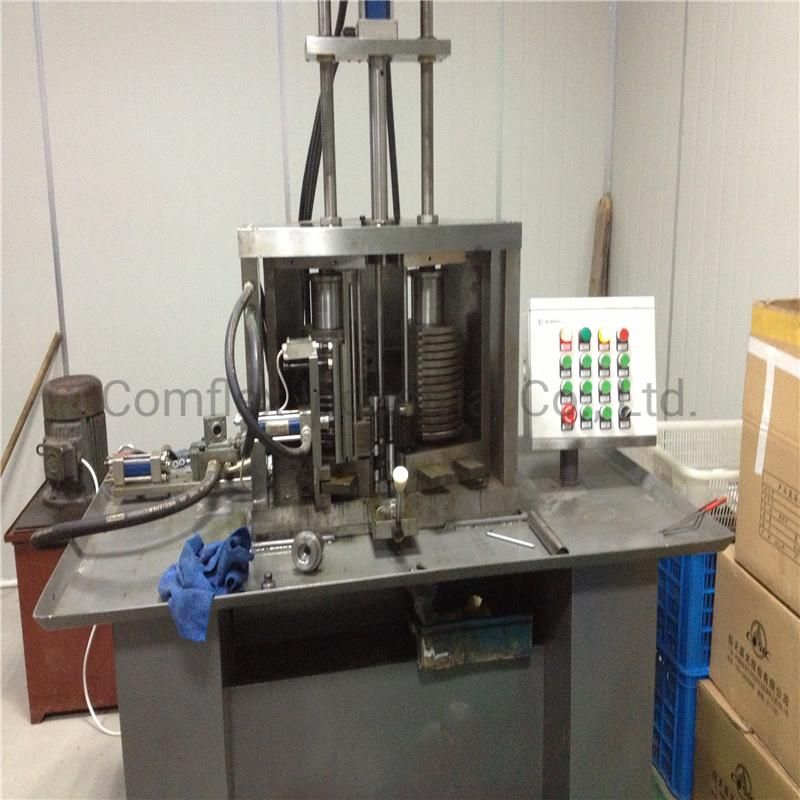

Machine Picture



Bellows produced by our machine








Company Overview

Comflex Industrial Co.,Ltd supply all kinds of machines related to metal hoses, bellows, and fabric expansion joints with more than 30 years. Meanwhile, we can also design and manufacture special equipment according your special requirement. Our machines have been exported to many countries, such as Ukraine,Russia, Viet Nam, India, Canada, Australia, Italy, France, UK, Turkey, etc.. We assure you long-term mutual beneficial cooperation relationship!

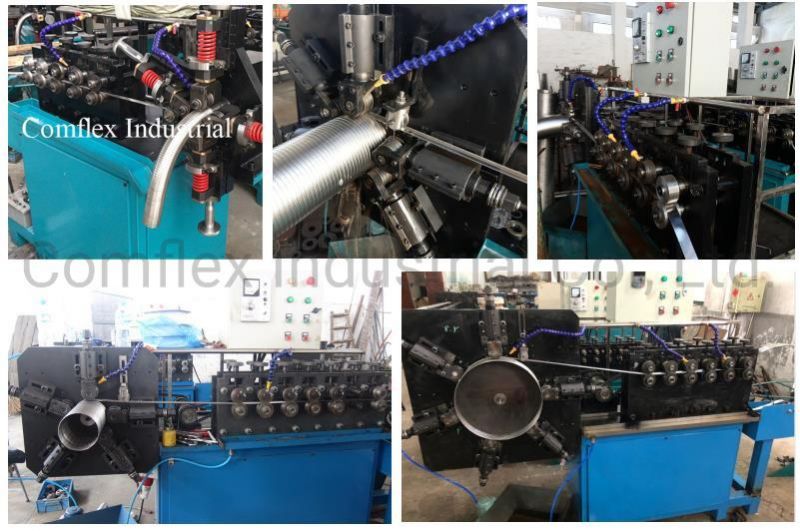

Other Interlocked Metal Hoses Making Machine Introduction


a. Machine No.1:


Machine Type	CF-150
Available Shape	Round or polygonal with different forming dies
Size range	ID38-150
Forming speed	150-350m/8hrs
Strip thickness	0.25-0.5mm
Strip width	16 and 20mm
Power	4KW
Outer dimensions	3500mmX1200X1600mm
Weight	950kgs

Types of interlocked metal hoses


b. Machine No.2:


Machine Type	CF-300
Available Shape	Round or polygonal with different forming dies
Size range	ID150-300
Forming speed	100-200m/8hrs
Strip thickness	0.25-0.8mm
Strip width	16,20, 28, 32mm
Power	11KW
Outer dimensions	3500mmX1200X1600mm
Weight	1200kgs

c. Other Types' Parameter



Making size/mm	ID38-150	ID75-300	ID200-400	ID38-65
Speed M/H	100-120	150-400	100-120	150-400
Strip size /mm	16-20*0.25-0.5	20*0.45m	28*0.5-0.8	15*0.25
Type	Polygonal	Round	round	polygonal

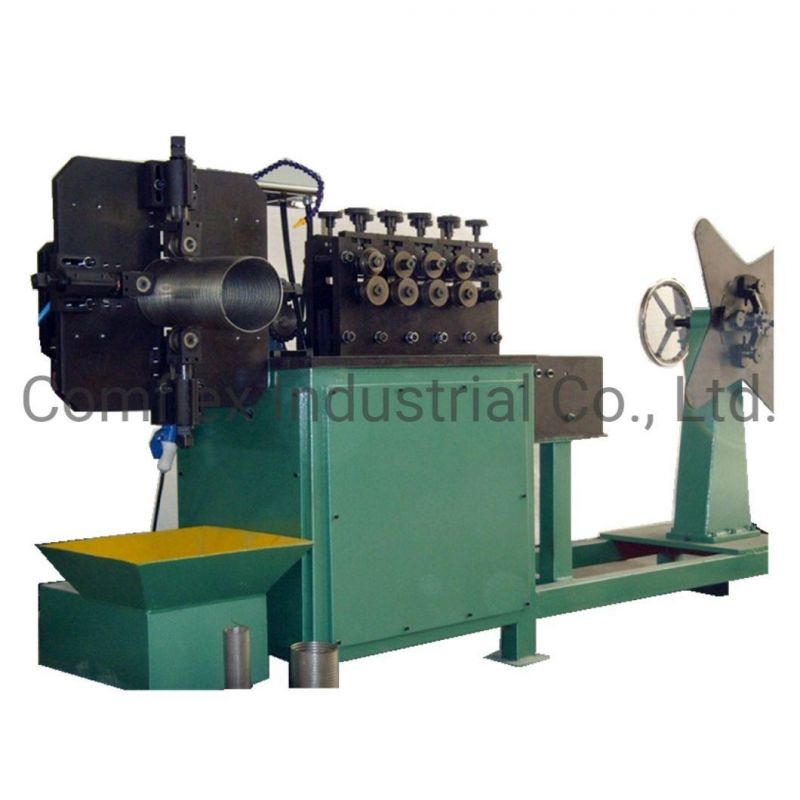

Application for Exhaust hose making machine

Exhaust hose making machine are widely used to manufacturing exhaust pipe or flex connectors for the truck. Compared with interlock ASS hose, the 3-s hose has the following features:

• Low leakage
• Better sealing performance
• Flexible
• Exhaust connector, Exhaust pipe for the truck.
  Industrial flexible metal hose making.
• SS & sss type, round & polygonal type

No	Size	Produce speed/hr	Strip size(width*thickness)
1	7mm	200	4mm*0.22mm
2	9mm	200	6mm*0.2mm
3	11,14mm	200	7.1mm*0.2mm
4	16,18,21mm	115	8.6mm*0.2mm
5	26,29,30mm	100	9.5mm*0.23mm
6	32,35mm	100	12.7mm*0.25mm
7	37,42mm	100	15mm*0.3mm
8	45,51,55mm	100	17mm*0.35mm
9	60,63,70,76,80mm	80	21.2mm*0.45mm
10	89,95,102mm	70	25mm*0.55mm

Machine Packing & Delivery

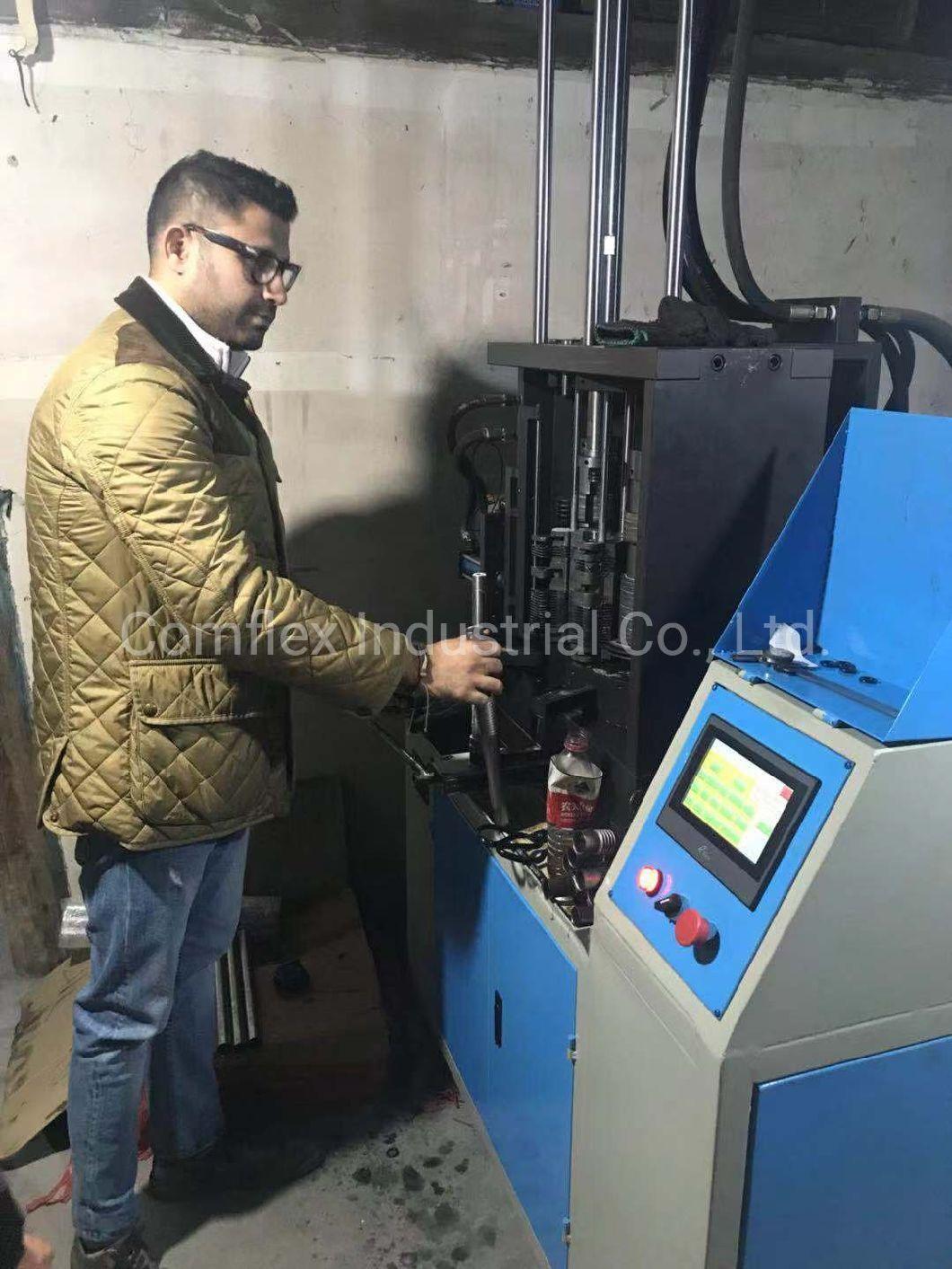

Customer Accept Machine Training

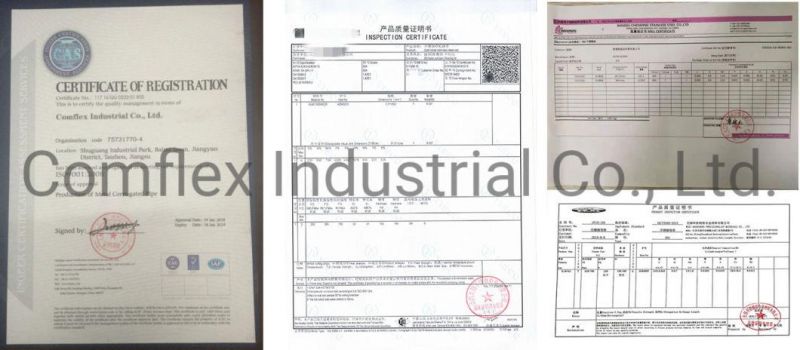

Certification






FAQ
Q:Why choose us as your supplier?

A:We are most professional in metal bellow, flexible conduit making machine,interlocked metal hoses making machine with more than 30 years' experience.


Q:What sizes you machine can make?

A: Hydroforming bellow making machine (DN6-200mm)
B: Interlock Hose:ID3-ID450 on different machines



We need to know the following information to quote you correct machinery:

1:What is size of metal bellow/hose you need to make?
2:Material of bellow/hose
3.Application of bellow/hose
