• Model NO.：1200
• Warranty：12 Months
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• Name：980 EPS Sandwich Panel Roll Forming Machine for SA
• Power Supply：AC380,50-60Hz
• Total Power：32kw
• Line Speed：4-8m,Min
• Overall Dimensions：45000X3000X2800
• Product Width：1000mm 1200mm
• Product Thickness：40-300mm
• Annual Output：600thousand Square Meters

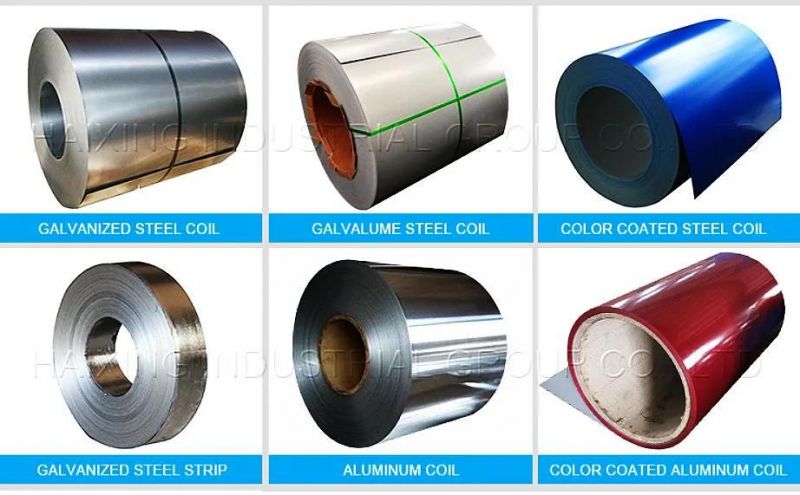

• Suitable Material：Color Steel Sheet
• Thickness of Raw Material：0.3-0.8mm
• Transport Package：Water-Proof Packaging, Covered with Plastic Film
• Specification：EPS sandwich panel
• Trademark：DIXIN
• Origin：Botou Hebei China
• HS Code：845522
• Production Capacity：20 Set Per Year

Basic Info.

Model NO. 1200 Warranty 12 Months Customized Customized Advantage Easy to Maintenance Condition New Name 980 EPS Sandwich Panel Roll Forming Machine for SA Power Supply AC380/50-60Hz Total Power 32kw Line Speed 4-8m/Min Overall Dimensions 45000X3000X2800 Product Width 1000mm 1200mm Product Thickness 40-300mm Annual Output 600thousand Square Meters Suitable Material Color Steel Sheet Thickness of Raw Material 0.3-0.8mm Transport Package Water-Proof Packaging, Covered with Plastic Film Specification EPS sandwich panel Trademark DIXIN Origin Botou Hebei China HS Code 845522 Production Capacity 20 Set Per Year

Product Description

980 eps sandwich panel roll forming machine for sale

pricture

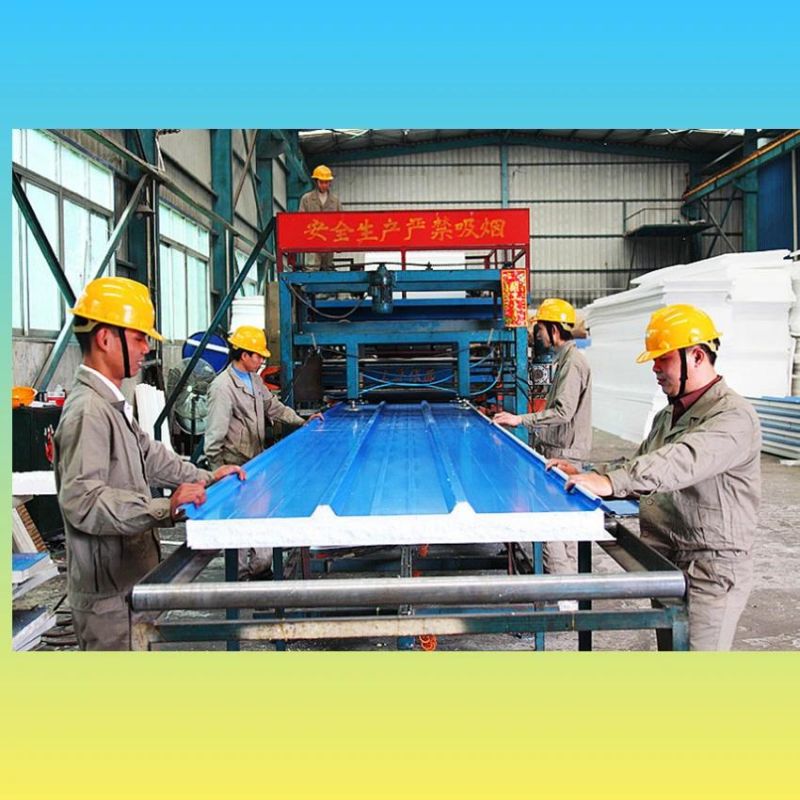

This is designed to produce fabricated panels for factories, warehouses and house. The line applies EPS, Glass & Mineral Wool, Polyurethane and cuts to required length. It is the best material for wall and roof of electronic, medicine, precise machinery and general factories and warehouses.
The is to produce panels for constructing factories, warehouses and houses. After forming 0.4 ~ 0.5 mm pre-painted steel sheets, the line attaches them to EPS (Expanded Polystyrene) and cuts into required size. Roof and wall panels can be produced by the same machine.

Feature of EPS Panel Line:
Thickness of products, 50 mm, 75 mm, 100 mm, etc, can be easily adjusted.
Prompt Post Management with the standardization of all parts
By data input, it is easy to choose the length and quantity of products
Line speed can be regulated at will

Features of EPS Panels
1. Energy saving
You can save air-conditioning and heating expenses remarkably, thanks to its excellent insulation effect as mush as 4.2 times of cement brick.
2. Perfectly insulated and waterproof
Using the high-density EPS, it is moisture and noise free.
3. Semi-permanence and easy installation
Using galvanized steel sheets treated with fluorine and silicone on the surface, it is unchangeable and semi-permanent. Due to the standardized products, you can save the cost for construction by hiring the least number of workers and minimizing the period of construction.
4. Excellent lightness and firmness
It is light but firm, so even a house is simply built, it is strong enough. Coating with different material, you can enjoy various type of panels.

Specifications:
Power supply: AC380/50-60HZ
Total power: 32KW
Production line speed: 4-8m/min
Equipment overall dimensions: 45000x3000x2800
Product width: 1000mm 1200mm
Product thickness: 40-300mm
Annual output: 600thousand square meters

Roof Sandwich Panel Forming Machine Eps Sandwish Panel Forming Machine
Decoiler→ roll forming core→ hydraulic cutting system→ feeding system→sandwich panel shaping
→sandwich panel cutting→ receiving table

Feature

Moisturizing, waterproof once completed
Construction speed is quick, high efficiency
Wear well
Beautiful appearance
Easy operate
Low energy consumption

Main technical parameter ( we can manufacture as your requests)

Roll speed: 0-4m/min
Frame: 300H steel welding
Automatic equipment with PLC control system
Roll plate thickness: 0.3-0.6mm
Thickness of sandwich panel: 50-250mm
Main motor power: 32kw
Machine's voltage: 380V, 50-60HZ
Width of make-up product: 1000mm-1200mm

Service

We provide the technician support for whole life, Meanwhile, if any parts go broken and not artificial damage, we aill send you a new one for free. When need the technician to go to abroad, we will arrange the technician. But the buyer should take all the cost, including Visa, Roundtrip ticket, Suitable Accommodation and pay the service fee to the techinician 50$ per day.

Terms:

Payment type: 30% T/T prepaid and balance should be paid before loading
Delivery time: 30days after receving advance payment.
Guarantee period: 18monthes free service/ pay service all the machine life
Installation and training:
If buyers visit our factory and check the machine, we will teach you how to install and use the machine,
And also train your workers/technician face to face.
Without visiting, we will send you user manual and video to teach you to install and operate.
If buyer needs our technician to go to your local factory, please arrange board and lodging
And other necessary things.

No.	Name	Unit	Qty

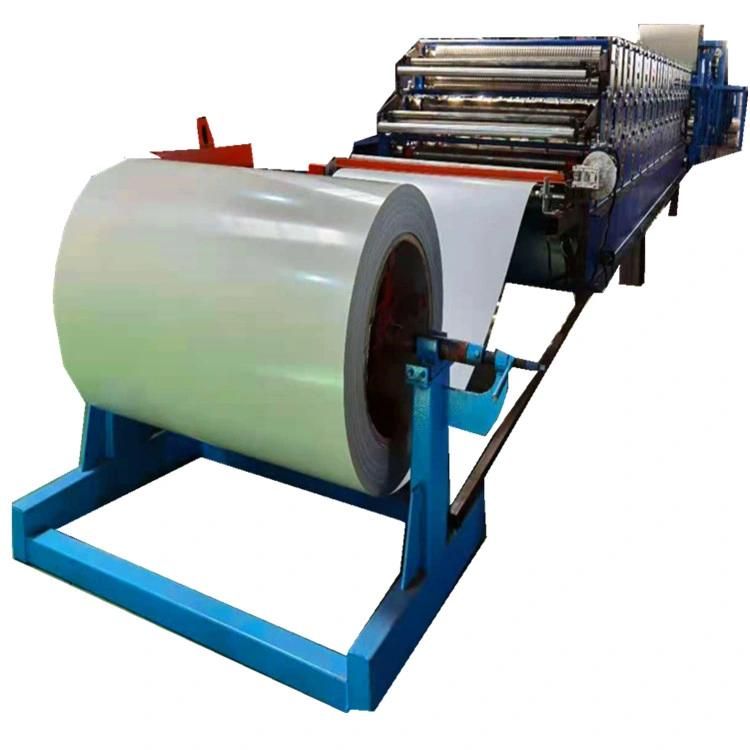

1	Composite Decoiler	set	1

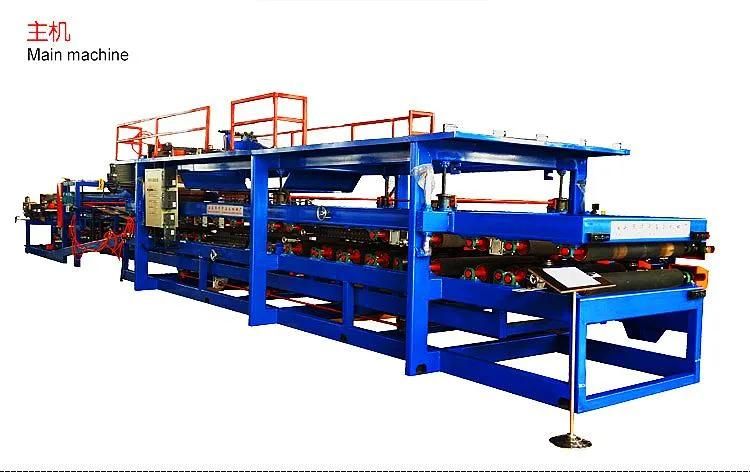

2	Main Machine For Roll Forming	set	1
3	Main Machine For Compositing	set	1
4	Control System(PLC)	set	1
5	Cutting System	set	1
6	Runout Table	set	1

mainly product


If you want to get more information about our equipment ,
Please feel free contact Nancy

Canpany:CANGZHOU DIXIN ROLL FORMING MACHINE CO.,LTD
