• Model NO.：DX-60mm or as your drawing design
• Feature：Automation
• Certification：CCC, ISO9001, CE
• Warranty：12 Months
• Customized：Customized
• Advantage：Simple Structure
• Condition：New
• Mode：60mm Slider Roll Forming Machine
• Feeding Thickness：0.5-1.0mm
• Forming Speed：10-15m,Min
• Control System：Delta PLC Computer Control System
• Main Power：3 Kw
• Electric Cutting System：0.75 Kw
• Cutting Length：Automatic Set and Cut at Certain Length
• Shaft：45mm Diameter
• Forming Steps：17 Rows
• Size：4200mm*80mm*1400mm
• Transport Package：Container Package
• Specification：60mm
• Trademark：DX
• Origin：China, Hebei
• HS Code：84552210
• Production Capacity：10m,Min

1NAMEDX28-207-828circular arc glazed tile roll forming machine made in china2APPLICATIONroll forming machine used for producing metal roof panel3MATERIAL SPECcolored steel sheet,galvanized steel sheet, aluminium sheet4THICKNESS OF COIL0.3-0.8 mm5ROLLER MATERIAL high grade NO.45 forged steel,with hard chrome plating on the surface of roller withthickness 0.05 mm6 SHAFT MATERIAL high grade NO.45 carbon wrought steel7CUTTING BALDE Cr 12 mould steel  with quenched treatment8DIAMETER OF SHAFT 75mm9THICKNESS OF MEDIUM PLATE16mm10MAIN FRAME300 H-steel11NUMBER OF FORMING STEPS 13 rows12PRODUCTIVITY 10-12 m/min13MAIN MOTOR POWER 3000w14HYDRAULIC STATION POWER 3000w15HYDRAULIC PRESSURE10-12 MPa16CONTROLLING SYSTEMPLC computer control17APPEARANCE SIZE6800mm*1400mm*1500mm18TOATL WEIGHT3500 kg19VOLTAGE380V 3 Phase or up to you20COLORblue or green21PACKINGwaterproof package

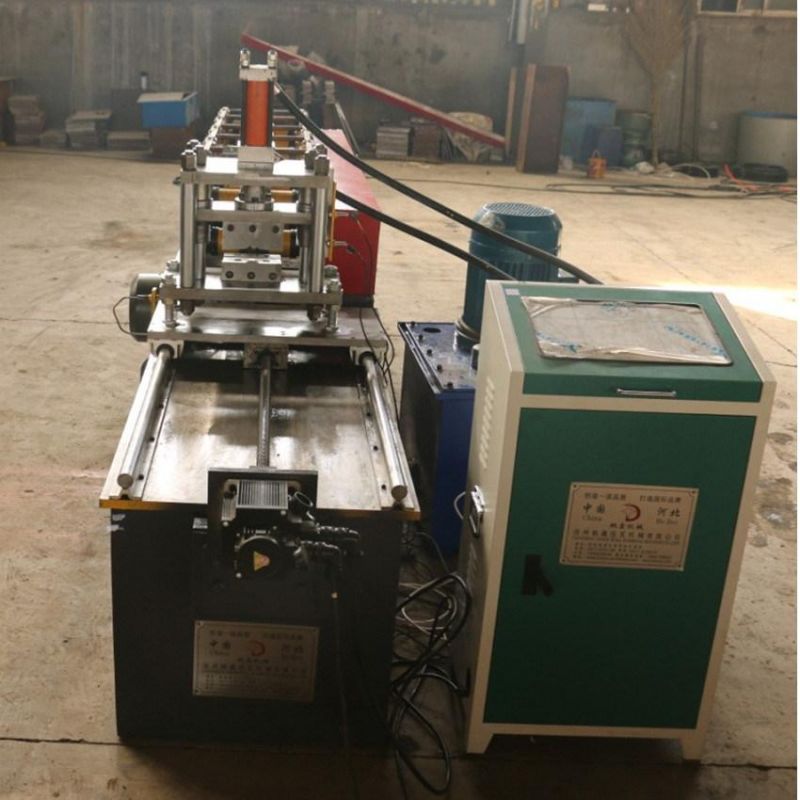

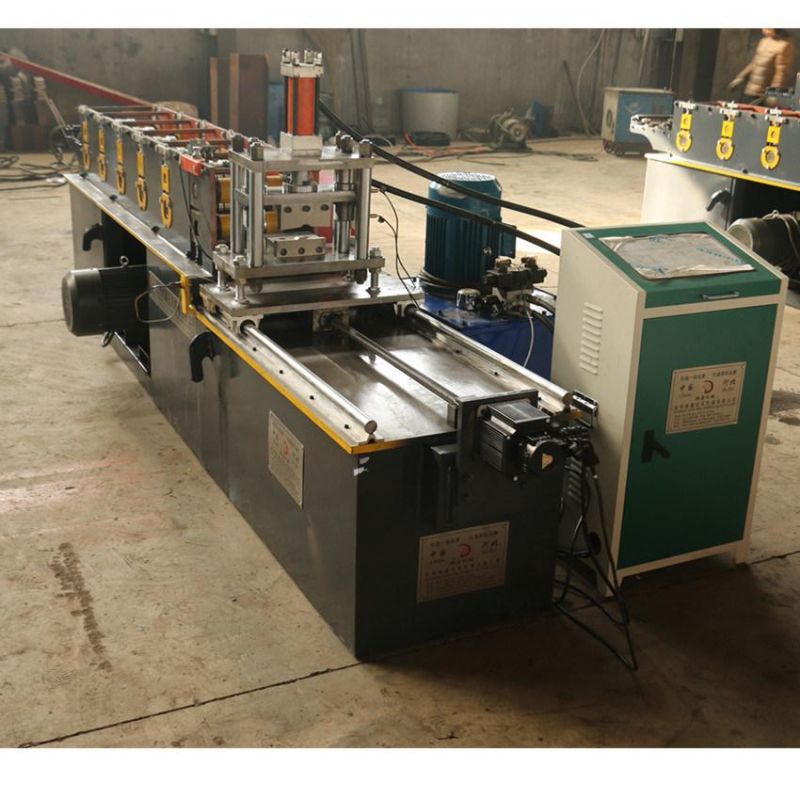

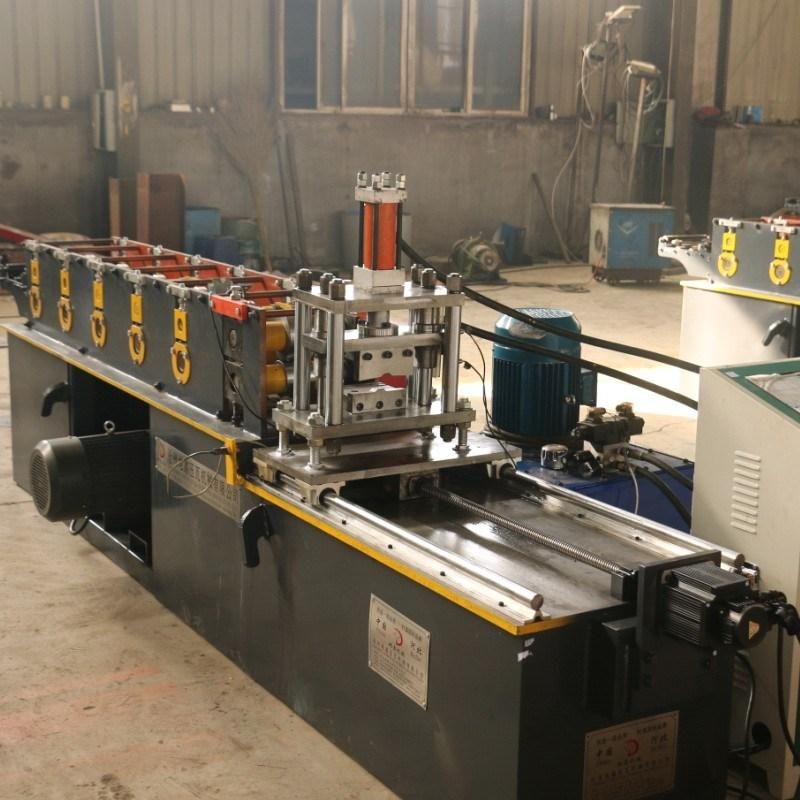

Some machine pictures




if you are interested our machine ,please feel free contact Bella 008618231723279
