Pneumatic Brc Concrete Precast Reinforcement Automatic Welded Wire Mesh Welding Machine
Hebei Jiake Welding Equipment Co., Ltd.- Type：Welded Wire Mesh Machine
- Warranty：1 Year
- Technology：Pneumatic Welding
- Production：80-100times,Min.
- Wire Feeding：Line Wire From Coil Automatically
- After-Sale Service：Engineers Is Available for Installation Overseas
Base Info
- Model NO.：DP-FP-2500AA+
- Roll Length：50-100mm
- Product Name：Galvanized Wire Welded Roll Mesh Welding Machine
- Training Workers：Yes
- Transport Package：Wooden Pallet, Plastic Package in Container
- Specification：CE, ISO9001
- Trademark：JIAKE
- Origin：Anping, Hebei, China
- HS Code：8515809090
- Production Capacity：30 Sets, Month
Description
80-100 times/min
Low carbon wire, black wire, galvanized wire,
Machine features.
8.Pneumatic Mesh Welding System- Latest Technology- Pneumatic Welding, faster, more precise and easy to operate.
1.All the pneumatic components used are with world famous brand, easy to get the parts locally.
2.PLC controlled, Easy to set and control, more intelligent and reasonable.

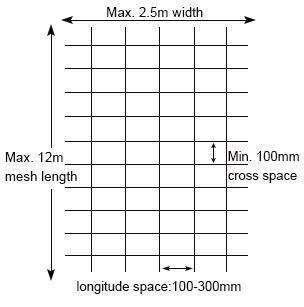

3.The greatest advantage is possible to adjust the distance of line wires as wishes on the same
mesh panel.
4.Welding Wire diameter 5mm to 12mm. Wire Material can be low carbon wire, galvanized wire
plain steel bar, cold rolled rebar, hot rolled rebar.
5.Panasonic servo motor pulling mesh.
6.The longitude wires and the cross wires should be pre-straightened and pre-cut.
7.The longitude wire space and cross wire space can be adjusted.You only need to input thedata in the computer.
Reinforcing mesh welding line, also called BRC mesh welding machine, Construction mesh welding machine.
With more-than-20years experience on design and manufacture, our BRC mesh welding machine is featured by high capacity, easy operation and precise control.
3. Related machinery. - Hebei Jiake Welding Equipment Co., LTD
Mesh welding machine series:
Reinforcing mesh welding machine, fence mesh welding machine, animal cage welding machine, steel grating welding machine, electric welded wire mesh machine, wedged wire screen welding machine, wire straightening and cutting machine, etc.
Mesh weaving machine series:
Chain link fence machine, barbed wire machine, razor barbed wire machine, wire drawing machine, expanded metal mesh machine, grassland wire mesh machine, gabion mesh machine, hexagonal wire mesh machine, steel fiber making machine, etc.

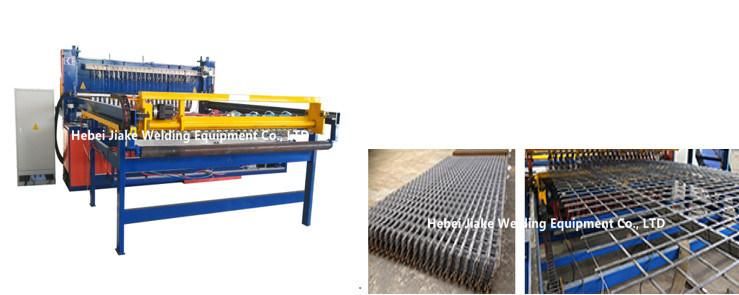

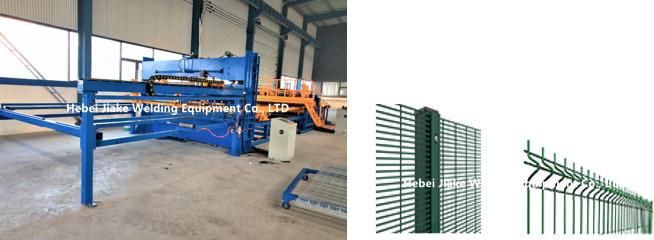

3.1 Fence mesh welding machine
The fence mesh welding machine is also called a fence mesh welding line, security fence machine, anti-climb fence welding machine, and fence panel machine. It is used to make fence mesh, road mesh, reinforcing mesh, shelf, explosion-proof wall, etc.
| Model | DP-FP | Wire diameter | 2.5-6mm |
| Line wire pitch | 50-300mm | Welding torch | 48pcs |
| Cross wire pitch | Min.12.7 | Welding speed | Max.80 times/min |
| Welding width | Max.3m | Welding transformer | 150kva*6/10pcs |
| Mesh length | Max.4m | Mesh type | panel mesh |

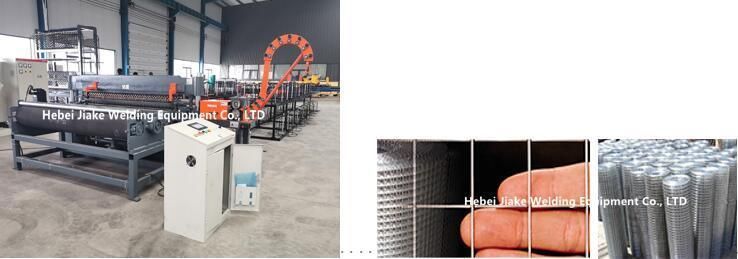

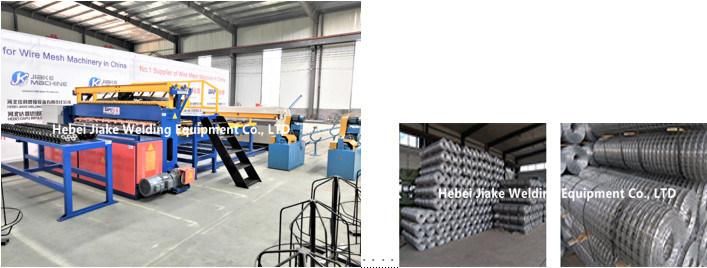

3.2 Welded wire mesh machine in roll
Welded wire mesh machine, also called welded roll mesh machine, electric welded mesh machine, electric mesh welding line.
It's used to make construction mesh, wall mesh, animal cage, mining, etc.
| Model | DP-DNW | Wire diameter | 0.65-2.5mm |
| Line wire pitch | 6.25-150mm | Cross wire pitch | 6.25-150mm |
| Mesh width | 0.9-2.5mm | Main motor | 2.2kw/4kw/5.5kw/7.5kw |
| Welding transformer | 60-80kva*3/4/5/7/8pcs | Welding speed | Max.60-180 times/min |
| Weight | 2T/2.5T/3T/3.5T/4T | Mesh type | roll mesh |
3.3 Roll BRC mesh welding machine
Roll mesh welding line, also called automatic welded mesh machine, welded wire mesh roll machine, used to make road mesh, reinforcing mesh, construction mesh, etc.
| Model | DP-FP-2500BN | Wire diameter | 2.5-6mm |
| Line wire pitch | 50-300mm | Cross wire pitch | Min.50mm |
| Welding width | Max.2500mm | Roll length | Max.100mm |
| Welding speed | Max.75 times/min | Welding torch | 48pcs |
| Welding transformer | 150kva*6pcs | Mesh type | roll mesh |

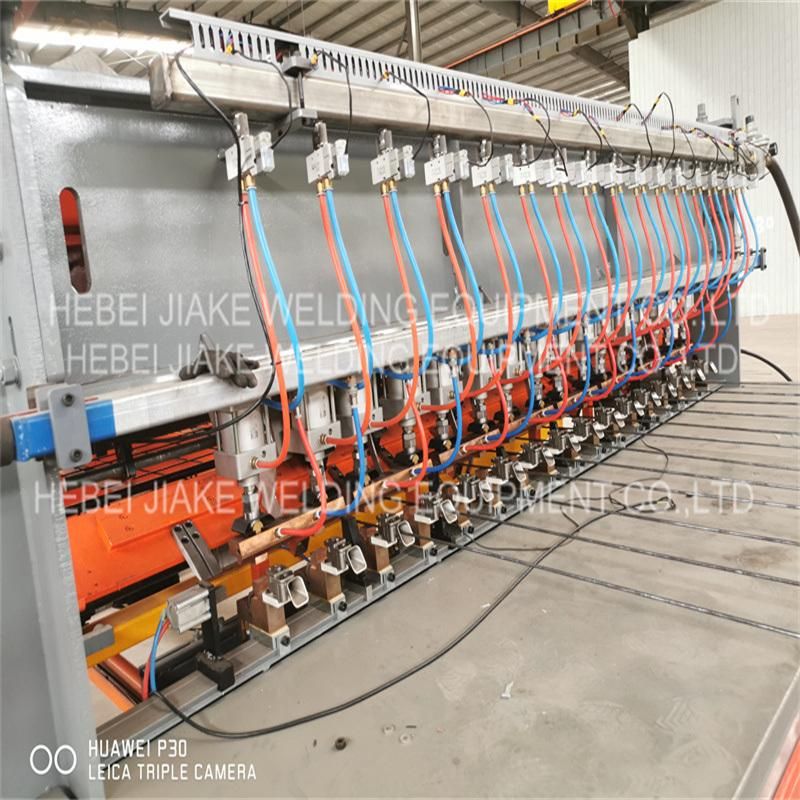

3.4 Pneumatic reinforcing mesh welding machine
Reinforcing mesh welding line, also called BRC mesh welding machine, construction mesh welding machine. with more than 20 years of experience in design and manufacture, our BRC mesh welding machine is featured by high capacity, easy operation, and precise control.
| Model | DP-GW-2500 | Wire diameter | 3-12mm |
| Line wire pitch | 50-300mm | Cross wire pitch | Min.12.7/25mm |
| Mesh length | Max.12m | Mesh width | Max.3000mm |
| Welding torch | Max.24/30/48/61pcs | Welding transformer | 150kva*6/8/12/15pcs |
| Welding speed | Max.80 times/min | Mesh type | panel mesh |

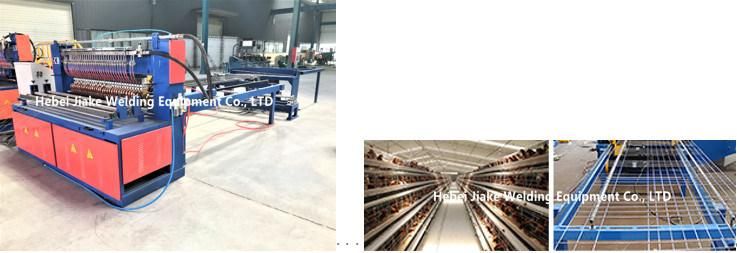

3.5 Chicken cage mesh welding machine
Chicken cage mesh welding machine, also called a poultry cage mesh welding machine, breed aquatics welding machine.
It's used to make breed aquatic mesh, poultry mesh, coop, pigeon mesh, rabbit mesh, etc.
| Model | DP-AW-1600E | Wire diameter | 2.2-3.5mm |
| Mesh width | Max.1600mm | Line wire pitch | Mostly 50-300mm |
| Welding speed | Max.1200 times/min | Cross wire pitch | Min.20mm or custom |
| Welding torch | 25/30/32pcs | Welding transformer | 125kva*3/4pcs |
| Weight | 2.5T/3T/3.2T | Mesh panel | panel mesh and roll mesh |

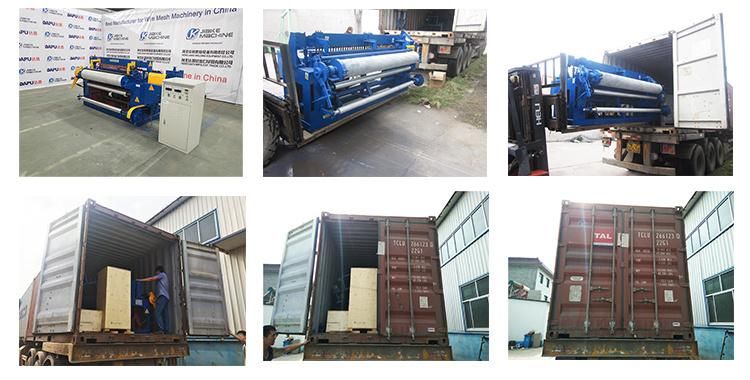

4. Loading photos.- Hebei Jiake Welding Equipment Co., LTD
Jiake machine has been managed by the standard of ISO9001 International Quality Management System. We have built a good reputation among our customers with excellent quality products, reliable services, and credit. We have been supplying the domestic market and also have exported to more than 100 countries and regions including Middle East, Kazakhstan, Vietnam, Philippines, India, Thailand, South Africa, Sudan, Polynesia, Russia, and other countries and regions.
5. FAQ to Hebei Jiake Welding Equipment Co., LTD
Q1: Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q2: How many years are your company engaged in the wire mesh machines?
A: More than 25 years. We have our own technology develop department and testing deparment.
Q3: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They are very experienced.
Q4: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q5: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, passport, SGS report etc, your customs clearance will be no problem.

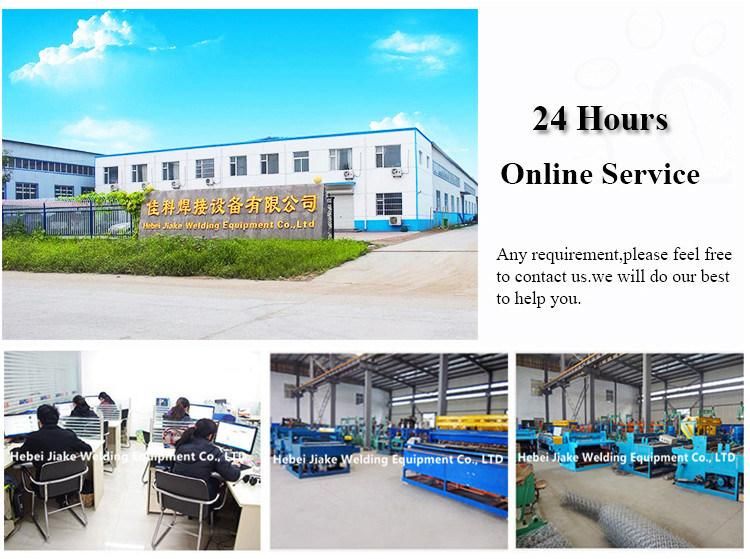

7. Our factory - Hebei Jiake Welding Equipment Co., LTD
Hebei Jiake Welding Equipment Co., Ltd., founded in 2000, is located at the junction of Bejing, Tianjin, and Shijiazhuang - Anping county, which is famous as "Hometown of wire mesh" in China. We are a professional manufacturer of wire mesh machinery. Our company has been developing smoothly and quickly and now we have more than 100 employees. We have our own wire mesh machinery and several pilot plants with strong technical force and advanced production and checkout equipment.
Our main products: 3D panel production line, steel bar mesh welding machine, CNC fence mesh welding equipment, EPS panel production line, 3D panel wire mesh machine (bevel inserting combination joint machine), reinforcing construction mesh (heat separate mesh) welding machine, welding equipment of mine sieve mesh, breed aquatics mesh welding machine, floor warming mesh welding machine, steel grating welding equipment, hexagonal mesh weaving machine, expanded metal machine, razor wire machine, Diamond mesh machine, pneumatic spot welding machine, and straightening & cutting machine.
8.Our customers - Hebei Jiake Welding Equipment Co., LTD
We stick to the business principle of "Favorable comments from high-quality product and service", and thus we supply a whole-process service from product designing, developing, producing, installing, and after-sales service for the clients with first-class techniques top-grade products. Our company has been awarded the title of "Credible and Reliable Product & Service Supplier" by numerous users. We also keep developing on the basis of superexcellent management level and advanced development consciousness so as to bring our machinery to both domestic and overseas markets. We sincerely look forward to your cooperation in the future and warmly welcome your arrival to build our common beautiful future.
