Full Automatic 9-200mm Nails Equipment Line Nail Making Machine
Hebei Tianrunxuan Rubber Products Co., Ltd.- Warranty:1 Year
- Name:Nail Making Machine
Base Info
- Model NO.:nail making machine
- Transport Package:Standard Export Packing
- Specification:International Standard
- Trademark:Yongkun
- Origin:China
- HS Code:8463300000
- Production Capacity:55sets,Months
- Package size per unit product:2200.00cm * 1550.00cm * 1400.00cm
- Gross weight per unit product:1900.000kg
Description
Basic Info.
Model NO. nail making machine Transport Package Standard Export Packing Specification International Standard Trademark Yongkun Origin China HS Code 8463300000 Production Capacity 55sets/MonthsPackaging & Delivery
Package size per unit product 2200.00cm * 1550.00cm * 1400.00cm Gross weight per unit product 1900.000kgProduct Description

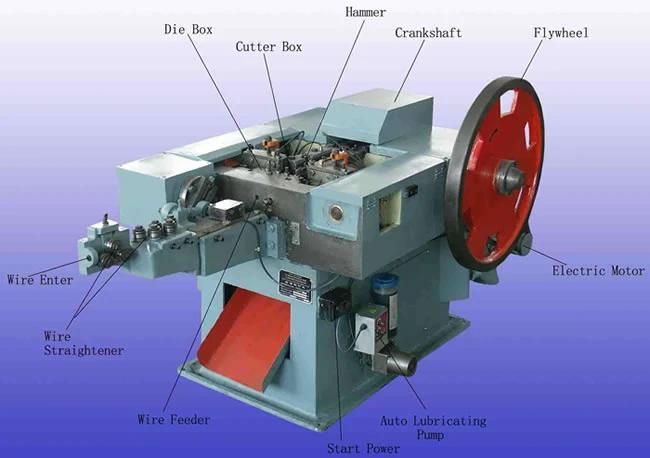

Automatic Steel Wire Nail Making MachineIn woodworking and construction, a nail is a small object made of metal (or wood, called a tree nail or "trunnel") which is used as a fastener, as a peg to hang something, or sometimes as a decoration.[1] Generally, nails have a sharp point on one end and a flattened head on the other, but headless nails are available. Nails are made in a great variety of forms for specialized purposes. The most common is a wire nail. Other types of nails include pins, tacks, brads, spikes, and cleats.
Automatic Steel Wire Nail Making Machine Specifications
Type | 711 | 712 | 713 | 714 | 715 | 716 |
Nail Length | 9-25mm | 16-50mm | 25-70mm | 40-110mm | 60-150mm | 70-200mm |
Max Nail Diameter | 0.9-1.6mm | 1.2-2.5mm | 1.8-3.5mm | 2.8-4.5mm | 3.1-5.5mm | 3.1-6.5mm |
Speed(pcs/min) | 450 | 320 | 280 | 200 | 200 | 150 |
Weight(kg) | 700 | 800 | 1100 | 1900 | 2200 | 3000 |
Motor | 1.5KW | 2.2KW | 3.0KW | 4.0KW | 5.5KW | 5.5KW |
Overall Size(m) | 1.5x1.3x1.2 | 1.65x1.15x1.1 | 1.9x1.2x1.2 | 2.3x1.4x1.4 | 2.4x1.4x1.35 | 3.2x1.8x1.7 |
Spare Parts for the Nail Making Machine
There is one set of the nail cutter, nail mold and punch pin in the machine.
And if you need additional more, then the cost as the following:
Part picture | Part name | Part effect |
Nail Cutter | Cutting the nails. | |

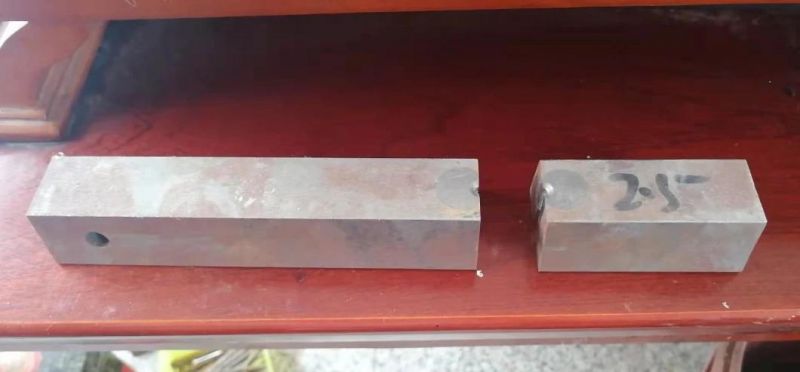

Nail Mold | Decide the nail diameter. | |

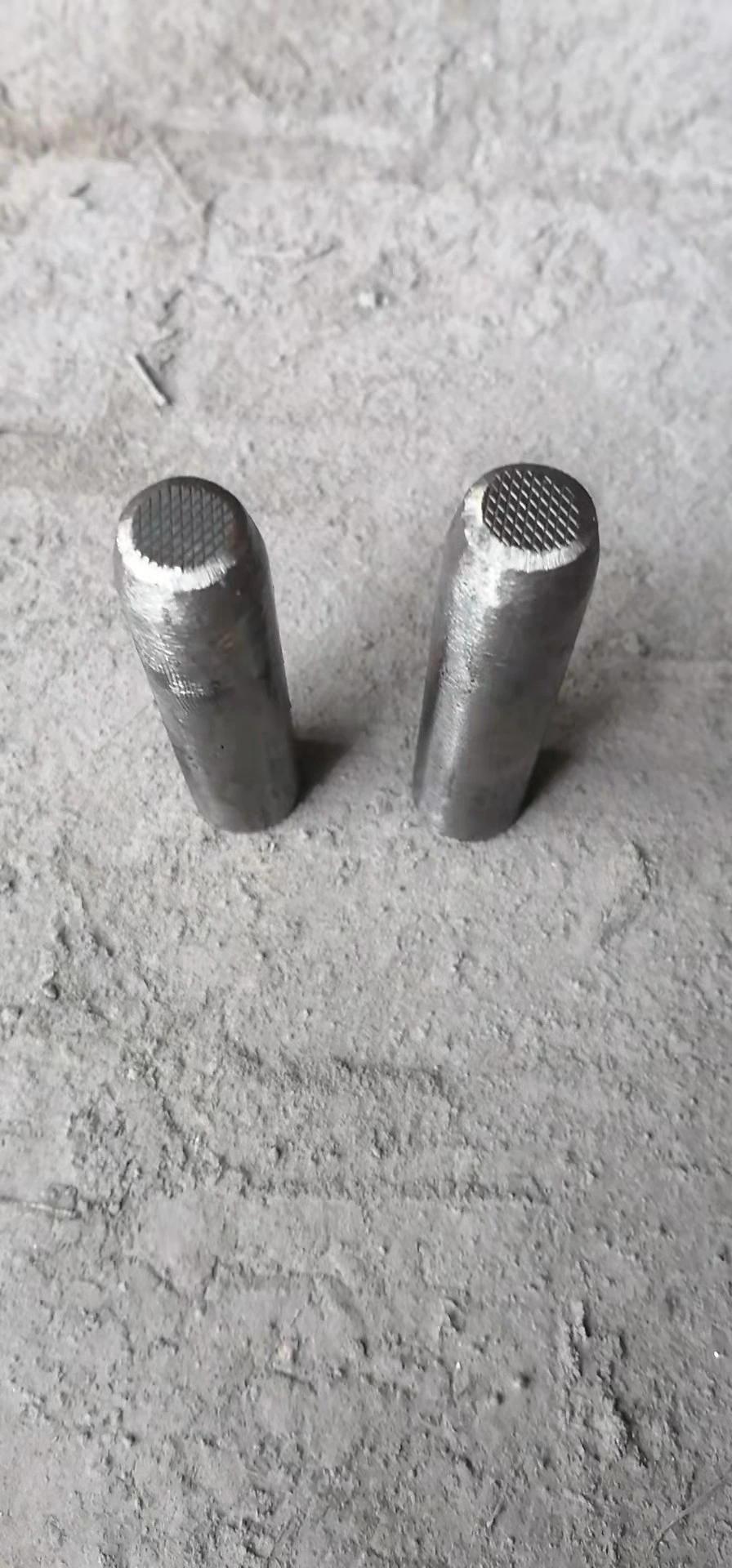

Punch Pin | Punch nail head. |

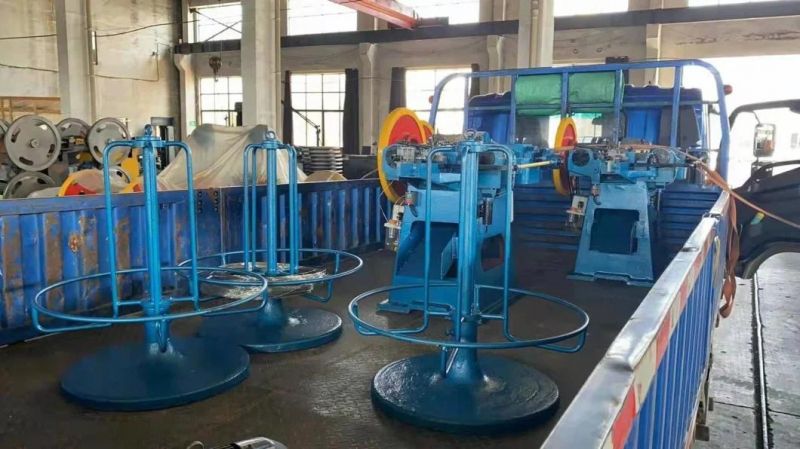

Wire-off rack

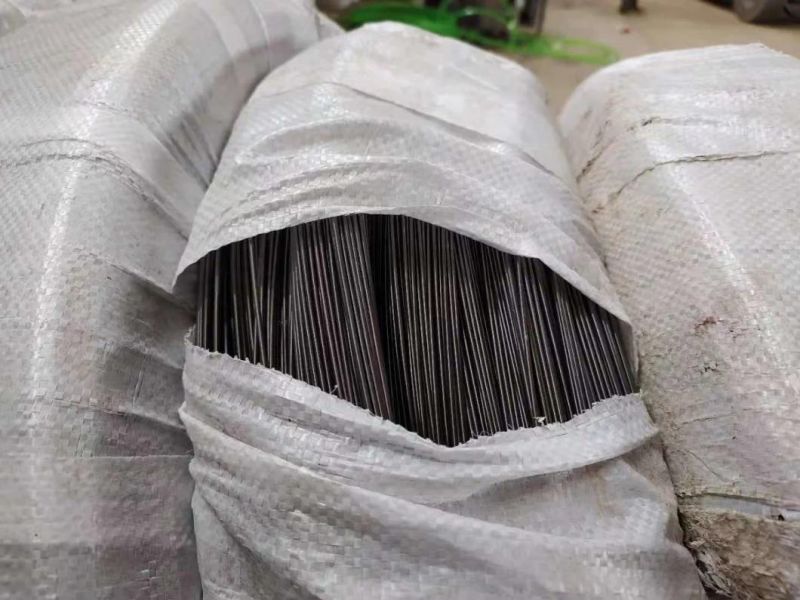

Nail material- steel wire
