• Model NO.：ZD-2D-8S
• Certification：ISO, CE
• Suitable Wire Diameter：5-8mm
• Motor：12.5kw
• Capacity：12-30PCS,Mintue
• Transport Package：Strong Standard Export Wooden Case
• Specification：2400*1400*2000mm
• Trademark：Greatcity
• Origin：China
• HS Code：8474802000
• Production Capacity：3sets,Month
• Package size per unit product：2820.00cm * 1420.00cm * 2020.00cm
• Gross weight per unit product：1400.000kg

Basic Info.

Model NO. ZD-2D-8S Certification ISO, CE Suitable Wire Diameter 5-8mm Motor 12.5kw Capacity 12-30PCS/Mintue Transport Package Strong Standard Export Wooden Case Specification 2400*1400*2000mm Trademark Greatcity Origin China HS Code 8474802000 Production Capacity 3sets/Month

Packaging & Delivery

Package size per unit product 2820.00cm * 1420.00cm * 2020.00cm Gross weight per unit product 1400.000kg

Product Description

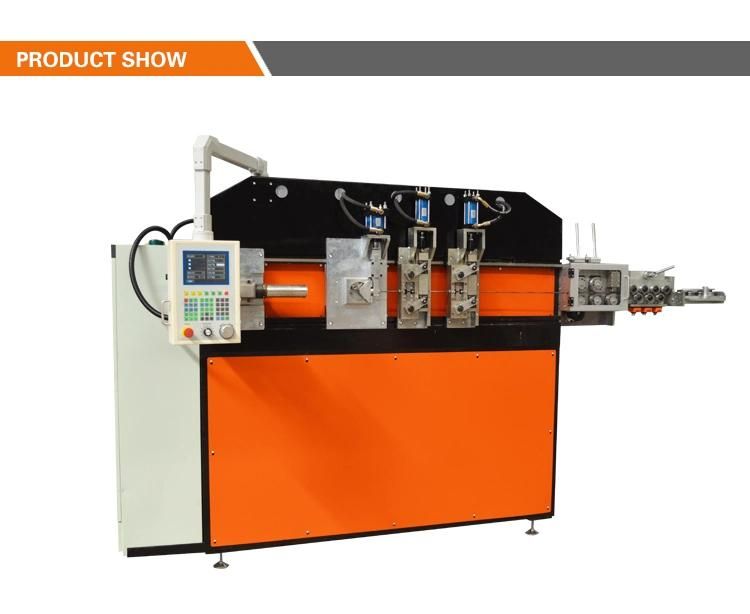

Seamless Paint Roller Household Use Wall Decorative Brush Handle making machine

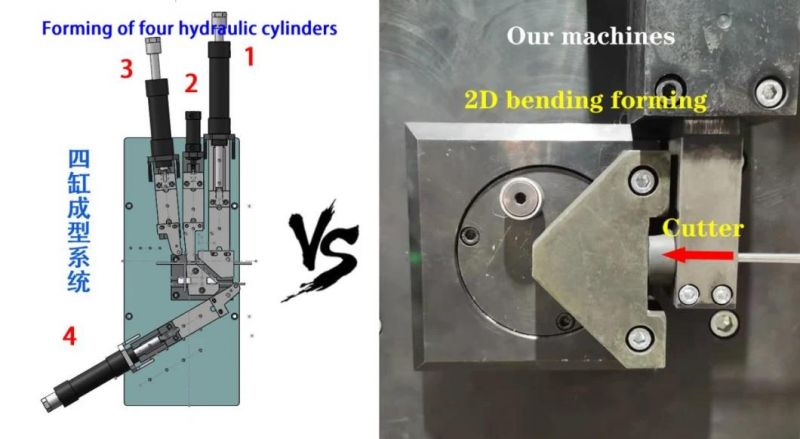

The ZD-2D-8S Paint Roller Handle Making Machine is a patented product designed and developed by our factory. At present, most roller brush holder machines need to use forming molds. After years of research and development and improvement, the forming adopts the design principle of 2D wire forming machine. The forming of the roller brush bracket no longer uses a forming mold. The numerical control operation is simple and easy to learn, and the forming only needs to be controlled by CNC. The controller can save 10,000 formulas, and the production can be completed by directly calling the formula. For modular design, the equipment is equipped with a ruler, and the size of the roller brush holder to be formed can be adjusted according to the ruler. Flattening, chamfering, threading, and cutting can be done in one go, saving the operation time of changing the mold, which can be called a roller. A universal machine for brush holder forming, our roller brush holder forming machine saves labor and is a good helper for you to get rich





Paint Roller Handle Making Machine advantages:

1. The new design uses the lever principle to save time and effort and reduce mold loss. The mold is easier to disassemble and assemble. The traditional design mold needs to be disassembled as a whole, but the new design flattening mold only needs to remove 8 screws, which is easier to disassemble and replace, and the mold can be replaced according to the diameter of the wire, not limited by the diameter of the wire ( 5-8mm).2.The electric bending head replaces the forming mold, which can be bent without a mold. One machine can form all types of roller brush brackets in the market, saving the mold cost.


2.The electric bending head replaces the forming mold, which can be bent without a mold. One machine can form all types of roller brush brackets in the market, saving the mold cost.

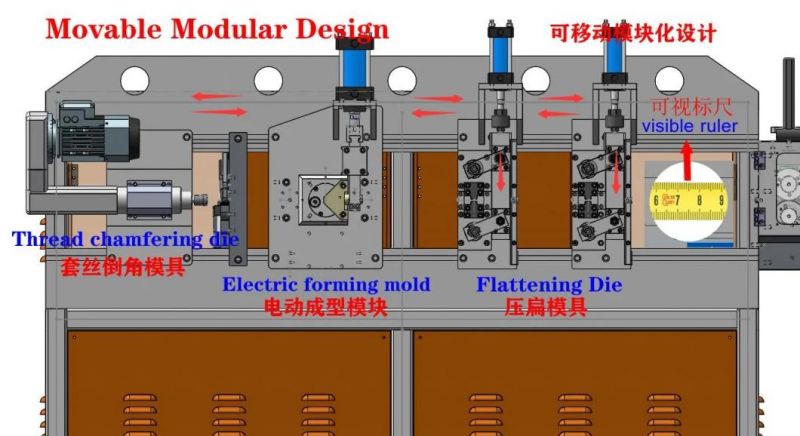

3:(1). The electric forming mold can freely form various shapes of roller brush brackets. (2). Movable modular design All modules can be debugged and formed according to the visual scale. (3). This machine has perfected all the necessary elements of forming, chamfering, threading, flattening and cutting required for the forming of all roller brush brackets. One machine can make all types of roller brushes on the market.


Paint Roller Handle Making Machine Parameter

Product name	Paint roller handle forming machine
model	ZD-2D-8S
Processing wire diameter	5-8mm
Formable shape	All types of brackets on the market, no need for forming molds
number of axes	2
wire feeder	2
Wire Feeding Accuracy	±0.1mm
Number of stored recipes	10000
Forming Control System	CNC
wire feed motor	3.8 kw
Folding line motor	3.8 kw
Sleeve motor	0.75 kw
Oil pump motor	4.0 kw
total power	12.35 kw
Air pump air pressure	0.8mpa
Voltage	380V
Dimensions	2400*1400*2000mm
weight	1300kg

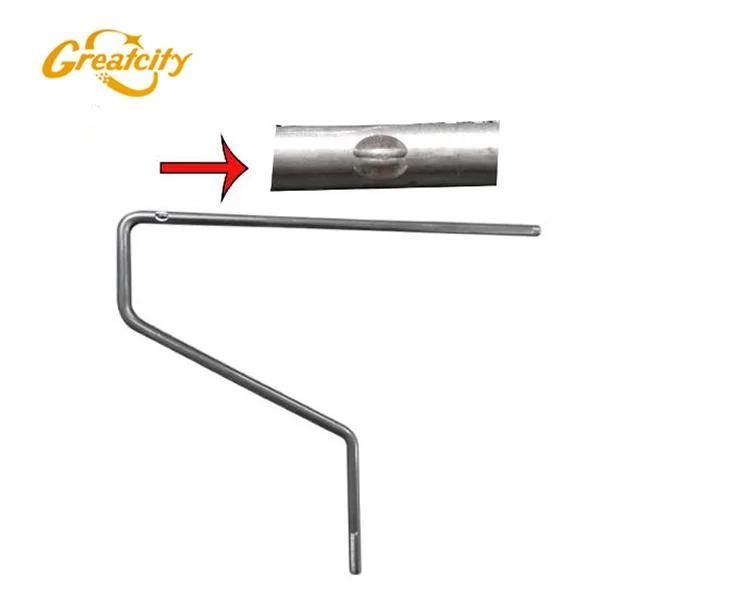

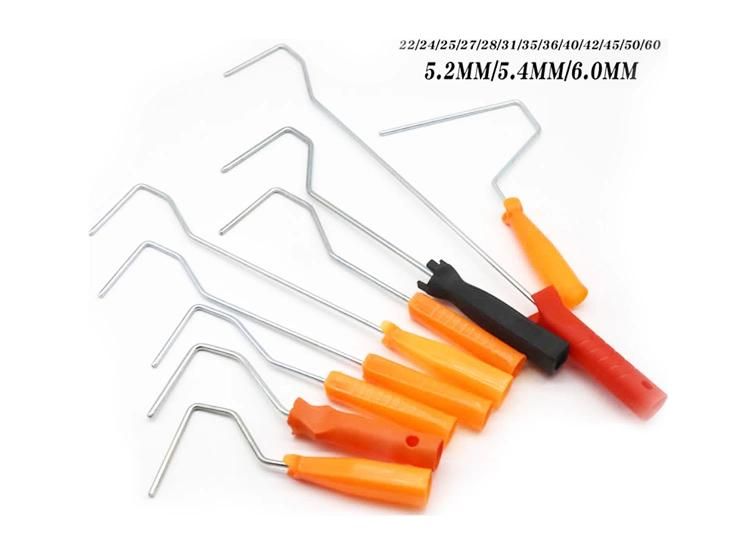

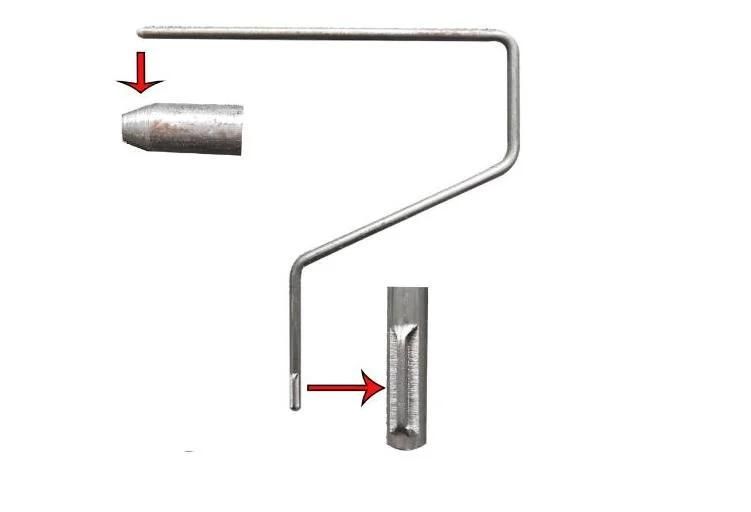

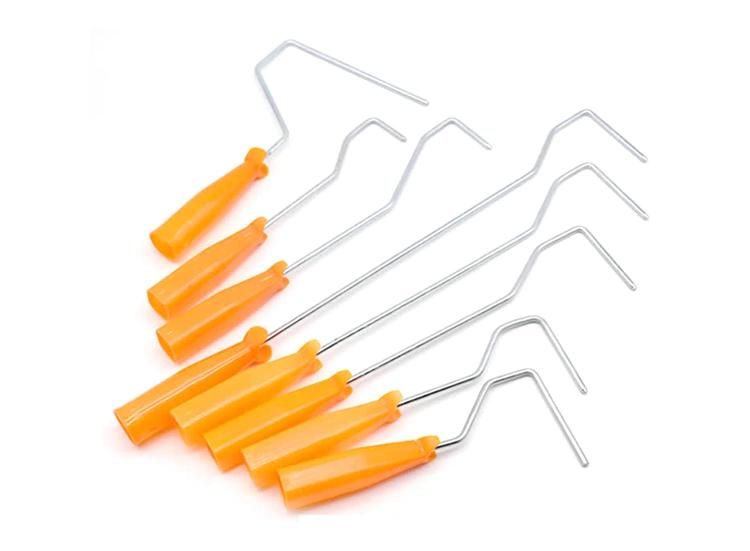

Paint Roller Handle Making Machine workpiece
