• Model NO.：LKX208 308
• Axis：2-3
• Condition：New
• Certification：Ce
• Transport Package：Vacuum Packed & Wooden Case
• Specification：1000*1000*1700MM
• Trademark：LIKEXING
• Origin：Made in China
• HS Code：84633000
• Production Capacity：500sets,Year

Basic Info.

Model NO. LKX208 308 Axis 2-3 Condition New Certification Ce Transport Package Vacuum Packed & Wooden Case Specification 1000*1000*1700MM Trademark LIKEXING Origin Made in China HS Code 84633000 Production Capacity 500sets/Year

Product Description

PRODUCT DESCRIPTION

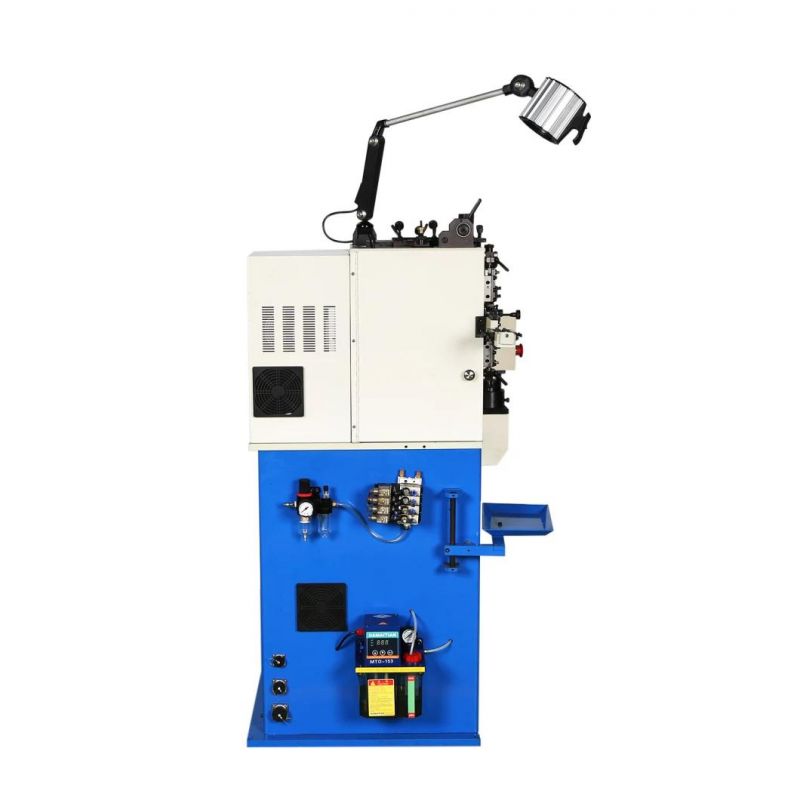

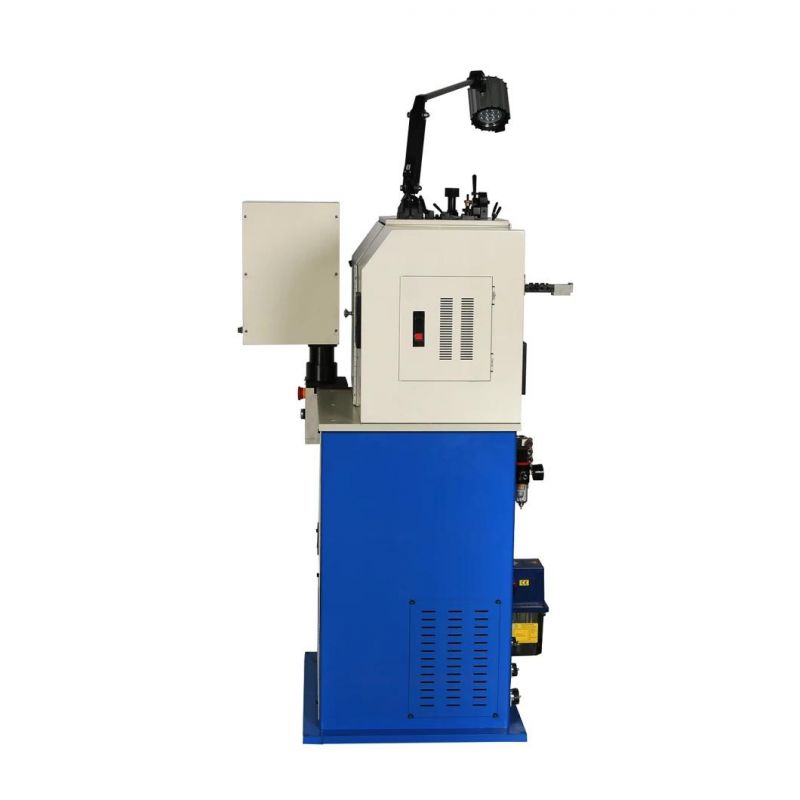

LKX208 308 Computer Compressing Spring Machine is equipped with  imported Japanese Servo Motor, equipped with torsion device machine if you need.

Feeding axis, Cam axis, and Pitch axis,which can work independently and synchronously.The third axis is the Pitch axis which can make the spring more easily to save the testing time and cost of the moulds


High synchronization accuracy, Power-full and precise in wire feeding.

Suitable for producing Compression spring, torsion spring ect. parts.

8inch digital touch screen with touch buttons, easy to use.

In High speed processing, when the motor is voerheating, the cumputer can detect and slow down to protect the motor itself automatically.





TECHNICAL PARAMETER

Model	LKX208
Wire diameter (mm)	Ø0.1~Ø0.8
Axis Count	2 (3)Axis
Max feeding Length	unlimited
Servo motor of wire feed (kw)	0.75
Servo motor of cam (kw)	0.75
The Fastest Speed	600pcs/min
The Feeding Wire Speed	1200m/min
Max  Outside Diameter	20mm
Machine size(mm)	900×850×1600
Weight (Kg)	380
Power	200V 3-Phase

FAQ:
Q: What's the Min. order?
A: One set.

Q: What is the payment term?
A: The payment term is 30% deposit as PO confirmed and the 70%  after the shipment. We also accept other payment term according to the agreement.

Q:What's the delivery time?
A:Normally the delivery time of the machine is 30days after receicing deposit.But it depends on the machine model. Some of them could be shipped within several days, because normal machine type is current stock.
