• Model NO.：LKX208
• Certification：Ce
• Automation：Automatic
• Trade Mark：Li Ke Xing
• Max. O.D.：20mm
• Transport Package：Wooden Case
• Specification：1000*1000*1700MM
• Trademark：LIKEXING
• Origin：Made in China
• HS Code：84633000
• Production Capacity：500sets,Year

Basic Info.

Model NO. LKX208 Certification Ce Automation Automatic Trade Mark Li Ke Xing Max. O.D. 20mm Transport Package Wooden Case Specification 1000*1000*1700MM Trademark LIKEXING Origin Made in China HS Code 84633000 Production Capacity 500sets/Year

Product Description

PRODUCT DESCRIPTION

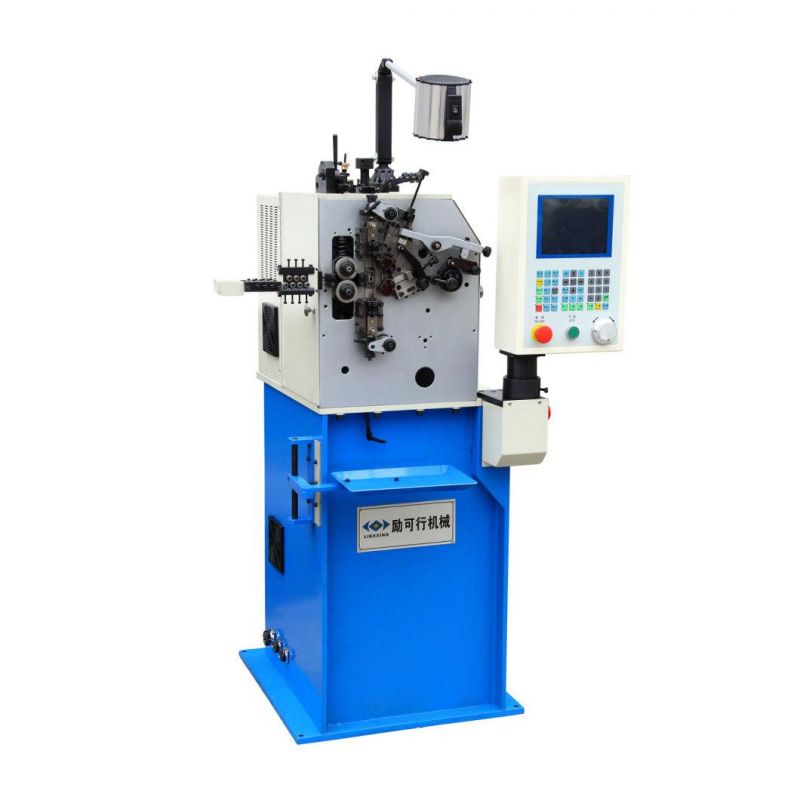

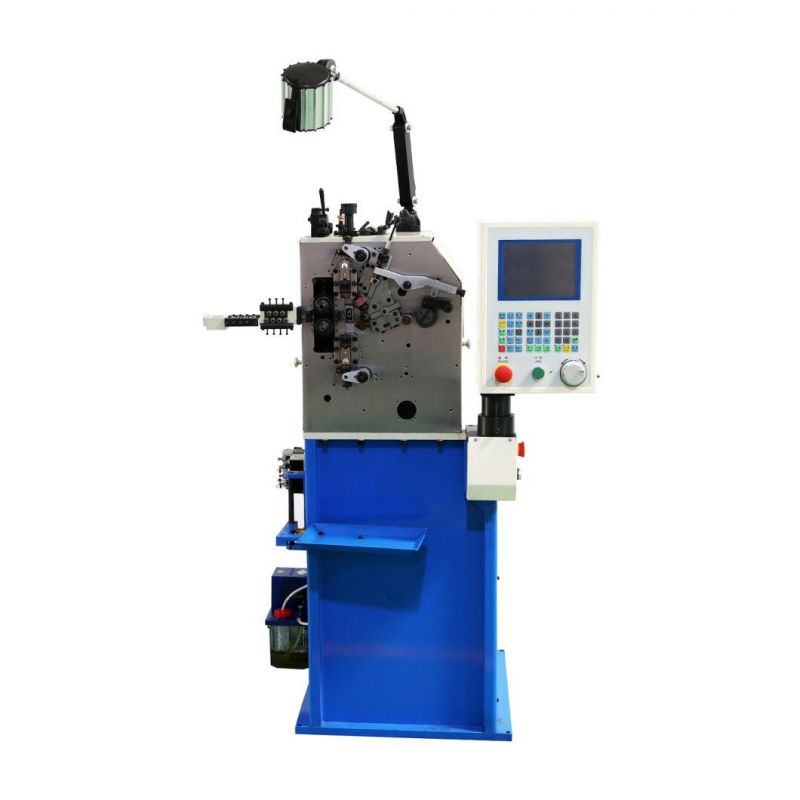

LKX208 Computer Compressing Spring Machine is equipped with  imported Japanese Servo Motor, including cam axis and feeder axis.
High synchronization accuracy, Power-full and precise in wire feeding.
Suitable for producing Compression spring, torsion spring ect. parts.
8inch digital touch screen with touch buttons, easy to use.
In High speed processing, when the motor is voerheating, the cumputer can detect and slow down to protect the motor itself automatically.
Can reduce or increase the production capacity at any time.

TECHNICAL PARAMETER

Model	LKX208
Wire diameter (mm)	Ø0.1~Ø0.8
Axis Count	2 Axis
Max feeding Length	unlimited
Servo motor of wire feed (kw)	0.75
Servo motor of cam (kw)	0.75
The Fastest Speed	600pcs/min
The Feeding Wire Speed	1200m/min
Max  Outside Diameter	20mm
Machine size(mm)	900×850×1600
Weight (Kg)	380
Power	200V 3-Phase
