• Model NO.：LKX208 308
• Trade Mark：Li Ke Xing
• Automation：Automatic
• Transport Package：Wooden Case
• Specification：1000*1000*1700MM
• Trademark：LIKEXING
• Origin：Made in China
• HS Code：84633000
• Production Capacity：500sets,Year

Basic Info.

Model NO. LKX208 308 Trade Mark Li Ke Xing Automation Automatic Transport Package Wooden Case Specification 1000*1000*1700MM Trademark LIKEXING Origin Made in China HS Code 84633000 Production Capacity 500sets/Year

Product Description

PRODUCT DESCRIPTION

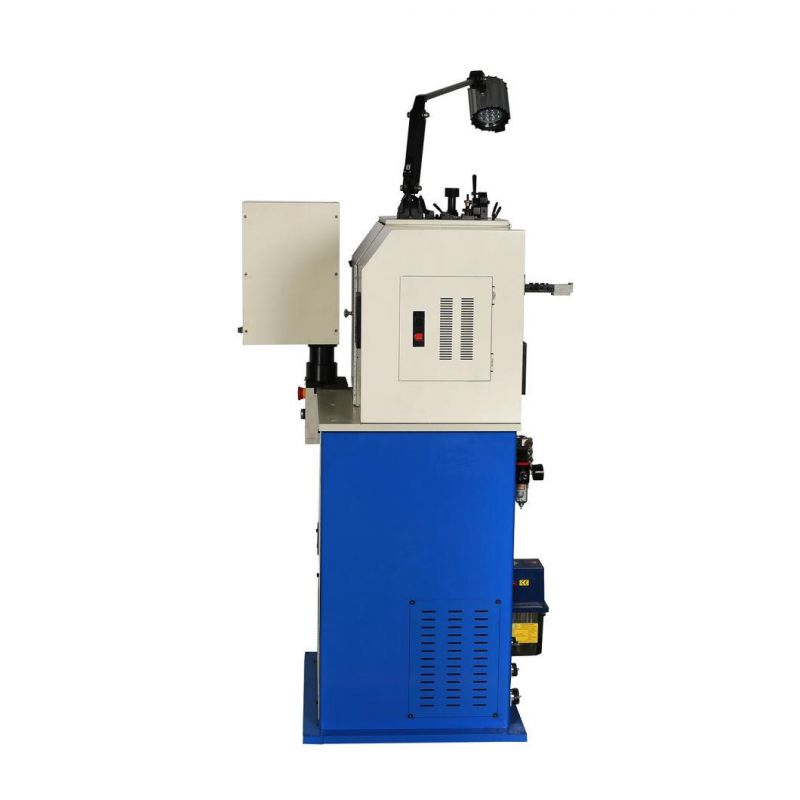

LKX208 Computer Compressing Spring Machine is equipped with  imported Japanese Servo Motor, equipped with torsion device machine.  Production torsion spring coiling machine is to expertly produce kinds of coiling and torsion springs fully automatically. It's suitable for wire size from 0.1-0.8mm.

High synchronization accuracy, Power-full and precise in wire feeding.

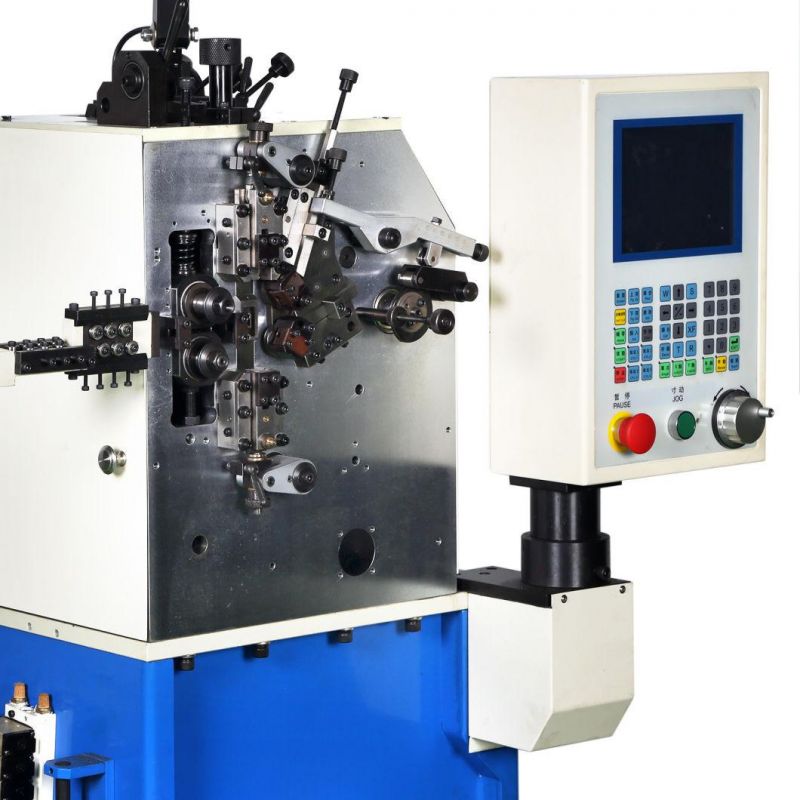

8inch digital touch screen with touch buttons, easy to use.

In High speed processing, when the motor is voerheating, the cumputer can detect and slow down to protect the motor itself automatically.


TECHNICAL PARAMETER

Model	LKX208
Wire diameter (mm)	Ø0.1~Ø0.8
Axis Count	2 Axis
Max feeding Length	unlimited
Servo motor of wire feed (kw)	0.75
Servo motor of cam (kw)	0.75
The Fastest Speed	600pcs/min
The Feeding Wire Speed	1200m/min
Max  Outside Diameter	20mm
Machine size(mm)	900×850×1600
Weight (Kg)	380
Power	200V 3-Phase
