• Model NO.：BX-1530
• Layout：Horizontal
• Cutting Material：Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
• Automatic Grade：Automatic
• Power Source：Electric
• Cutting Mode：Plasma Cutting
• Machine Name：CNC Portable Cutting Machine
• Cutting Speed：20-3500 mm,Min
• Cutting Thickness：1-150mm
• Cutting Precision：±0.5mm
• Height Regulating Distance：≤100 mm
• Height Regulating Device：Arc Voltage Height
• Cutting Surface Roughness：12.5μm≤ra≤25μm
• General Nesting Software：Starcam
• Plasma Cutter：Optional (Seanior, Hwayuan, Hypertherm)
• Transport Package：Wooden Box Package
• Specification：3600*270*205mm
• Trademark：seanior
• Origin：Dezhou, Shandong Province
• HS Code：84564010
• Production Capacity：200 One Month
• Package size per unit product：360.00cm * 30.00cm * 30.00cm
• Gross weight per unit product：130.000kg

Basic Info.

Model NO. BX-1530 Layout Horizontal Cutting Material Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel Automatic Grade Automatic Power Source Electric Cutting Mode Plasma Cutting Machine Name CNC Portable Cutting Machine Cutting Speed 20-3500 mm/Min Cutting Thickness 1-150mm Cutting Precision ±0.5mm Height Regulating Distance ≤100 mm Height Regulating Device Arc Voltage Height Cutting Surface Roughness 12.5μm≤ra≤25μm General Nesting Software Starcam Plasma Cutter Optional (Seanior, Hwayuan, Hypertherm) Transport Package Wooden Box Package Specification 3600*270*205mm Trademark seanior Origin Dezhou, Shandong Province HS Code 84564010 Production Capacity 200 One Month

Packaging & Delivery

Package size per unit product 360.00cm * 30.00cm * 30.00cm Gross weight per unit product 130.000kg

Product Description

High Speed Factory Sale Portable CNC Iron Plasma and Flame Cutting Machine
Small size, great capability.High precision, low price. You buy not because it's cheap, you buy because it fits.










 Do you want to cut something great and improve your efficiency with CNC cutting machine?
Are you looking for the high quality plasma/flame cutting machine to cut your metal sheet or pipe and tube at best price?
Are you finding German or American suppliers' offer SO HIGH?
How about a person helps you to solve all the problems and leave you to sit back and relax?
Product Feature

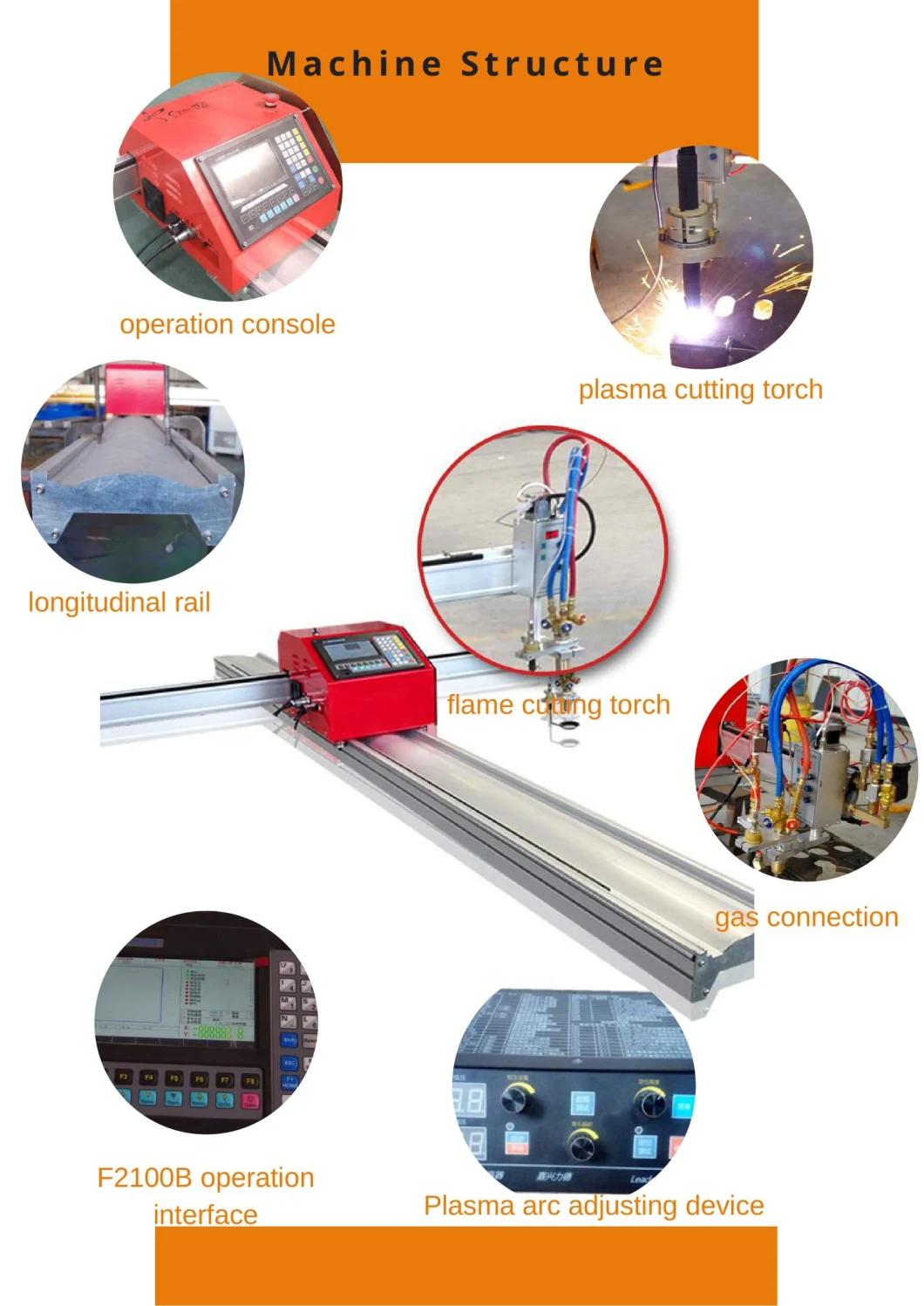

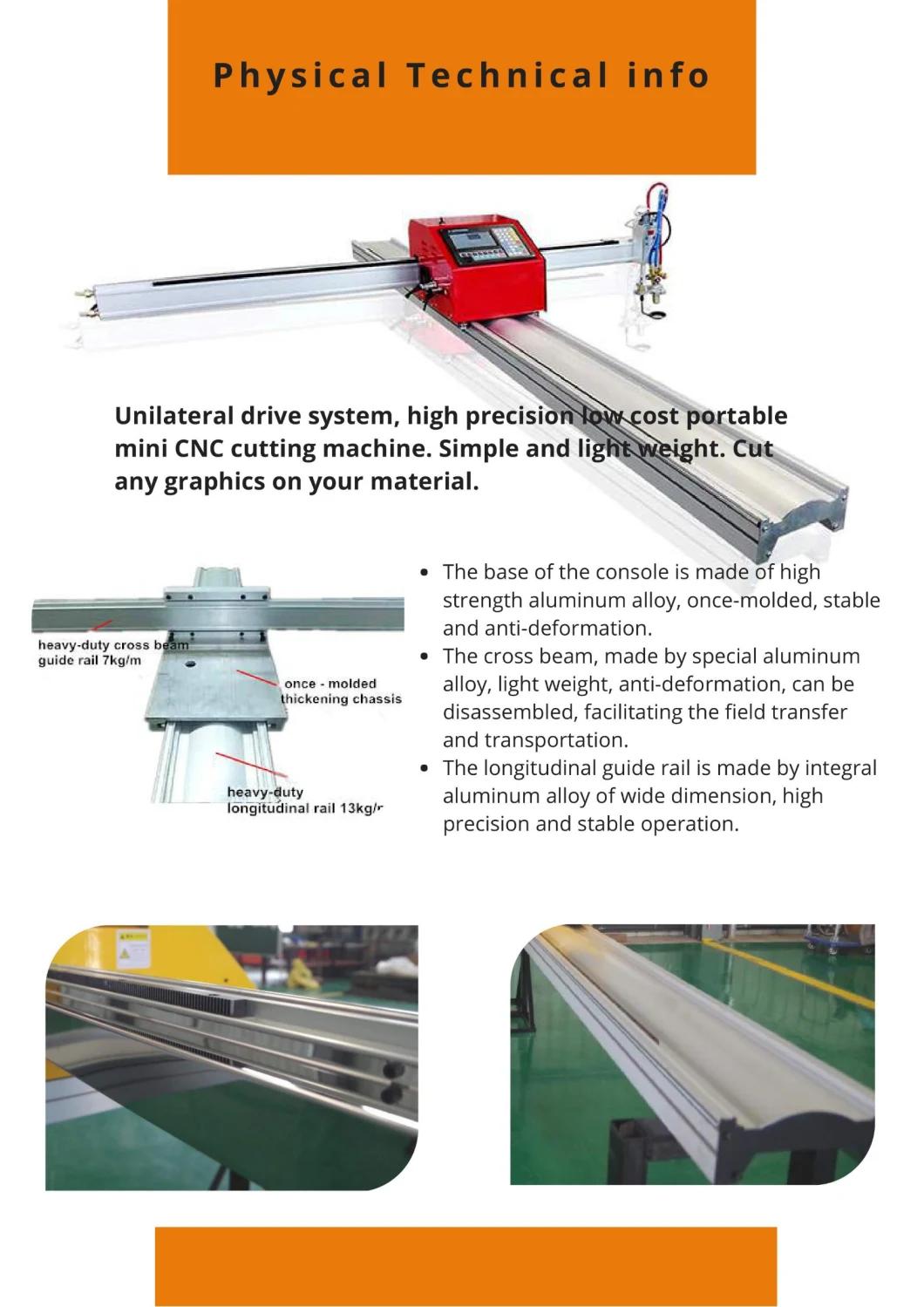

Handyman is a single drive portable CNC cutting machine, which can cut any graphics you need with wide track structure design.
Plasma cutting is a kind of processing method that makes use of the heat of high temperature plasma arc to melt (and vaporize) the metal at the cut of workpiece and eliminate the molten metal by the momentum of high speed plasma to form the notch. Flame cutting is used to cut carbon steel by the high temperature generated during the combustion of iron oxide , and the flame cutting torch is designed to provide sufficient oxygen to the combustion iron oxide to ensure a good cutting effect .

Product Parameters


Model	Seanior-Handyman
Power source	machine:AC220V/50hz palasma cutter: AC380V/50hz
Effective cutting width	1500mm
Effective cutting length	3000mm /6000mm ( accept tailor-made length)
Cutting process	plasma/ flame
Cutting thickness(flame)	6.0-150mm (oxygen+acetylene or propane)
Cutting thickness(plasma)	0.5-40mm Depending on the customer's plasma power supply
Cutting speed	20-3500mm/min (max.4000mm/min)
Cutting accuracy	±0.5m
Torch lifting distance	≤80mm
Gas pressure	Max 0.1Mpa
Oxygen pressure	Max 0.7Mpa
Applicable gas type	Oxygen and propane or acetylene
Working interface	Chinese and English (other languages can becustomized)
Duty cycle	24hours
CAD drawing conversion	nesting cut code
Processing Materials	carbon steel, stainless steel, aluminum sheets, galvanized sheets, Titanium plates

Product advantage

The plasma cutting speed is high, especially during common carbon steel sheet cutting, the plasma cutting speed is 5-6 times that of flame cutting. Low price,you still need to expect best service,Cut mild steel with flame process.Cut high carbon steel, stainless steel, and other non-ferrous metal with Plasma processSmall size, great capability.High precision, low price. You buy not because it's cheap, you buy because it fits.

Applicable Industry

Plasma cutting machine are wide used in automobiles, pressure vessels, chemical machinery, nuclear industry, general machinery, engineering machinery, steel structure, and other industries.

Applied MaterialsSuitable for low carbon steel, copper plate, iron plate, aluminum plate, galvanized plate, titanium plate and other metal plates.

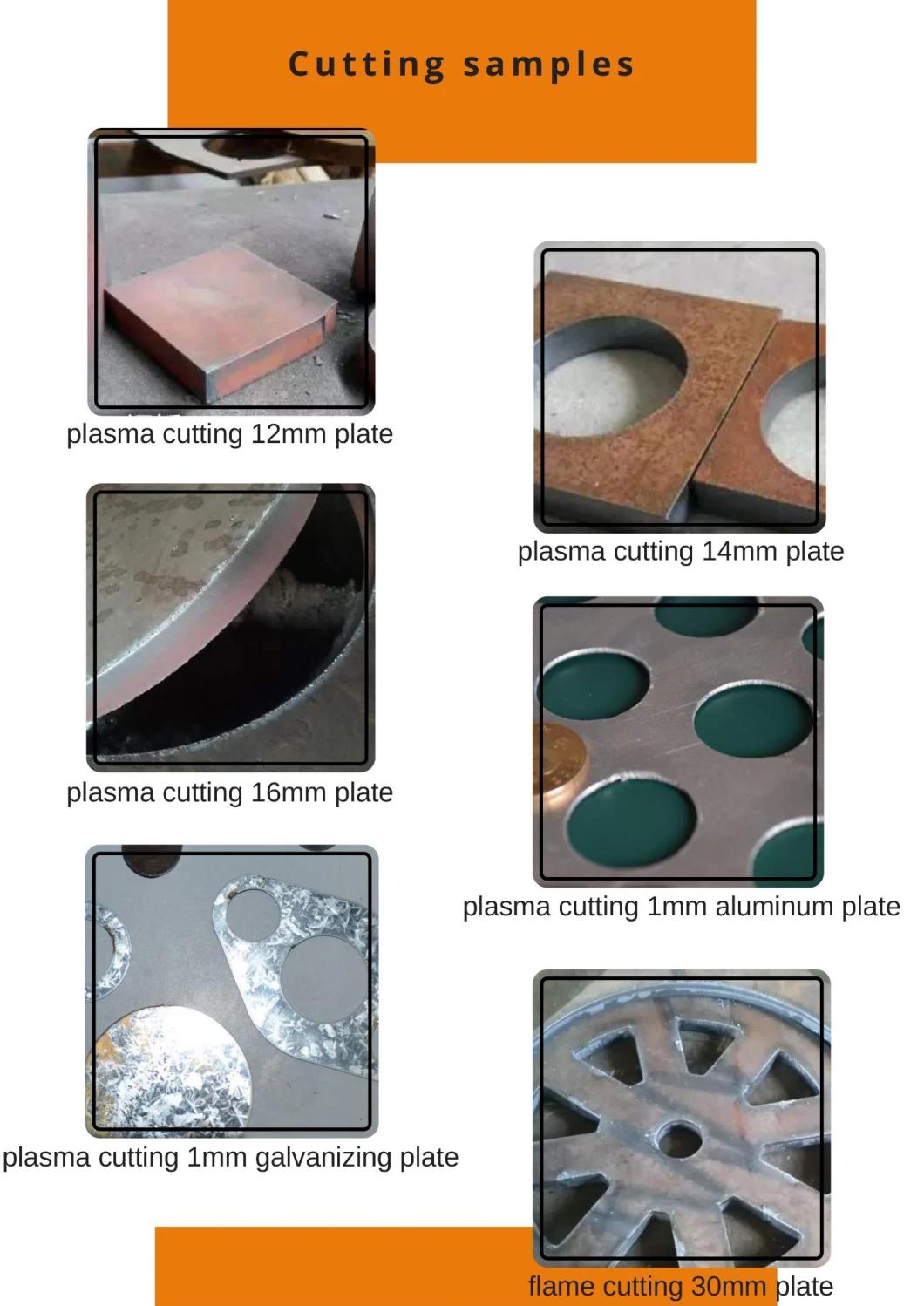

Cutting Samples

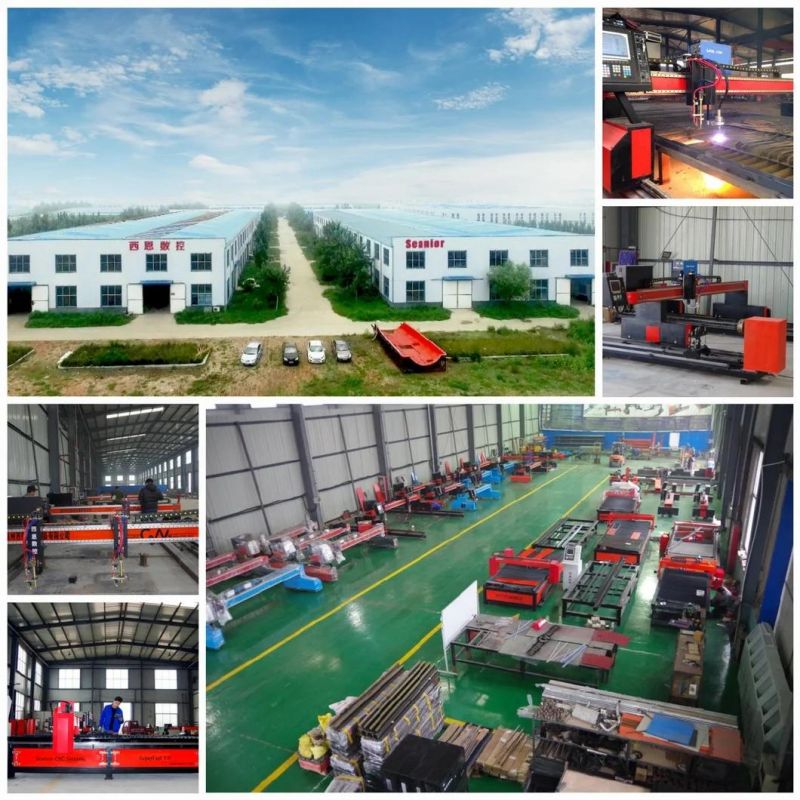

Seanior CNC Systems

Established in2014, Seanior has enjoyed an expanding growth successfully and become a dynamic company focusing on building CNC cutting machines applied in different industries.
Seanior was first imagined as a brand in mind with a man named Sean working with our machine effortless and confidently .We aim to make great machines available to workshops strive for high efficiency and low cost.
  Seanior Service

Our technical team is your excellent cutting performance guarantee and our perfect service plan solve all your problems.

1. 12 months warranty for the whole machine.
2. Technical support by phone, email 24/7
3. English version manual and operation tutorial video
4. Engineer available to service machinery overseas.
  CERTIFFICATE
